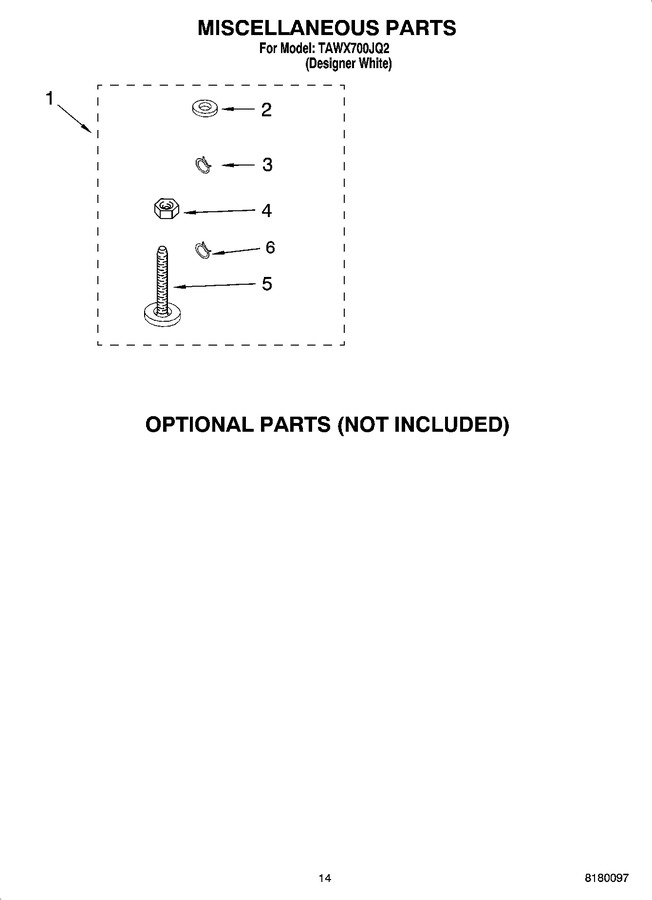

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 285654 | Miscellaneous Parts Bag (Replaces:3976263) |  |
|||
| 2 | WP16123 | Washer, Inlet Hose (1-1/16 X 5/8) (4) (Replaces:3976300) | |
|||
| 3 | WP356138 | Clamp, Hose (Replaces:3366912) | |
|||
| 4 | WP3359452 | Nut, Lock (3/8-16) | |
|||
| 5 | WPW10001130 | Foot, Front (2) (Replaces:389102) | |
|||
| 6 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) | |
|||
| 367031 | Drain Protector | |
||||
| WP285195 | Sealer, Gasket (20 Fl. Oz.) (6 Ml) | |
||||
| 285320 | Siphon Break Kit | |
||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) | |
||||
| WP3357331 | Clamp, Hose (Replaces:3366913) | |
||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) | |
||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White | |
||||
| 350572 | Oil, Gearcase (16 Oz.) | |
||||
| 285208 | Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin) | |
||||
| N/A | Accessory Parts | |
||||
| 63580 | Fabric Dispenser | |
