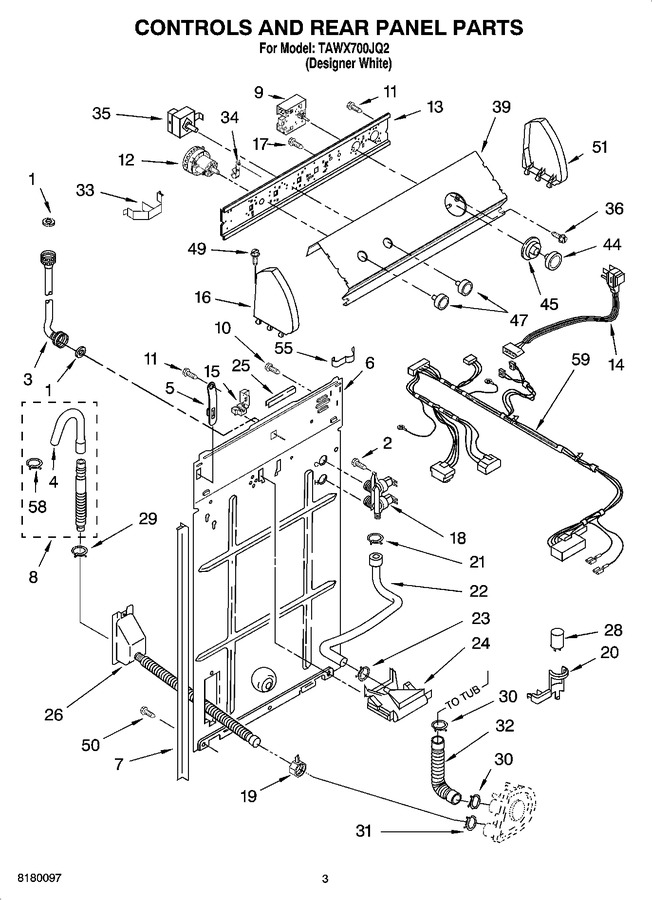

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces:3976300) |  |
|||
| 2 | WP9740848 | Screw | |
|||
| 3 | WP89503 | Hose, Water Inlet (2) ((blue Coupler)) (Replaces:3949374) | |
|||
| 4 | WP3357027 | Nozzle-drain Hose | |
|||
| 5 | WP8568314 | Strap, Console (2) (Replaces:8318255) | |
|||
| 6 | WP3357978 | Panel, Rear | |
|||
| 7 | WP62747 | Pad, Rear Panel | |
|||
| 8 | 285666 | Hose, Drain (9`- 9``) (not Included) (Replaces:661577) | |
|||
| 285664 | Hose, Drain (4`- 8``) (Replaces:3951609) | |
||||
| 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces:3357090) | |
||||
| 9 | WP8541939 | Timer, Control (60 Hz.) (motor Not A Service Part) | |
|||
| 10 | WP3351614 | Screw, Ground | |
|||
| 11 | WP90767 | Screw, 8-18 X 3/8 | |
|||
| 12 | W10337780 | Switch, Water Level (Replaces:3366847) | |
|||
| 13 | WP3948608 | Bracket, Control | |
|||
| 14 | W10820044 | Cord, Power (includes Item 15) (Replaces:661661) | |
|||
| 15 | 285777 | Strain Relief, Power Cord (Replaces:3952821) | |
|||
| 16 | 279960 | Cap, End (l.h.) (Replaces:8274437) | |
|||
| 17 | 3400073 | Screw, Ground | |
|||
| 18 | 285805 | Valve, Water Mixing (Replaces:3955673) | |
|||
| 19 | 3976395 | Clamp, Hose | |
|||
| 20 | 8318046 | Clip, Capacitor (Replaces:8318201) | |
|||
| 21 | 370451 | Clamp, Hose | |
|||
| 22 | WP3357328 | Hose, Vacuum Break | |
|||
| 23 | 371503 | Clamp, Hose | |
|||
| 24 | WP3347034 | Break, Vacuum | |
|||
| 25 | 3367669 | Edge Protector (Replaces:303294) | |
|||
| 26 | WPW10358149 | Hose-corrugated Assembly (Replaces:8317940) | |
|||
| 28 | WP8572717 | Capacitor, Motor Start (Replaces:661606) | |
|||
| 29 | WP356138 | Clamp, Hose (Replaces:3366912) | |
|||
| 30 | WP616099 | Clamp, Hose (Replaces:3363366) | |
|||
| 31 | WP285655 | Clamp, Hose (Replaces:8317496) | |
|||
| 32 | 285871 | Hose, Pump To Tub (Replaces:3951449) | |
|||
| 33 | WP8055003 | Clip, Harness & Pressure Hose | |
|||
| 34 | 8317975 | Retainer, Harness | |
|||
| 35 | WP661614 | Switch, Water Temperature | |
|||
| 36 | WP3400818 | Screw, Timer Mounting | |
|||
| 39 | 3954249 | Panel, Console | |
|||
| 44 | W10807860 | Knob, Timer (Replaces:3951026) | |
|||
| 45 | WP3957841 | Dial, Timer (Replaces:3950762) | |
|||
| 47 | WP3957796 | Knob, Control (Replaces:3950759) | |
|||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) | |
|||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces:62863) | |
|||
| 51 | 279960 | Cap, End (r.h.) (Replaces:8274434) | |
|||
| 55 | 8528351 | Clip, Harness (Replaces:3347812) | |
|||
| 58 | WP3357331 | Clamp, Drain Hose (Replaces:3366913) | |
|||
| 59 | 3956519 | Harness, Wiring (for Detail See Pages 9 & 10) | |
