| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 3349557 | Clip, Harness |  |
|||
| 2 | 388498 | Clip, Harness | |
|||
| 3 | 8528351 | Clip, Harness (Replaces:3347812) | |
|||
| 4 | 8559320 | Clip, Harness (Replaces:3352501) | |
|||
| 5 | WP90016 | Clip, Harness | |
|||
| 6 | 8281256 | Clip, Harness (Replaces:3390496) | |
|||
| 7 | WP389379 | Retainer, (suds Models) | |
|||
| 8 | 352090 | Timer, Block Disconnect (white) | |
|||
| 9 | W10876590 | Timer, Block Disconnect (black) (Replaces:352089) | |
|||
| 10 | WP62889 | Receptacle, Terminal (3-way) (lid Switch) (use Term. 94613 Or 94614) | |
|||
| 11 | 353424 | Plug, Terminal (3-way) (power Cord) (use Term 94613) | |
|||
| 12 | WP62505 | Block, Disconnect (motor 2 Speed) (use Term. 352088) | |
|||
| 13 | 3348075 | Block, Disconnect (motor 3 Speed) (use Term. 94613 Or 94614) | |
|||
| 14 | 3347243 | Block, Disconnect (use Term. 352088) | |
|||
| 15 | 63523 | Protector | |
|||
| 16 | 717252 | Connector (2-way) (use Term. 94614) | |
|||
| 17 | 387566 | Plug, Terminal (4-way) (power Cord) (use M3 Screws) | |
|||
| 18 | 3352944 | Clip, Harness | |
|||
| 19 | 3390423 | Block, Disconnect (12-way) (timer) (use Term. 94613) | |
|||
| 20 | 3347730 | Receptacle, (6-way) (use Term. 94613) | |
|||
| 21 | 388818 | Plug, Terminal (12-way) (use Term. 94613 Or 94614) | |
|||
| 22 | 3369366 | Timer, Block Disconnect (black) (amp) (use Term. 3369365) | |
|||
| 23 | 3349494 | Connector, Etc | |
|||
| 24 | 60687 | Connector, Relay (use Term. 308569) | |
|||
| 25 | 3407125 | E.t.c. Control | |
|||
| 26 | WP2172937 | Connector (t.p.a.) (3-circuit) (lid Switch) (use Term. 3948619 Or 3948620.) (Replaces:3948617) | |
|||
| 27 | WP3360056 | Connector (t.p.a) (3-circuit) (pressure Switch) (use Term. 3948619 Or 3948620.) | |
|||
| 28 | 3354925 | Block, Connector (cold Valve) (use Term. 693217) | |
|||
| 29 | 3354926 | Block, Connector (hot Valve) (use Term. 693217) | |
|||
| 30 | 3948615 | Connector (t.p.a.) (6-circuit) (temp. Switch) (use Term. 3948619 Or 3948620.) | |

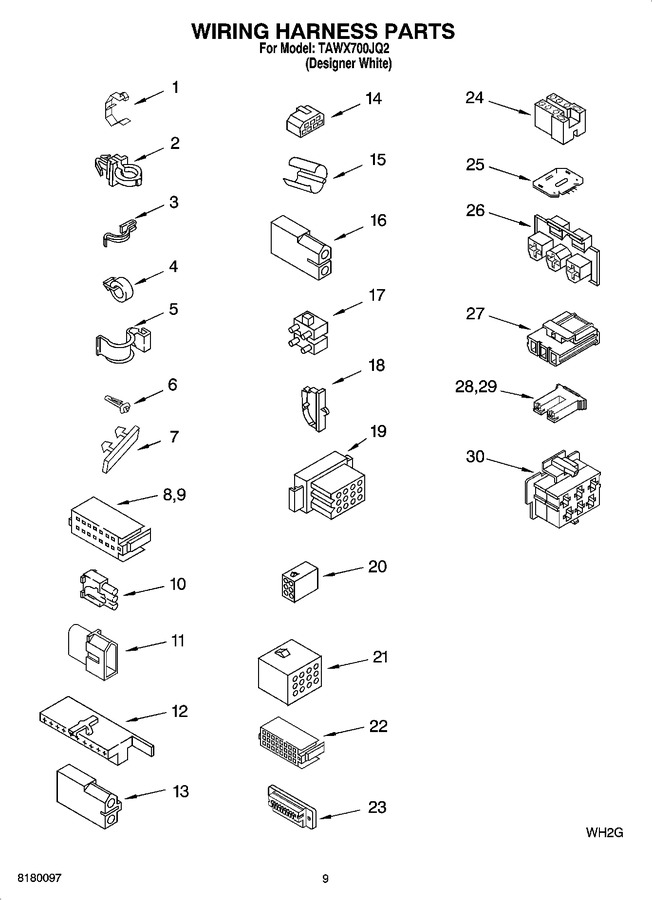

View Diagram in Separate Window
