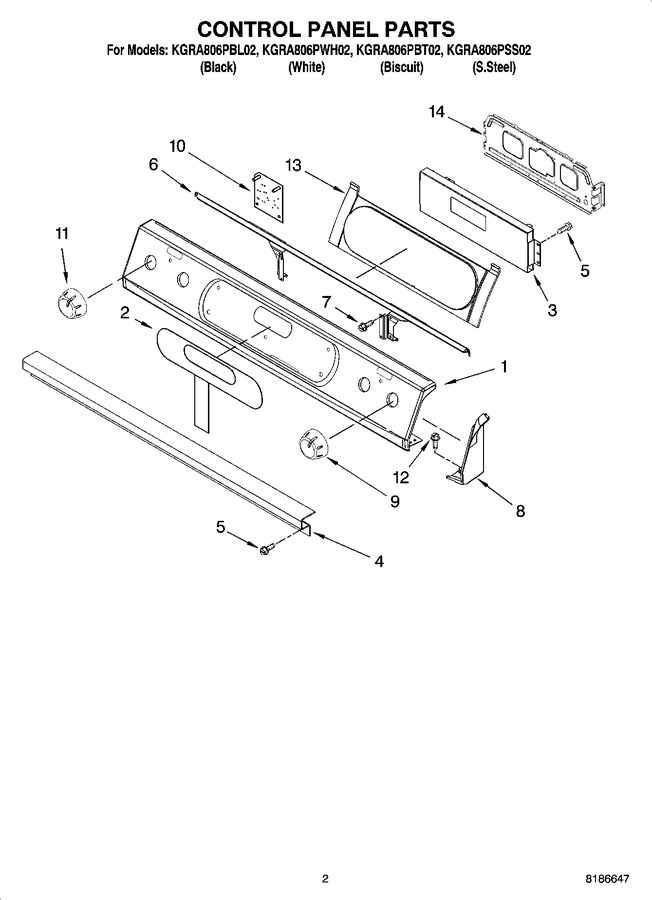

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 4453936BT | Control Panel (biscuit) | ||||
WP4453936BL | Control Panel (black) | |||||
WP4453936SS | Control Panel (s.steel) | |||||
WP4453936WH | Control Panel (white) | |||||
2 | 9756559WH | Membrane Switch (white) | ||||
WP9756559BT | Membrane Switch (biscuit) | |||||
WP9756559BL | Membrane Switch (black) | |||||
WP9756559ES | Membrane Switch (etched Stainless) | |||||
3 | WP9762810 | Control, Migration | ||||
4 | 9757119 | Bracket, Console | ||||
5 | WP3196557 | Screw (Replaces:3196537) | ||||
6 | 9757787 | Bracket, User Interface | ||||
7 | WP486579 | Screw (Replaces:311865) | ||||
8 | 4453880BT | Endcap (biscuit Lh) | ||||
4453884BT | Endcap (biscuit Rh) | |||||
4453880CM | Endcap (cashmere Metal) | |||||
4453880BL | Endcap (black Lh) | |||||
4453880WH | Endcap (white Lh) | |||||
4453884CM | Endcap (cashmere Metal) | |||||
4453884BL | Endcap (black Rh) | |||||
4453884WH | Endcap (white Rh) | |||||
9 | 4453911WH | Knob (white) | ||||
4453911BT | Knob (biscuit) | |||||
8285604 | Knob (black) (Replaces:4453911BL) | |||||
10 | WPW10331686 | Module, Spark (Replaces:9758080) | ||||
11 | 4453912BL | Knob (tcb) (black) | ||||
4453912BT | Knob (tcb) (biscuit) | |||||
4453912WH | Knob (tcb) (white) | |||||
4453912CM | Knob (tcb) (cashmere Metalic) | |||||
12 | 3196172 | Screw | ||||
13 | 9759827 | Insert, Membrane | ||||
14 | 9757409 | Support, Gas Valve |
