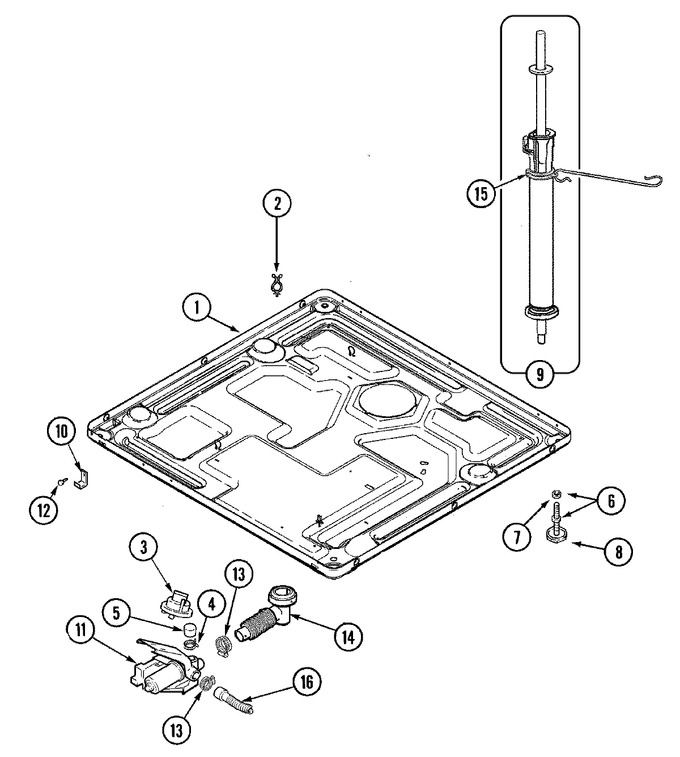

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 22002014 | Clip | 10 | |||
22003605 | Base Weld Assembly | 72 | ||||
22003580 | Base, Assembly | 67 | ||||
22003435 | Base, Assembly | 10 | ||||
WP90767 | Screw (Replaces:212276) | 10 | ||||
2 | WP22003298 | Retainer, Wire (Replaces:22002852) | 10 | |||
3 | WP22003728 | Switch, Pressure | 74 | |||
22004500 | Switch, Pressure-2 Level | C4 | ||||
WP22003728 | Switch, Pressure | C7 | ||||
12001891 | Switch, Pressure (Replaces:22003250) | 10 | ||||
22003265 | Bag, Plastic W/drawstring | 10 | ||||
22004500 | Switch, Pressure-2 Level | C8 | ||||
4 | WP285655 | Clamp, Hose (Replaces:22002853) | 10 | |||
5 | 22003268 | Cap, Rubber | 10 | |||
6 | WP8563585 | Adjustable Leg & Nut (Replaces:22001915) | 10 | |||
7 | WP62739 | Nut (Replaces:Y052740) | 10 | |||
8 | WP210684 | Foot, Rubber | 10 | |||
9 | WP22001988 | Strut Assy-rear | 10 | |||
10 | WP22002239 | Clip, Lower Front Panel | 10 | |||
11 | WP25001052 | Pump (Replaces:22003244) | 10 | |||
25001012 | Pump Isolator Bracket | 10 | ||||
12 | WP22001995 | Screw | 10 | |||
13 | 202515 | Hose Clamp - 1-1/16 Inch | 10 | |||
14 | WP22003262 | Hose, Tub To Pump | 10 | |||
15 | 22003080 | Clip, Airdome Hose | 10 | |||
16 | 12001807 | Kit Nc, Drain Hose Replacement | 10 |
