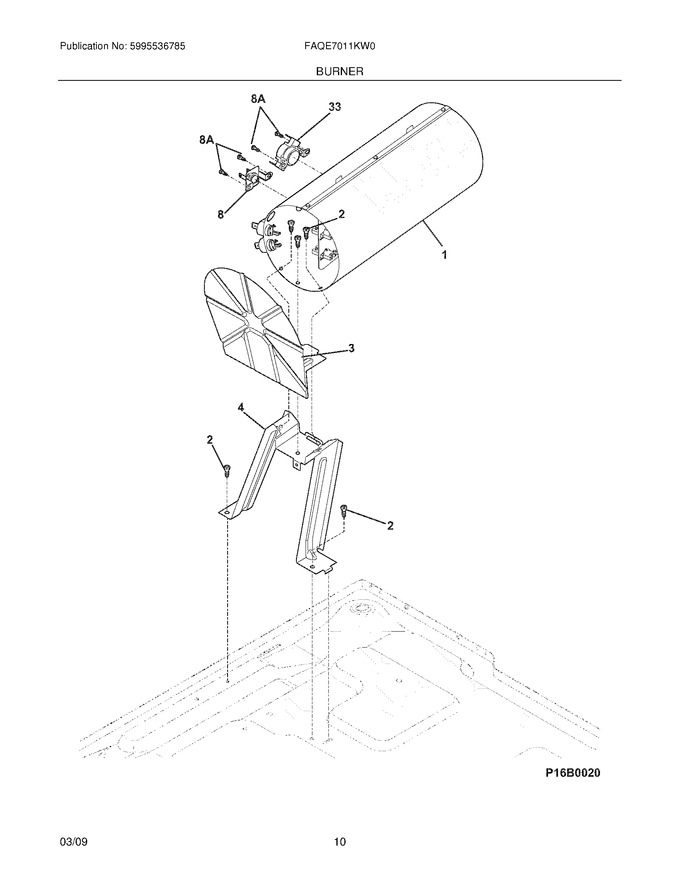

11 - Burner


Diagram #	Part Number		Description	Series	Find a Video
F1	5304535760		Heater,1 Element ,4700w   (Replaces:137114000)
2	131168200		Screw,pan Head ,8-18b X 0.31
3	134692701		Shield,radiant ,electric   (Replaces:134692700)
4	134785000		Bracket,heater/burner ,mounting
8	137032600		Limiter,thermal ,heater
F33	3204267		Thermostat-safety
8A	134935200		Screw,no.8-32 X .25 ,w/no.6 Quadrexpan

    View Diagram in Separate Window       Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand
