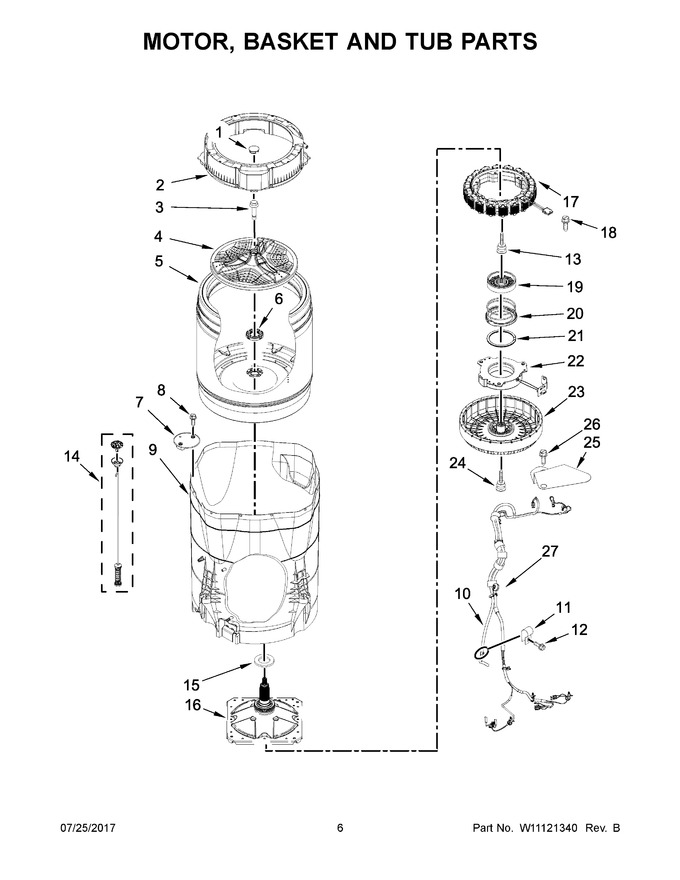

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W11050804 | Cap, Impeller (Replaces:W10609549) | ||||
2 | W11190826 | Tub Ring (Replaces:W10578861) | ||||
3 | W10752187 | Screw (Replaces:W10625252) | ||||
4 | W10752283 | Impeller (washplate) (Replaces:W10834890) | ||||
5 | W10811957 | Basket Assembly (Replaces:W10586078) | ||||
6 | W10909670 | Nut, Spin Tube (Replaces:W10564013) | ||||
7 | WPW10215093 | Filter, Drain Pump | ||||
8 | WP8533928 | Screw | ||||
9 | W11219115 | Tub (Replaces:W10512161) | ||||
10 | WP353244 | Hose Pressure Switch (Replaces:W10753364) | ||||
11 | W10005430 | Clamp, Cable | ||||
12 | WPW10109200 | Screw (Replaces:8533943) | ||||
13 | W11027980 | Screw (Replaces:W10644129) | ||||
14 | W11130359 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces:W11033536) | ||||
15 | W11032711 | Washer, Thrust (Replaces:W10665342) | ||||
16 | W11393685 | Assembly, Drive (Replaces:W10868473) | ||||
17 | W10754158 | Stator, Motor (Replaces:W10579778) | ||||
18 | W10567155 | Screw | ||||
19 | W10734521 | Slider (Replaces:W10447975) | ||||
20 | W10734521 | Assembly, Spring (Replaces:W10006494) | ||||
21 | W10734521 | Ring, Snap (Replaces:W10275082) | ||||
22 | W10754448 | Assembly, Clutch (Replaces:W10817398) | ||||
23 | W10754161 | Rotor, Motor (Replaces:W10447979) | ||||
24 | W10752189 | Screw (Replaces:W10636382) | ||||
25 | W10673062 | Harness Shield - Motor | ||||
26 | WP90767 | Screw | ||||
27 | W11130532 | Harness, Lower |
