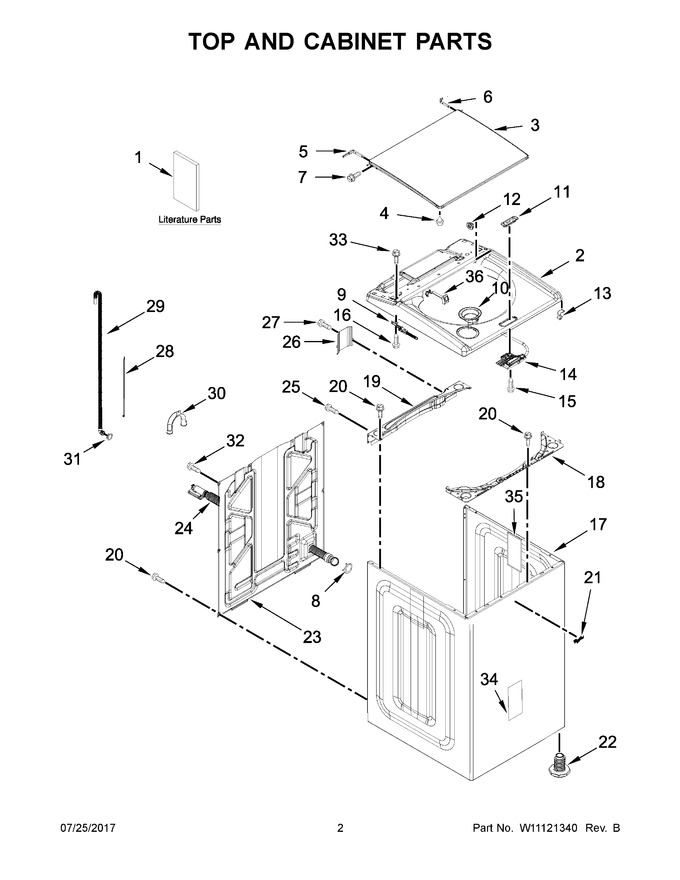

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10682737 | Instructions, Installation |  |
|||
| 2 | W11097645 | Top (white) (Replaces:W10635913) | |
|||
| 3 | W11130236 | Assembly, Lid (glass) (black) (Replaces:W11038208) | |
|||
| 4 | W11398707 | Bumper, Lid (Replaces:W10631074) | |
|||
| 5 | WP8563965 | Hinge, Wire (left) | |
|||
| 6 | WP8572974 | Hinge, Wire (right) | |
|||
| 7 | W11404293 | Screw (Replaces:W10339706) | |
|||
| 8 | WP285655 | Clamp, Hose (Replaces:W10142630) | |
|||
| 9 | W10861714 | Hinge, Lid (left) (Replaces:W10594141) | |
|||
| 10 | W11234069 | Dispenser, Bleach (white) (Replaces:W10601839) | |
|||
| 11 | W11237157 | Bezel, Lid Lock (white) (Replaces:W10630254) | |
|||
| 12 | W11168238 | Spacer, Lid Hinge (white) (Replaces:W10708964) | |
|||
| 13 | WP90016 | Clip, Harness | |
|||
| 14 | W10810403 | Assembly, Lid Lock (white) (Replaces:W10787878) | |
|||
| 15 | WPW10273971 | Screw | |
|||
| 16 | WP693995 | Screw | |
|||
| 17 | W10676680 | Cabinet (white) | |
|||
| 18 | W11695476 | Brace, Cabinet Top - Front (white) (Replaces:W10724131) | |
|||
| 19 | W11089573 | Brace, Cabinet Top - Rear (Replaces:W10512626) | |
|||
| 20 | WP489069 | Screw (Replaces:1157158) | |
|||
| 21 | W11178521 | Badge (white) (Replaces:W10387117) | |
|||
| 22 | WPW10687506 | Foot Assembly, Leveling | |
|||
| 23 | W11417171 | Panel, Rear (Replaces:W10612644) | |
|||
| 24 | W11035296 | Hose, Internal Drain (Replaces:W10786886) | |
|||
| 25 | WPW10249633 | Screw | |
|||
| 26 | W10676061 | Cover, Harness | |
|||
| 27 | W10846509 | Screw (Replaces:3400076) | |
|||
| 28 | WPW10339879 | Tie, Cable | |
|||
| 29 | W11244231 | Hose, Outer Drain Assembly (Replaces:W10221546) | |
|||
| 30 | WPW10280024 | U-bend, Drain Hose | |
|||
| 31 | WP356138 | Clamp, Hose | |
|||
| 32 | WP9740848 | Screw | |
|||
| 33 | WP313808 | Screw (Replaces:311932) | |
|||
| 34 | W11197416 | Absorber, Impact (Replaces:W10688364) | |
|||
| 35 | WP8564458 | Absorber, Impact | |
|||
| 36 | W11174419 | Switch, Faucet (white) (Replaces:W11082600) | |
|||
| 10A | W11234070 | Dispenser, Bleach (chrome Shadow) (Replaces:W10601859) | |
|||
| 11A | W11237158 | Bezel, Lid Lock (chrome Shadow) (Replaces:W10665169) | |
|||
| 12A | W10708966 | Spacer, Lid Hinge (chrome Shadow) | |
|||
| 17A | W10677271 | Cabinet (chrome Shadow) | |
|||
| 18A | W10724132 | Brace, Cabinet Top - Front (chrome Shadow) | |
|||
| 1A | W11037201 | Owners Manual | |
|||
| 1B | W11037199 | Tech Sheet | |
|||
| 1C | W11037203 | Energy Guide | |
|||
| 1D | W11037204 | Quick Start Guide | |
|||
| 1E | W10854698 | Drain Pan Instructions | |
|||
| 21A | WPW10393264 | Badge (grey) | |
|||
| 2A | W10817363 | Top (chrome Shadow) (Replaces:W10649674) | |
|||
| 36A | W11174420 | Switch, Faucet (chrome Shadow) (Replaces:W11044832) | |
|||
| 9A | W11023747 | Hinge, Lid (right) (Replaces:W10594142) | |
