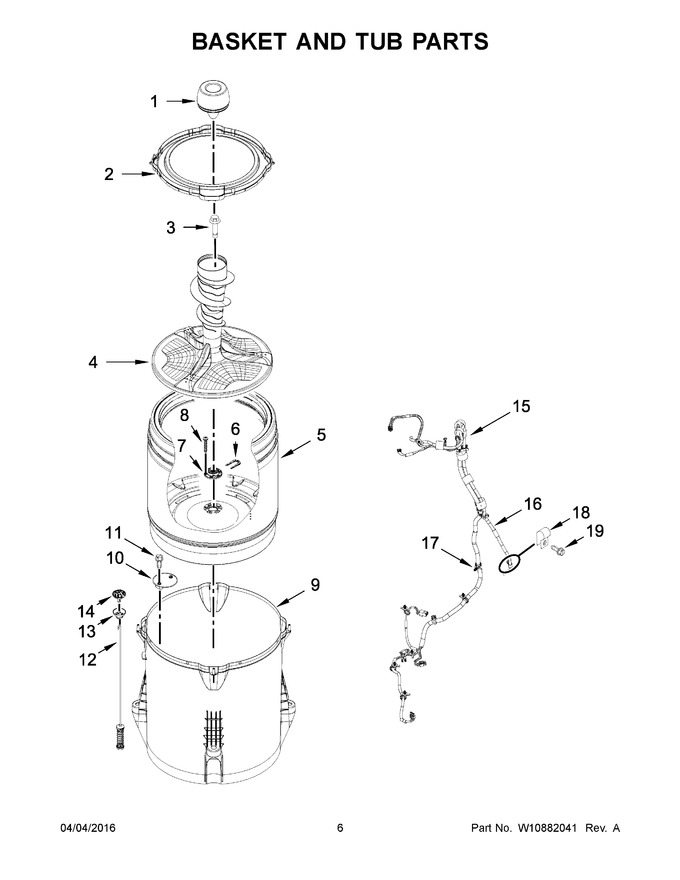

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11205050 | Dispenser, Fabric Softener (Replaces:W10863013) |  |
|||
| 2 | W10849477 | Tub Ring (Replaces:W10578859) | |
|||
| 3 | W10752187 | Screw (Replaces:W10625252) | |
|||
| 4 | W11550891 | Agitator (complete) (Replaces:W10821990) | |
|||
| 5 | W10752719 | Basket Assembly (Replaces:W10586077) | |
|||
| 6 | W11385424 | Retainer, Drive Block (Replaces:W10402178) | |
|||
| 7 | W10528947 | Hub - Driven, Basket (Replaces:W10396887) | |
|||
| 8 | WP8533953 | Screw | |
|||
| 9 | W11219115 | Tub (Replaces:W10512161) | |
|||
| 10 | WPW10215093 | Filter, Drain Pump | |
|||
| 11 | WP8533928 | Screw | |
|||
| 12 | W11130362 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces:W10748956) | |
|||
| 13 | W10440729 | Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls) (Replaces:W10256551) | |
|||
| 14 | W10583768 | Ball, Suspension (set Of 4 - Includes Suspension Bushings) | |
|||
| 15 | W11095106 | Harness, Lower (Replaces:W10777952) | |
|||
| 16 | WP353244 | Hose, Pressure Switch (Replaces:W10236981) | |
|||
| 17 | WPW10298887 | Cable Tie | |
|||
| 18 | W10005430 | Clamp, Cable | |
|||
| 19 | WPW10109200 | Screw (Replaces:8533943) | |
