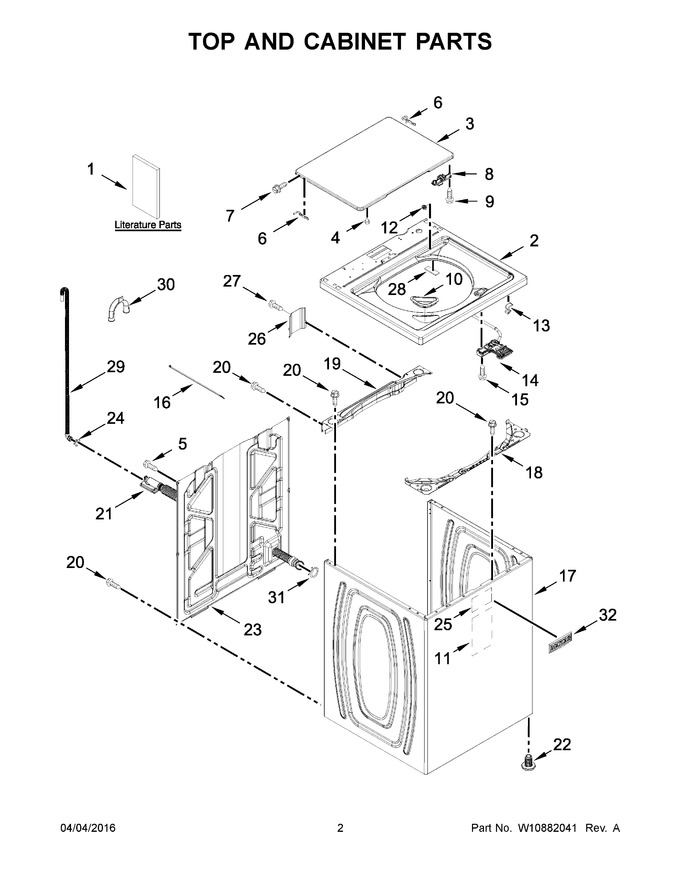

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10682737 | Instructions, Installation |  |
|||
| 2 | W11211509 | Top (white) (Replaces:W10768768) | |
|||
| 3 | W10860912 | Lid (white) (Replaces:W10027624) | |
|||
| 4 | WP9724509 | Bumper, Lid | |
|||
| 5 | WP9740848 | Screw | |
|||
| 6 | WP91770 | Hinge, Lid (left) | |
|||
| 7 | WPW10119828 | Screw (Replaces:W10119872) | |
|||
| 8 | W10837741 | Strike, Lid Lock (white) (Replaces:W10714899) | |
|||
| 9 | WPW10273971 | Screw | |
|||
| 10 | WPW10192089 | Dispenser, Bleach | |
|||
| 11 | W11611669 | Absorber, Impact (Replaces:W10834527) | |
|||
| 12 | WP21258 | Bearing, Lid Hinge | |
|||
| 13 | WP90016 | Clip, Harness | |
|||
| 14 | W11307244 | Latch, Lid Lock Assembly (Replaces:W10682535) | |
|||
| 15 | WPW10213953 | Screw | |
|||
| 16 | WPW10339879 | Tie, Cable | |
|||
| 17 | W10676680 | Cabinet (white) | |
|||
| 18 | W11695476 | Brace, Cabinet Top - Front (white) (Replaces:W10724131) | |
|||
| 19 | W11089573 | Brace, Cabinet Top - Rear (Replaces:W10512626) | |
|||
| 20 | WP489069 | Screw (Replaces:1157158) | |
|||
| 21 | W11035296 | Hose, Internal Drain (Replaces:W10786886) | |
|||
| 22 | WPW10687506 | Foot Assembly, Leveling | |
|||
| 23 | W11417171 | Panel, Rear (Replaces:W10612644) | |
|||
| 24 | WP356138 | Clamp, Hose | |
|||
| 25 | WP8564458 | Absorber, Impact | |
|||
| 26 | W10648853 | Cover, Harness | |
|||
| 27 | W10846509 | Screw (Replaces:3400076) | |
|||
| 28 | W10684258 | Pad, Lid Hinge | |
|||
| 29 | W11244231 | Hose, Outer Drain Assembly (Replaces:W10221546) | |
|||
| 30 | WPW10280024 | U-bend, Drain Hose | |
|||
| 31 | WP285655 | Clamp, Hose (Replaces:W10142630) | |
|||
| 32 | WPW10612925 | Badge | |
|||
| 1A | W10740624 | Tech Sheet | |
|||
| 1B | W10871756 | Use And Care Guide | |
|||
| 1C | W10864126 | Quick Start Guide | |
|||
| 1D | W10877315 | Energy Guide | |
|||
| 6A | WP54583 | Hinge, Lid (right) | |
