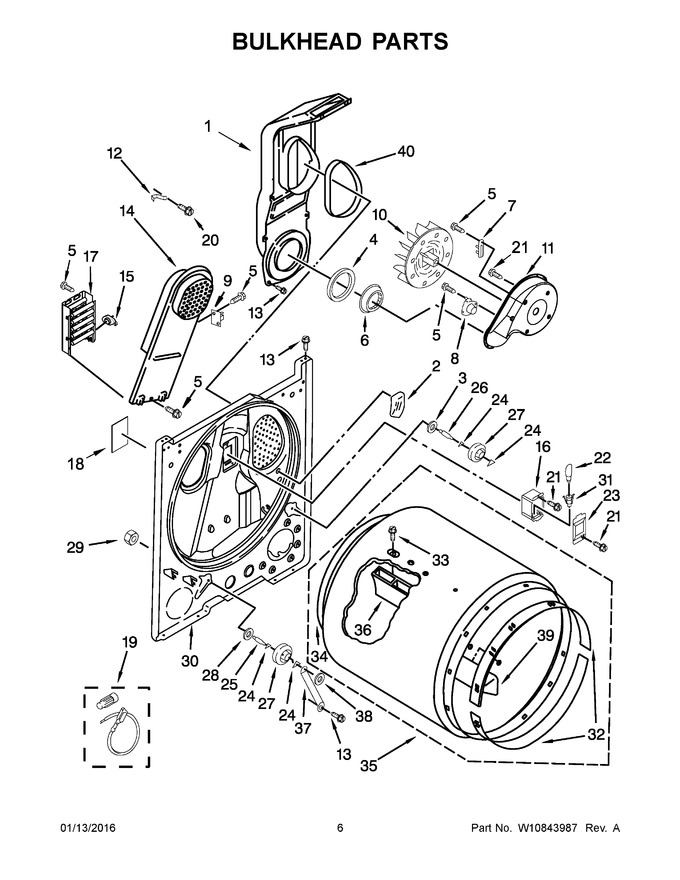

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11117429 | Assembly, Lint Chute (Replaces:348368) |  |
|||
| 2 | W10853313 | Pad, Sensor (Replaces:W10681051) | |
|||
| 3 | WP3388703 | Washer | |
|||
| 4 | W11415783 | Seal, Lint Chute (Replaces:347139) | |
|||
| 5 | WP90767 | Screw | |
|||
| 6 | W11233063 | Shield, Exhaust (Replaces:W10389567) | |
|||
| 7 | WP3392519 | Fuse, Thermal (91c) | |
|||
| 8 | WP8318268 | Thermostat | |
|||
| 9 | 279816 | Thermal Cut-off (Replaces:3977393) | |
|||
| 10 | WP694089 | Wheel, Blower | |
|||
| 11 | WP8577230 | Housing, Blower | |
|||
| 12 | 279771 | Clip, Heater Box (Replaces:3398161) | |
|||
| 13 | WP3390631 | Screw | |
|||
| 14 | WP8541818 | Box, Heater | |
|||
| 15 | WP3977767 | Thermostat, 221 F (105 C) | |
|||
| 16 | 3977373 | Bracket, Drum Light | |
|||
| 17 | 279838 | Element, Heater (Replaces:W10724237) | |
|||
| 18 | W11409002 | Pad, Foam (Replaces:W10653662) | |
|||
| 19 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) | |
|||
| 20 | WP489463 | Screw | |
|||
| 21 | 3390647 | Screw | |
|||
| 22 | WP22002263 | Bulb, Light (Replaces:3406124) | |
|||
| 23 | W11226088 | Lens, Drum Light (Replaces:3402841) | |
|||
| 24 | WPW10512946 | Washer, Tri Ring | |
|||
| 25 | WPW10359270 | Shaft, Drum Roller - Left Hand Thread | |
|||
| 26 | WPW10359269 | Shaft, Drum Roller - Right Hand Thread | |
|||
| 27 | WPW10314173 | Roller, Support (Replaces:W10314171) | |
|||
| 28 | WP348197 | Washer | |
|||
| 29 | W11229607 | Nut, Hex (Replaces:W10298789) | |
|||
| 30 | W10828905 | Bulkhead (Replaces:W10714469) | |
|||
| 31 | W11222979 | Socket, Light (Replaces:W10214261) | |
|||
| 32 | 279441 | Bearing, Ring (Replaces:692526) | |
|||
| 33 | W10853898 | Screw (Replaces:W10219342) | |
|||
| 34 | W10612022 | Seal, Rear Drum (Replaces:W10725245) | |
|||
| 35 | W10899578 | Assembly, Drum (complete) (Replaces:W10757750) | |
|||
| 36 | WP692490 | Baffle, Drum (long) | |
|||
| 37 | W11032820 | Bracket, Support (Replaces:3976434) | |
|||
| 38 | WP90296 | Nut, Push On | |
|||
| 39 | WP3403636 | Baffle, Drum (short) | |
|||
| 40 | WP339956 | Seal | |
