| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10562354 | Use And Care Guide |  |
|||
| 2 | WP681414 | Screw (Replaces:343641) | |
|||
| 3 | WP693995 | Screw | |
|||
| 4 | WPW10224768 | Seal, Spill Guard | |
|||
| 5 | W11298298 | Cover, Terminal Block (Replaces:W10571619) | |
|||
| 6 | W11684591 | Plug, Strike (Replaces:W10567345) | |
|||
| 7 | 280043 | Panel, Rear (Replaces:W10571724) | |
|||
| 8 | WP8066092 | Lock, Front Top | |
|||
| 9 | WP98234 | Clip, Ground | |
|||
| 10 | WP3406107 | Switch, Door (Replaces:W10569603) | |
|||
| 11 | WP3395530 | Screw (Replaces:697773) | |
|||
| 12 | WP3404413 | Plug, Hole | |
|||
| 13 | 279220 | Clip, Felt Pad (Replaces:685203) | |
|||
| 14 | WP308685 | Screw (Replaces:3393008) | |
|||
| 15 | W10854425 | Clip, Front Panel (Replaces:W10775448) | |
|||
| 16 | W11025920 | Foot, Dryer (Replaces:W10561321) | |
|||
| 17 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) | |
|||
| 18 | 8533643 | Cabinet (white) (Replaces:8530603) | |
|||
| 19 | W10806345 | Panel, Front (white) (Replaces:W10664697) | |
|||
| 20 | W11429589 | Strike, Door (Replaces:3403431) | |
|||
| 21 | W11035878 | Assembly, Seal And Bearing (Replaces:W10803476) | |
|||
| 22 | W11429587 | Assembly, Door Catch (Replaces:W10610880) | |
|||
| 23 | WP488627 | Screw (Replaces:342055) | |
|||
| 24 | WPW10362431 | Assembly, Hinge And Pin | |
|||
| 25 | W10861521 | Seal, Door (Replaces:W10730752) | |
|||
| 26 | WPW10463967 | Door, Inner | |
|||
| 27 | W10861224 | Door, Front (white) (Replaces:W10714510) | |
|||
| 28 | W10861225 | Handle, Door (white) (Replaces:W10714516) | |
|||
| 29 | 279393 | Screw Kit, Terminal Block | |
|||
| 30 | W10850756 | Screw (Replaces:8533974) | |
|||
| 31 | WP3397659 | Block, Terminal | |
|||
| 32 | WP3404162 | Clamp, Motor (with Shield) | |
|||
| 33 | WPW10121316 | Clamp, Motor Mount | |
|||
| 34 | 279827 | Assembly, Motor (Replaces:W10396032) | |
|||
| 35 | WP8066184 | Pulley, Motor | |
|||
| 36 | WP691366 | Idler Assembly | |
|||
| 37 | WPW10198086 | Belt, Drive | |
|||
| 38 | WP348780 | Base, Motor | |
|||
| 39 | 3400500 | Bolt | |
|||
| 40 | WP8066217 | Hinge, Top | |
|||
| 41 | WPW10157932 | Seal, Foam (Replaces:W10316529) | |
|||
| 42 | 3390647 | Screw | |
|||
| 43 | W10316619 | Seal, Spill Guard | |
|||
| 44 | W10224934 | Seal, Spill Guard | |
|||
| 45 | W11230156 | Pad, Power Cord (Replaces:W10782659) | |
|||
| 46 | WPW10529197 | Bezel, Door Catch | |
|||
| 47 | W11173656 | Cover, Door Catch (Replaces:W10529198) | |
|||
| 1A | W10185993 | Wiring Diagram | |
|||
| 1B | W10562358 | Installation Instructions | |
|||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces:279810) | |

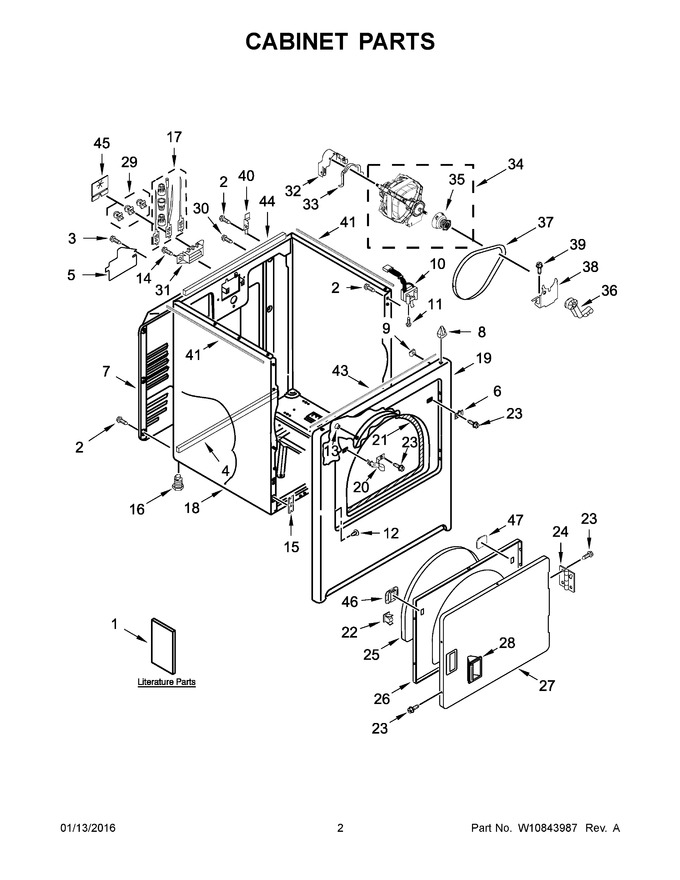

View Diagram in Separate Window
