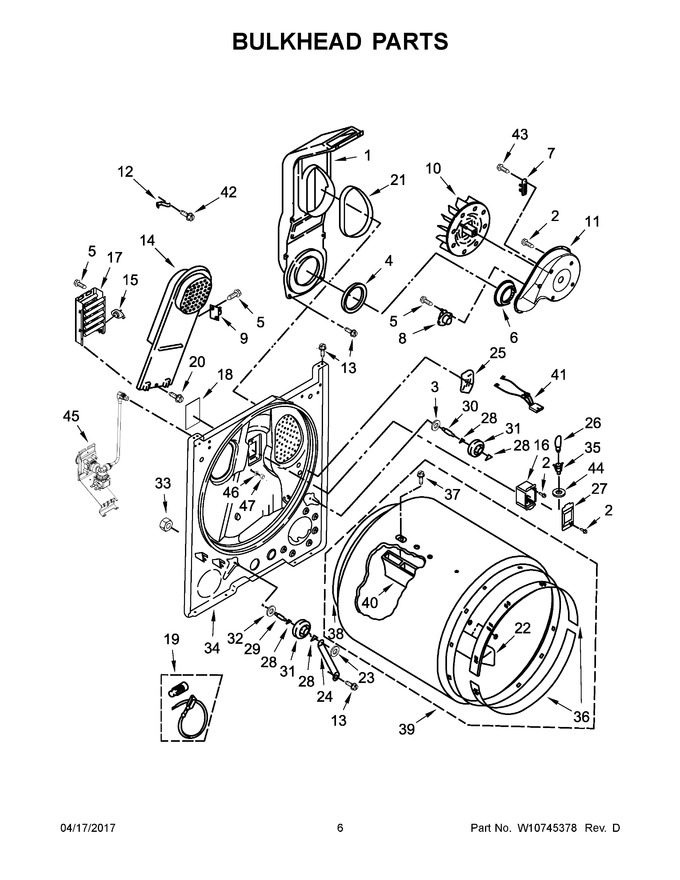

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11117429 | Assembly, Lint Chute (Replaces:348368) |  |
|||
| 2 | WP488729 | Screw (Replaces:3390647) | |
|||
| 3 | WP3388703 | Washer | |
|||
| 4 | W11415783 | Seal, Lint Chute (Replaces:347139) | |
|||
| 5 | WP90767 | Screw (Replaces:3348629) | |
|||
| 6 | W11233063 | Shield, Exhaust (Replaces:W10389567) | |
|||
| 7 | WP3392519 | Fuse, Thermal (91c) | |
|||
| 8 | WP8577274 | Thermistor | |
|||
| 9 | W10900067 | Kit, Thermal Cut-off (includes Thermostat) | |
|||
| 10 | WP694089 | Wheel, Blower | |
|||
| 11 | WP8577230 | Housing, Blower | |
|||
| 12 | 279771 | Clip, Heater Box (Replaces:3398161) | |
|||
| 13 | WP681414 | Screw (Replaces:343641) | |
|||
| 14 | WP8541818 | Box, Heater | |
|||
| 15 | WP3977767 | Thermostat, 221 F (105 C) | |
|||
| 16 | 3977373 | Bracket, Drum Light | |
|||
| 17 | 279838 | Element, Heater (Replaces:W10724237) | |
|||
| 18 | W11409002 | Pad, Foam (Replaces:W10653662) | |
|||
| 19 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) | |
|||
| 20 | WP489463 | Screw | |
|||
| 21 | WP339956 | Seal | |
|||
| 22 | WP3403636 | Baffle, Drum (short) | |
|||
| 23 | WP90296 | Nut, Push On | |
|||
| 24 | W11032820 | Bracket, Support (Replaces:3976434) | |
|||
| 25 | W11684613 | Pad, Sensor (Replaces:W10681051) | |
|||
| 26 | W10853313 | Bulb, Light (Replaces:3406124) | |
|||
| 27 | WP22002263 | Lens, Drum Light (Replaces:3402841) | |
|||
| 28 | W11226088 | Washer, Tri Ring (Replaces:W10512946) | |
|||
| 29 | WPW10512946 | Shaft, Drum Roller - Left Hand Thread | |
|||
| 30 | WPW10359270 | Shaft, Drum Roller - Right Hand Thread | |
|||
| 31 | WPW10359269 | Roller, Support | |
|||
| 32 | 349241T | Washer (Replaces:348197) | |
|||
| 33 | WP348197 | Nut, Hex | |
|||
| 34 | W11229607 | Bulkhead (Replaces:W10714471) | |
|||
| 35 | W11112242 | Socket, Light (Replaces:W10214261) | |
|||
| 36 | W11222979 | Bearing, Ring (Replaces:692526) | |
|||
| 37 | 279441 | Screw (Replaces:W10219342) | |
|||
| 38 | W10853898 | Seal, Rear Drum (Replaces:W10725245) | |
|||
| 39 | W10612022 | Assembly, Drum (complete) (Replaces:W10757750) | |
|||
| 40 | W10899578 | Baffle, Drum (long) (Replaces:692490) | |
|||
| 41 | WP692490 | Harness, Sensor | |
|||
| 42 | WPW10298258 | Screw | |
|||
| 43 | W11693756 | Screw (Replaces:3393008) | |
|||
| 44 | WP308685 | Seal, Drum Light (Replaces:W10709380) | |
|||
| 45 | W10709380 | Valve And Hose Assembly | |
|||
| 46 | W11267102 | Washer, Nozzle (Replaces:W10044579) | |
|||
| 47 | W10044579 | Nut, Brass | |
|||
| W10044628 | |
