01 - Cover Sheet

Diagram for 02 - Top And Console Parts
02 - Top And Console Parts

Diagram for 03 - Cabinet Parts

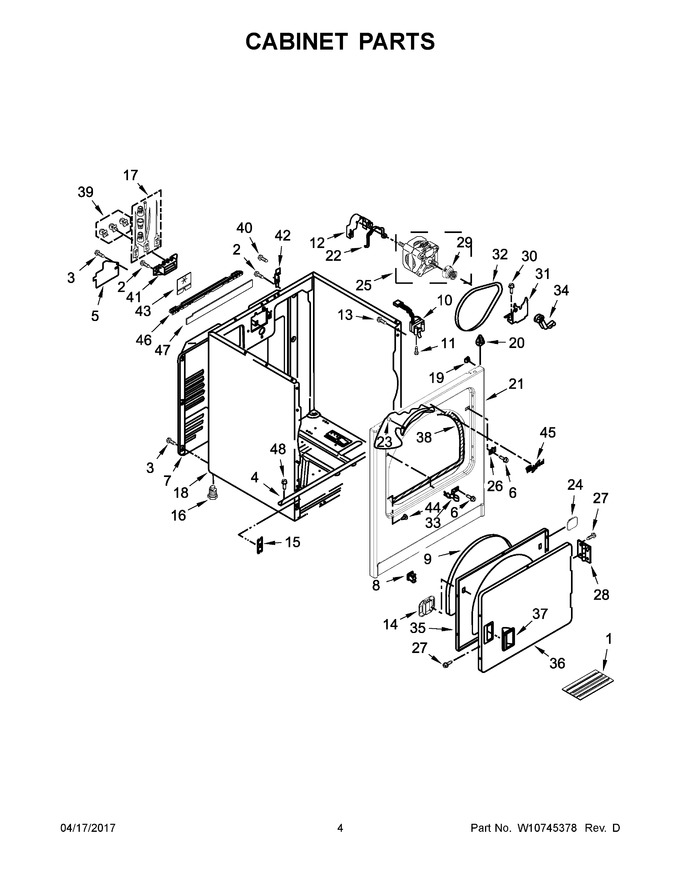

03 - Cabinet Parts

Diagram for 04 - Bulkhead Parts
04 - Bulkhead Parts

Diagram for 05 - Optional Parts (not Included)
05 - Optional Parts (not Included)


New Model Search:



Manufacturer: Whirlpool

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
1 W10636378 Pad, Door Handle Find a Video
2 WP3390631 Screw Find a Video
3 WP693995 Screw Find a Video
4 W10236073 Bracket, Cabinet Find a Video
5 W11298298 Cover, Terminal Block   (Replaces:W10571619) Find a Video
6 W10850756 Screw   (Replaces:8533974) Find a Video
7 W10634729 Panel, Rear Find a Video
8 WPW10610880 Assembly, Door Catch Find a Video
9 W10861521 Seal, Door   (Replaces:W10730752) Find a Video
10 WPW10569603 Switch, Door Find a Video
11 WP3395530 Screw   (Replaces:697773) Find a Video
12 WP3404162 Clamp, Motor (with Shield) Find a Video
13 WP308685 Screw   (Replaces:3393008) Find a Video
14 WPW10529197 Bezel, Door Catch Find a Video
15 W10854425 Clip, Front Panel   (Replaces:W10775448) Find a Video
16 49621 Foot, Dryer   (Replaces:3392100) Find a Video
17 279318 Terminal, Brass And Tinned (includes Terminal Block Screw Kit) Find a Video
18 8533643 Cabinet (white)   (Replaces:8530603) Find a Video
19 WP98234 Clip, Ground Find a Video
20 WP8066092 Lock, Front Top Find a Video
21 W10806345 Panel, Front (white)   (Replaces:W10664697) Find a Video
22 WPW10121316 Clamp, Motor Mount Find a Video
23 279220 Clip, Felt Pad   (Replaces:685203) Find a Video
24 W11173656 Cover, Door Catch   (Replaces:W10529198) Find a Video
25 279827 Assembly, Motor   (Replaces:W10396029) Find a Video
26 W10567345 Plug, Strike Find a Video
27 WP488627 Screw   (Replaces:342055) Find a Video
28 WPW10362431 Assembly, Hinge And Pin Find a Video
29 WP8066184 Pulley, Motor Find a Video
30 3400500 Bolt Find a Video
31 WP348780 Base, Motor Find a Video
32 W11025122 Belt, Drive   (Replaces:W10709670) Find a Video
33 WP3403431 Strike, Door Find a Video
34 WP691366 Idler Assembly Find a Video
35 WPW10463967 Door, Inner Find a Video
36 W10861227 Door, Front (white)   (Replaces:3402335) Find a Video
37 WPW10549553 Handle, Door (white) Find a Video
38 W11035878 Assembly, Seal And Bearing   (Replaces:W10663510) Find a Video
39 279393 Screw Kit, Terminal Block Find a Video
40 WP681414 Screw   (Replaces:343641) Find a Video
41 WP3397659 Block, Terminal Find a Video
42 W10641296 Hinge, Top Find a Video
43 W11230156 Pad, Power Cord   (Replaces:W10782659) Find a Video
44 WP3404413 Plug, Hole (white) Find a Video
45 W11178521 Badge (white)   (Replaces:W10387117) Find a Video
46 W10641295 Bracket, Rear Find a Video
47 W10685675 Seal, Rear Panel Find a Video
48 WP90767 Screw Find a Video
NI 49621 Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces:279810) Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

Diagram for WED7300DW0
