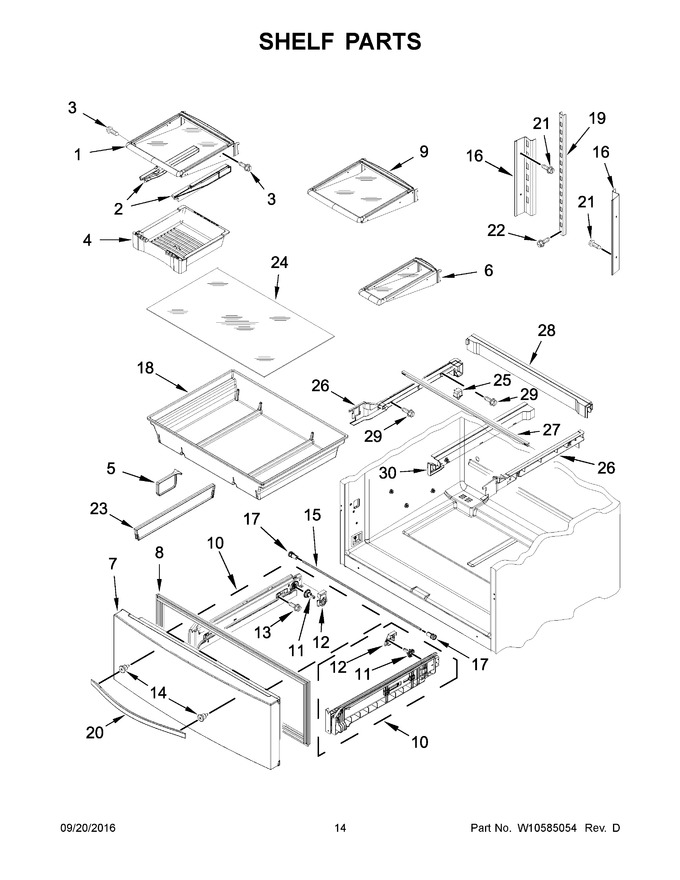

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP12883508SP | Shelf, Glass |  |
|||
| 2 | WPW10194031 | Glide, Snack Pan (left Hand) | |
|||
| 3 | W11233072 | Screw (Replaces:12990302SP) | |
|||
| 4 | WPW10319333 | Pan, Snack (includes Handle) | |
|||
| 5 | W10818645 | Divider, Sliding | |
|||
| 6 | W11197490 | Shelf, Mini Stationary (Replaces:12885501) | |
|||
| 7 | 13107112WQ | Door, Pantry (white) (Replaces:13107112W) | |
|||
| 8 | W10443325 | Gasket, Pantry (white) | |
|||
| 9 | W11402525 | Shelf, Glide Out (Replaces:12883507) | |
|||
| 10 | W11093713 | Adapter, Pantry (left Hand) (Replaces:W10666362) | |
|||
| 11 | W10277360 | Gear, Spur | |
|||
| 12 | W10284709 | Cover, Gear (left Hand) | |
|||
| 13 | WPW10272364 | Screw | |
|||
| 14 | WPW10661886 | Screw (Replaces:W10460893) | |
|||
| 15 | W10802341 | Shaft, Rack | |
|||
| 16 | W10251968 | Ladder, Side (left Hand) | |
|||
| 17 | WPW10277361 | Collar, Gear | |
|||
| 18 | W11483068 | Pan, Pantry (Replaces:W10801677) | |
|||
| 19 | W10273464 | Ladder, Center | |
|||
| 20 | W10827046 | Handle, Door (stainless) (Replaces:W10719666) | |
|||
| 21 | 67006425 | Screw (Replaces:12990513) | |
|||
| 22 | WP67006415 | Screw (Replaces:12990512) | |
|||
| 23 | W10818644 | Divider, Pantry | |
|||
| 24 | WPW10296571 | Glass, Pantry Shelf | |
|||
| 25 | W11291138 | Switch, Rocker (Replaces:12466104) | |
|||
| 26 | W10311723 | Rail, Pantry (left Hand) | |
|||
| 27 | WP12227305WD | Brace, Crisper Cover | |
|||
| 28 | W10331298 | Rail, Rear Pantry | |
|||
| 29 | WP98165 | Screw (Replaces:12990521) | |
|||
| 30 | W10311725 | Cover, Pantry Rail (left Hand) | |
|||
| 10A | W11093714 | Adapter, Pantry (right Hand) (Replaces:W10666363) | |
|||
| 12A | W10294414 | Cover, Gear (right Hand) | |
|||
| 16A | W10251965 | Ladder, Side (right Hand) | |
|||
| 26A | W10311726 | Rail, Pantry (right Hand) | |
|||
| 2A | WPW10194032 | Glide, Snack Pan (right Hand) | |
|||
| 7A | 13107112BQ | Door, Pantry (black) (Replaces:13107112B) | |
|||
| 7B | 13107112SQ | Door, Pantry (stainless) (Replaces:13107112S) | |
|||
| 8A | W11625002 | Gasket, Pantry (black) (Replaces:W10436255) | |
|||
| 8B | WPW10443326 | Gasket, Pantry (grey) | |
