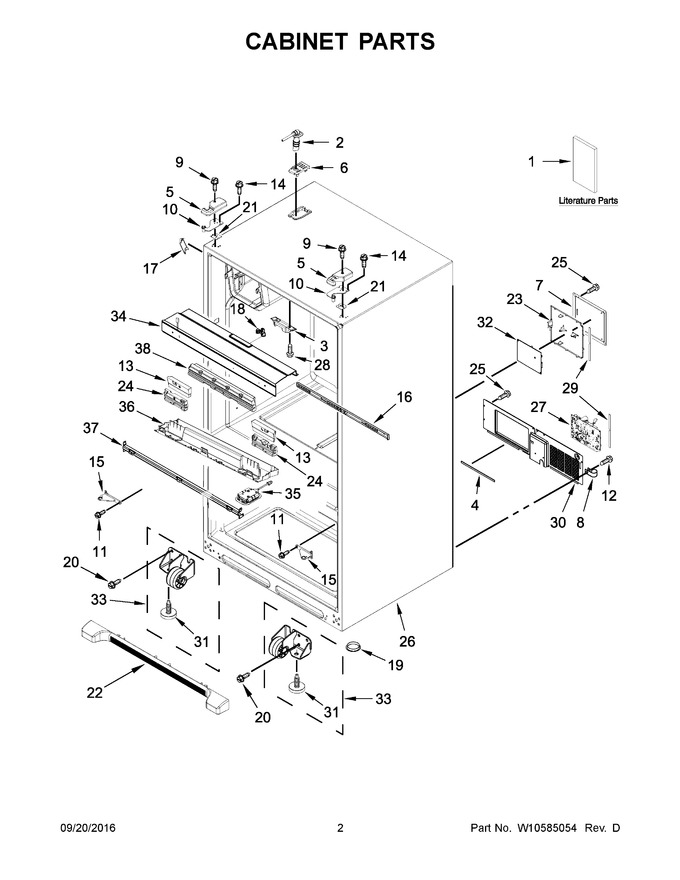

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10814198 | Tech Sheet |  |
|||
| 2 | W11415785 | Tube, Water (Replaces:12961401) | |
|||
| 3 | WP67003405 | Plate, Pivot (Replaces:12698403) | |
|||
| 4 | B5759655 | Gasket | |
|||
| 5 | WPW10337634 | Cover, Top Hinge Left Hand (white) | |
|||
| 6 | 12981401W | Cover, Fill Tube (white) | |
|||
| 7 | 12961602 | Cover, Control Box | |
|||
| 8 | W11456069 | Clamp, Tube (Replaces:M0108107) | |
|||
| 9 | WP8281196 | Screw (Replaces:12992602) | |
|||
| 10 | WP12963204ED | Hinge, Top (left Hand) | |
|||
| 11 | WPW10109200 | Screw (Replaces:489470) | |
|||
| 12 | 67006425 | Screw (Replaces:12990511) | |
|||
| 13 | W10316403 | Wedge, Spacer (left Hand & Right Hand) | |
|||
| 14 | WP489349 | Screw (Replaces:12992403) | |
|||
| 15 | W10918115 | Hinge, Center Left Hand (white) (Replaces:W10740148) | |
|||
| 16 | W10367522 | Slide, Mullion Vent | |
|||
| 17 | 12587703W | Cover, Corner (white) | |
|||
| 18 | W10827867 | Knob, Vent Slide | |
|||
| 19 | A3076901 | Plug, Button (black) | |
|||
| 20 | 67006564 | Screw (Replaces:W10709365) | |
|||
| 21 | 12999501 | Shim, Top Hinge (left Hand) | |
|||
| 22 | WPW10534154 | Grille, Toe (white) | |
|||
| 23 | W10296541 | Lid, Hv Control Box | |
|||
| 24 | W10316401 | Wedge, Spacer (left Hand & Right Hand) | |
|||
| 25 | 12990702 | Screw | |
|||
| 26 | N/P | Cabinet (not A Servicable Part) | |
|||
| 27 | WPW10226427 | Control, Electronic (power Supply) | |
|||
| 28 | W10854958 | Screw (Replaces:12990302) | |
|||
| 29 | 67006429 | Gasket, Control Box (Replaces:12957801) | |
|||
| 30 | WPW10270394 | Cover, Unit | |
|||
| 31 | WPW10141622 | Brake, Roller | |
|||
| 32 | W11035835 | Board, Hv Control (Replaces:W10614933) | |
|||
| 33 | WPW10515763 | Assembly, Roller (left Hand) | |
|||
| 34 | W10877453 | Assembly, Secondary Mullion (white) (Replaces:W10831971) | |
|||
| 35 | W11683243 | Assembly, Led Light Module (Replaces:W10843353) | |
|||
| 36 | W10877249 | Housing, Module (Replaces:W10820998) | |
|||
| 37 | W10492234 | Brace, Mullion | |
|||
| 38 | W10311721 | Mullion, Secondary | |
|||
| 10A | W11592374 | Hinge, Top (right Hand) (Replaces:12963205ED) | |
|||
| 15A | W10918166 | Hinge, Center Left Hand (black) (Replaces:W10740149) | |
|||
| 15B | W10917988 | Hinge, Center Left Hand (grey) (Replaces:13000001AP) | |
|||
| 15C | W10918117 | Hinge, Center Right Hand (white) (Replaces:W10740144) | |
|||
| 15D | W10918168 | Hinge, Center Right Hand (black) (Replaces:W10740145) | |
|||
| 15E | W10917988 | Hinge, Center Right Hand (grey) (Replaces:13000002AP) | |
|||
| 17A | 67003485 | Cover, Corner (black) (Replaces:12587703B) | |
|||
| 17B | WP12587703AP | Cover, Corner (grey) | |
|||
| 1A | W10422734 | Use & Care Guide | |
|||
| 1B | W10729263 | Energy Guide | |
|||
| 21A | 12999502 | Shim, Top Hinge (right Hand) | |
|||
| 22A | WPW10534153 | Grille, Toe (black) | |
|||
| 22B | WPW10534155 | Grille, Toe (grey) | |
|||
| 33A | WPW10515762 | Assembly, Roller (right Hand) | |
|||
| 34A | W10877456 | Assembly, Secondary Mullion (black) (Replaces:W10831969) | |
|||
| 34B | W10877493 | Assembly, Secondary Mullion (grey) (Replaces:W10831970) | |
|||
| 5A | W10337647 | Cover, Top Hinge Left Hand (black) | |
|||
| 5B | WPW10337648 | Cover, Top Hinge Left Hand (grey) | |
|||
| 5C | 67005958 | Cover, Top Hinge Right Hand (white) (Replaces:12962302W) | |
|||
| 5D | WP67005956 | Cover, Top Hinge Right Hand (black) (Replaces:12962302B) | |
|||
| 5E | WPW10191117 | Cover, Top Hinge Right Hand (grey) (Replaces:12962302AP) | |
|||
| 6A | 12981401B | Cover, Fill Tube (black) | |
|||
| 6B | W10191141 | Cover, Fill Tube (grey) (Replaces:12981401AP) | |
