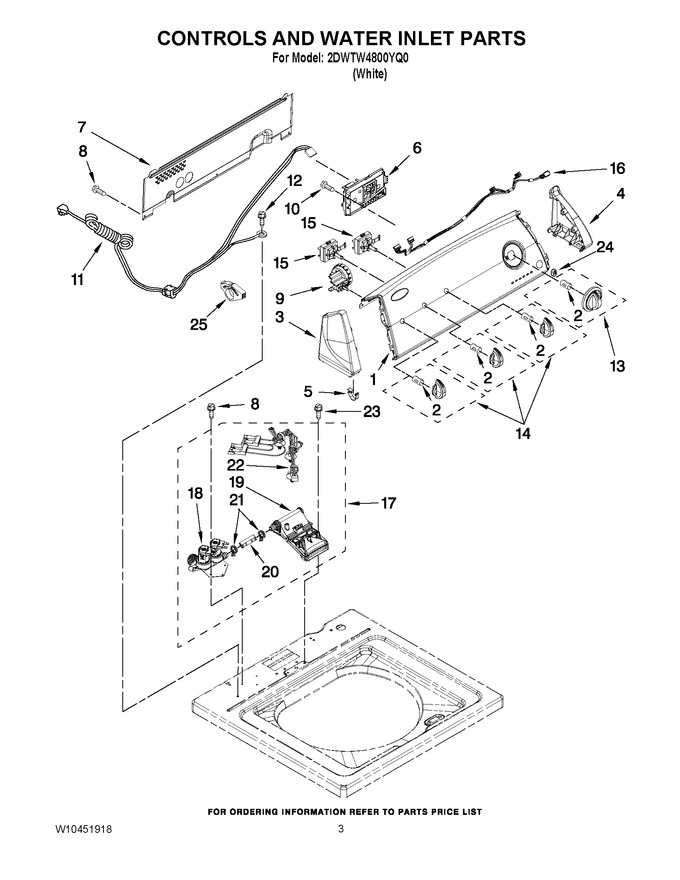

View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WPW10365092 | Panel, Console | ||||
2 | WP8536939 | Clip, Knob | ||||
3 | WP8565957 | Cap, End (l.h.) (includes Item 5) (Replaces:8566035) | ||||
4 | WP8565954 | Cap, End (r.h.) (includes Item 5) (Replaces:8566032) | ||||
5 | WP8312709 | Clip, Console | ||||
6 | W10480615 | Control Unit Assembly, Machine & Motor (Replaces:W10445374) | ||||
7 | WPW10420985 | Panel, Console Rear Cover | ||||
8 | WP489069 | Screw, 8-18 X 3/8 (Replaces:1157158) | ||||
9 | WPW10268911 | Switch, Water Level | ||||
10 | WP90767 | Screw, 8-18 X 3/8 | ||||
11 | WPW10525194 | Cord, Power (Replaces:W10276649) | ||||
12 | W10846509 | Screw, Power Cord Ground (Replaces:3400076) | ||||
13 | WPW10034750 | Knob, Timer | ||||
14 | WPW10034380 | Knob, Control | ||||
15 | WPW10285512 | Switch, Rotary Encoder | ||||
16 | W10291174 | Harness, Upper | ||||
17 | WPW10432360 | Inlet Assembly, Water | ||||
18 | WPW10352256 | Valve, Water Mixing | ||||
19 | WPW10441423 | Vacuum Break | ||||
20 | W10238347 | Hose, Vacuum Break | ||||
21 | W10117298 | Clamp, Hose | ||||
22 | WPW10344775 | Harness, Valve | ||||
23 | WP8281163 | Screw 8-16 X 1/2 | ||||
24 | WPW10251309 | Pushbutton, Start | ||||
25 | W10348582 | Clamp |
