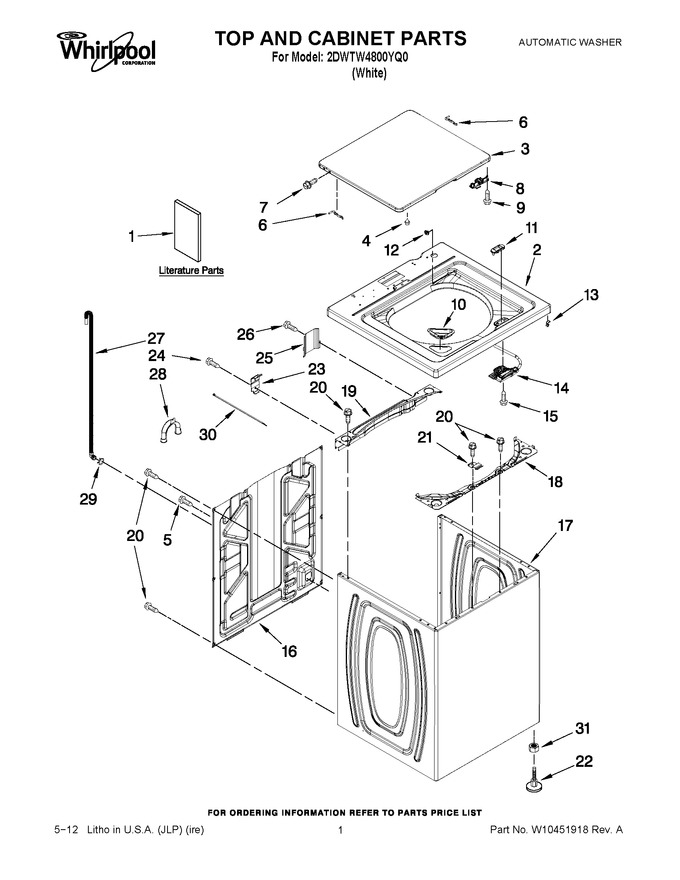

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10425223 | Installation Instructions |  |
|||
| W10062950 | Energy Guide | |
||||
| W10280489 | Tech Sheet | |
||||
| W10424590 | Use & Care Guide | |
||||
| 2 | WPW10251319 | Top | |
|||
| 3 | W10860912 | Lid (includes Item 4) (Replaces:W10027624) | |
|||
| 4 | WP9724509 | Bumper, Lid | |
|||
| 5 | WP9740848 | Screw, 8-18 X 1/2 | |
|||
| 6 | WP91770 | Hinge, Lid | |
|||
| 7 | WPW10119828 | Screw, Lid Hinge (Replaces:W10119872) | |
|||
| 8 | WPW10240513 | Strike, Lid Lock | |
|||
| 9 | WPW10273971 | Screw, 6-19 X 1/2 | |
|||
| 10 | WPW10192089 | Dispenser, Bleach | |
|||
| 11 | WPW10392041 | Bezel, Lid Lock | |
|||
| 12 | WP21258 | Bearing, Lid Hinge | |
|||
| 13 | WP90016 | Clip, Lid Lock Harness | |
|||
| 14 | W10404050 | Latch, Lid Lock Assembly (Replaces:W10238287) | |
|||
| 15 | WP8281163 | Screw 8-16 X 1/2 | |
|||
| 16 | WPW10250884 | Panel Rear | |
|||
| 17 | W10596395 | Cabinet (includes Item 22) (Replaces:W10251994) | |
|||
| 18 | W11695476 | Brace, Cabinet Top Front (Replaces:W10215098) | |
|||
| 19 | W11089573 | Brace, Cabinet Top Rear (Replaces:W10215099) | |
|||
| 20 | WP489069 | Screw, 8-18 X 3/8 (Replaces:1157158) | |
|||
| 21 | WPW10248088 | Lock, Top | |
|||
| 22 | W10739673 | Foot Assembly, Leveling (Replaces:W10335586) | |
|||
| 23 | W10215102 | Hinge, Top | |
|||
| 24 | WP489128 | Screw, 8-32 X 3/8 (Replaces:W10142728) | |
|||
| 25 | W10676061 | Cover, Harness (Replaces:W10215139) | |
|||
| 26 | W10846509 | Screw, 10-23 X 5/8 (Replaces:3400076) | |
|||
| 27 | W11244231 | Hose, Outer Drain Assembly (includes Items 28 & 29) (Replaces:W10221546) | |
|||
| 28 | WPW10280024 | U-bend, Drain Hose | |
|||
| 29 | WP356138 | Clamp, Hose | |
|||
| 30 | WPW10339879 | Cable Tie | |
|||
| 31 | WP3359452 | Nut, Locking | |
