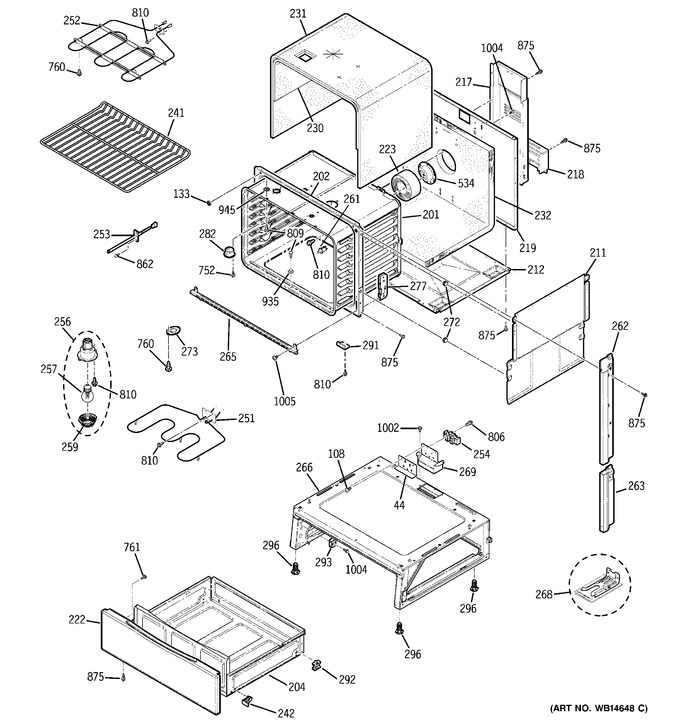

1 - Control Panel
2 - Cooktop
3 - Body Parts
4 - Door
5 - Door Lock
6 - Cooling Fan
| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 44 | WB02T10242 | Bracket |  |
|||
| 108 | WB1X5364 | Screw (cr) | |
|||
| 133 | WB01T10052 | Tape Foam | |
|||
| WB01T10022 | Frt Fr Door Bumper | |
||||
| 201 | WB63T10085 | Wrapper Ovn Cav | |
|||
| 202 | WB63T10083 | Frame Frt Lwr | |
|||
| 204 | WB55T10180 | Drawer Body Asm Mech | |
|||
| 211 | WB02T10284 | Retainer Insln Sde | |
|||
| 212 | WB02T10372 | Retainer Insln Btm | |
|||
| 217 | WB34K10049 | Cover Wire Rear | |
|||
| 218 | WB34T10054 | Cover Wire Rr Lwr | |
|||
| 219 | WB02T10377 | Retainer Insln Back | |
|||
| 222 | WB56T10286 | Panel Drawer Ss | |
|||
| 223 | WB35K5117 | Ov Insulation Support | |
|||
| 230 | WB35T10126 | Insulation Top | |
|||
| 231 | WB35T10074 | Insulation (out) | |
|||
| 232 | WB35K5116 | Insulation Back & Btm | |
|||
| 241 | WB48K5019 | Oven Rack | |
|||
| 242 | WB48T10012 | Drawer Guide | |
|||
| 251 | WB44K10009 | Element Bake | |
|||
| 252 | WB44T10043 | Unit Broil Asm (dlx) | |
|||
| 253 | WB23T10015 | Sensor Asm | |
|||
| 254 | WB17T10012 | Terminal Block Asm | |
|||
| 256 | WB08T10002 | Oven Lamp Holder Asm | |
|||
| 257 | WB08T10022 | Lamp Appliance | |
|||
| 259 | WB25T10002 | Oven Bulb Lens | |
|||
| 261 | WB24T10160 | Switch Spdt High Amp | |
|||
| 262 | WB07T10520 | Trim Vert Sde Rt (bk) | |
|||
| WB07T10521 | Trim Vert Sde Lt (bk) | |
||||
| 263 | WB07T10632 | Trim Vert Side Lt (bk) | |
|||
| WB07T10631 | Trim Vert Side Rt (bk) | |
||||
| 265 | WB07T10516 | Trim Frt Frm (bk) | |
|||
| 266 | WB39T10007 | Base Rivet Asm | |
|||
| 268 | WB02T10415 | Bracket Anti-tip Asm | |
|||
| 269 | WB17T10021 | Mount Terminal Block | |
|||
| 272 | WB02T10034 | Side Support Panel | |
|||
| 273 | WB2K5365 | Cover | |
|||
| 277 | WB10T10083 | Receiver Hinge | |
|||
| 282 | WB28T10075 | Vent Inlet Duct | |
|||
| WB28T10073 | Tube Vent | |
||||
| 291 | WB2X9152 | Cover | |
|||
| 292 | WB48T10030 | Rear Drawer Support | |
|||
| 293 | WB48T10013 | Frt Drawer Support | |
|||
| 296 | WB02X10521 | Leg Leveler | |
|||
| 534 | WB02T10249 | Support Ovn Cav | |
|||
| 752 | WB1K5200 | Screw | |
|||
| 760 | WB1K5028 | Screw | |
|||
| 761 | WB1K5062 | Screw St8-18x.500trbrni | |
|||
| WB1K5029 | Screw-black | |
||||
| WB01T10110 | Scr 8-18x.450 Ab Flt20 S | |
||||
| 806 | WH2X1186 | Scr 8-18 Ab Ihw 5/8 S | |
|||
| 809 | WB1X1137 | Screw | |
|||
| 810 | WB1X1253 | Screw | |
|||
| 862 | WB1X1178 | Screw | |
|||
| 875 | WH2X930 | Screw 8-18 Ab Hxw 3/8 | |
|||
| 935 | WB1K5174 | Washer | |
|||
| 945 | WB1K5046 | Lockwasher | |
|||
| 1002 | WB01T10017 | Scr 8-18 Ab Ihw 3/8 S Ns | |
|||
| 1004 | WH2X941 | Scr 8-15 A Hxw 7/8 S | |
|||
| 1005 | WB01T10008 | Scr 10-32 Tr T | |
