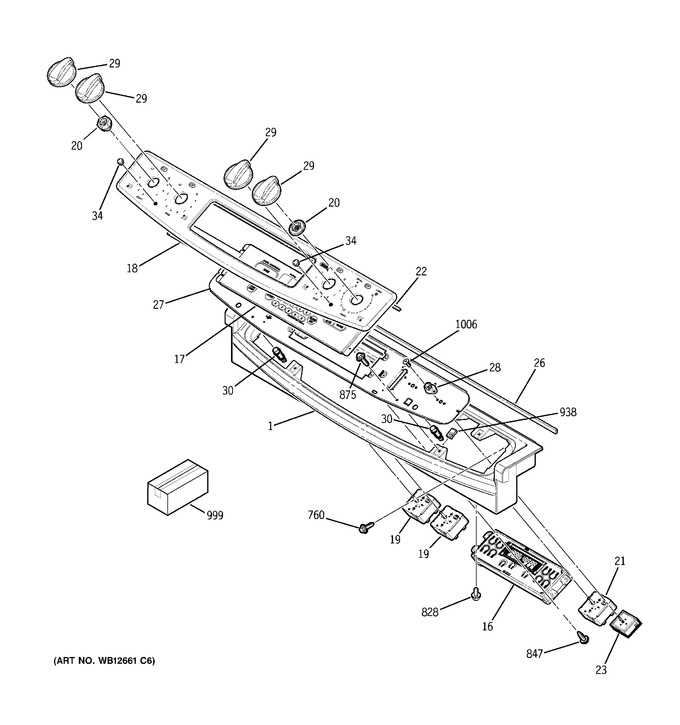

Diagram #	Part Number		Description	Series	Find a Video
1	WB36T10666		Panel Cntl Asm
16	WB27T10416		Oven Control
17	WB27T11076		Keypanel Supt Asm (bk)
18	WB27T11079		Panel Overlay Asm
19	WB24T10026		Inf Switch Cntl (2000w)
20	WB2K5238		Switch Bracket
	WB02T10046		Crystal Retainer
21	WB24T10012		Inf Switch Cntl (wm)
22	WB02X10744		Gasket Faceplate
23	WB24T10134		Switch Infinite Control
26	WB02X10742		Control Panel Gasket
27	WB36T10568		Insert Cntl Pnl
28	WB02T10047		Crystal Mount
29	WB03T10284		Knob Infinite (ss)
30	WB25T10048		Light Indicator
34	WB25T10022		Lens Snap-in
760	WB1K5028		Screw
828	WB1X1141		Screw
847	WB02T10324		Scr 6-20 Gxb Ihxw 3/8 Ni
875	WH2X930		Screw 8-18 Ab Hxw 3/8
938	WB1K5209		Clip
999	31-10651		Instructions Install
	31-10671		Instruction Install
	31-10673		Instruction Install
	31-14346		Manual Mini & Wd Asm
	31-14813		Manual Use & Care
	WB64X93		Glass Cleaner
1006	WB01T10053		Scr 8-32 Tpt Flr .270
