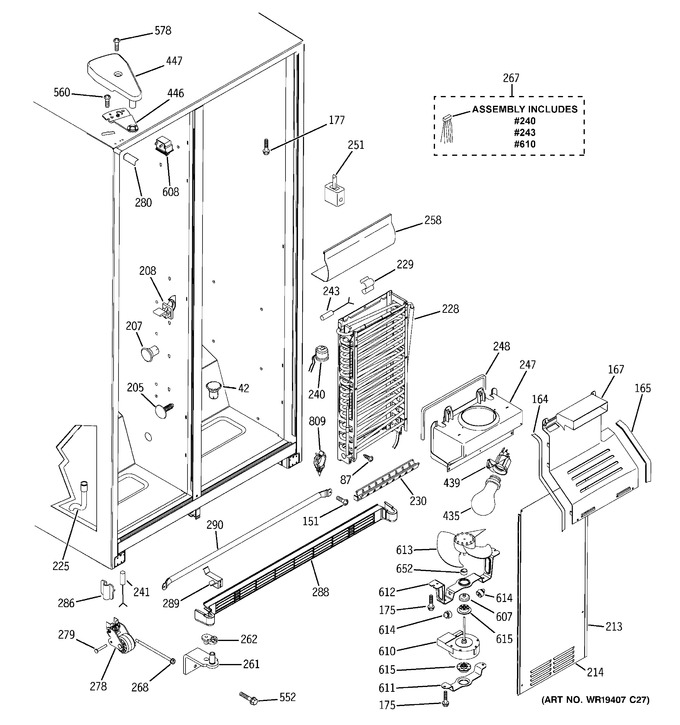

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 42 | WR2X3139 | Plug Button |  |
|||
| 87 | WZ04X0241 | Scr 8-18 Ab Pa 1/2 Ss | |
|||
| 151 | WR1X1554 | Scr 8-18 Ab Ihxw 1/2 S | |
|||
| 164 | WR14X10049 | Gasket Duct Fz | |
|||
| 165 | WR14X10048 | Gasket Duct Fz | |
|||
| 167 | WR17X12081 | Duct Air Fz | |
|||
| 175 | WR01X10035 | Scr 8-18 Ab Ihw 5/8 S | |
|||
| 177 | WR01X10606 | Scr 8-18 Ca Hx 1/2 S | |
|||
| 205 | WR01X10318 | Push Fastener | |
|||
| 207 | WR2X4676 | Grommet Shelf | |
|||
| 208 | WR02X11561 | Support Fz | |
|||
| 213 | WR14X10045 | Gasket Cover Evap | |
|||
| 214 | WR17X11144 | Cover Evap | |
|||
| 225 | WR02X11476 | Tube Drain | |
|||
| 228 | WR85X10022 | Evap Repl Kit | |
|||
| 229 | WR02X10552 | Clip Evap Thermistor | |
|||
| 230 | WR51X10055 | Heater & Bracket Asm | |
|||
| 240 | WR50X10068 | Thermostat Def | |
|||
| 241 | WR50X10027 | Sensor Temp | |
|||
| 243 | WR50X10067 | Sensor Temperature | |
|||
| 247 | WR17X12080 | Orifice Evap Fan | |
|||
| 248 | WR14X10050 | Gasket Foam | |
|||
| 251 | WR02X10632 | Twist Support | |
|||
| 258 | WR17X10724 | Shield Light Fz | |
|||
| 261 | WR13X10313 | Fz Hinge Btm & Pin Asm | |
|||
| 262 | WR02X11743 | Hinge Cam Riser | |
|||
| 267 | WR23X10467 | Harness Fz Fan Htr | |
|||
| WR23X10476 | Harness Fz Fan Htr | |
||||
| 268 | WR01X10199 | Screw Mobility | |
|||
| 278 | WR02X10572 | Mobility Front Asm | |
|||
| WR02X12279 | Mobility Front Asm | |
||||
| 279 | WR02X12254 | Pin Pivot Asm | |
|||
| 280 | WR02X10610 | Cap Corner Oc Bk | |
|||
| 286 | WR17X10728 | Thermistor Cover Fz | |
|||
| WR1X1815 | Leveling Nut | |
||||
| 288 | WR74X10151 | Grille Base Asm Bk | |
|||
| 289 | WR02X10560 | Clip Grille | |
|||
| 290 | WR17X11428 | Bar Curb Handling | |
|||
| 435 | 60A | Lamp 60w Appl | |
|||
| 439 | WR02X10591 | Socket & Terminal | |
|||
| 446 | WR13X10286 | Hinge Top & Pin Asm Fz | |
|||
| 447 | WR02X11482 | Cover Hinge Bk | |
|||
| 552 | WR01X10600 | Scr 12-24 Tt Hx .811 S Z | |
|||
| 560 | WR01X10195 | Scr 12-24 Ca Hx 7/8 S | |
|||
| 578 | WR01X10379 | Screw Hinge Cover | |
|||
| 607 | WR02X10322 | Cap Dust | |
|||
| 608 | WR23X10179 | Switch Light | |
|||
| 610 | WR60X10154 | Motor Evap Dc | |
|||
| 611 | WR02X11622 | Bracket Evap Fan Btm | |
|||
| 612 | WR02X11124 | Bracket Evap Fan Top | |
|||
| 613 | WR60X10208 | Blade Evap Fan Asm | |
|||
| 614 | WR02X10540 | Bumper Lid | |
|||
| 615 | WR02X11331 | Grommet Evap Fan | |
|||
| 652 | WR02X12149 | Ring Compression | |
|||
| 809 | WR1X1936 | Fastener Water Tube | |
