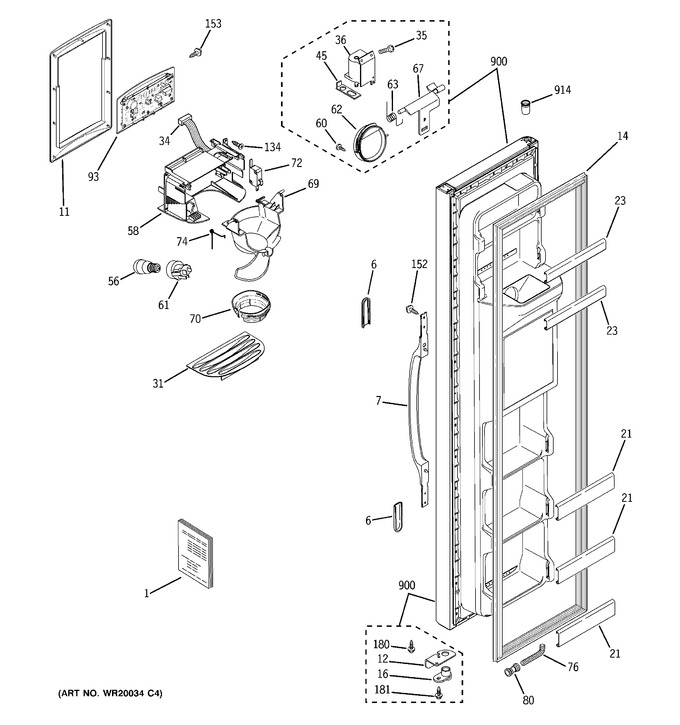

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 39-60402 | Pm Guide Owners |  |
|||
| WR23X10514 | Harness Comp Electricals | |
||||
| 31-51663 | Pm Mini Manual Wiring | |
||||
| 6 | WR12X10203 | Tail Handle Sxs Bk | |
|||
| 7 | WR12X10820 | Handle Sxs | |
|||
| 11 | WR38X10302 | Recess Trim Bk | |
|||
| 12 | WR02X11466 | Plate Door Stop Fz | |
|||
| 14 | WR24X10133 | Gasket D00r Fz | |
|||
| 16 | WR02X11478 | Cam & Thimble Fz | |
|||
| 21 | WR17X11512 | Front Door Shelf | |
|||
| 23 | WR17X11514 | Front Door Shelf | |
|||
| 31 | WR17X10745 | Grill Recess Bk | |
|||
| 34 | WR23X10480 | Harness Recess Disp | |
|||
| 35 | WR01X10221 | Scr 8-10 Pl Pnp 1/2 S | |
|||
| 36 | WR62X10055 | Solenoid Asm | |
|||
| 45 | WR2X8818 | Retainer Recess Door | |
|||
| 56 | WR02X12208 | Light Dispenser | |
|||
| WR02X10675 | Bulb Recs 12v | |
||||
| 58 | WR17X11170 | Housing Shield Disp | |
|||
| 60 | WR01X10377 | Scr 4-10 Pl Pnp 5/16 S5h | |
|||
| 61 | WR2X9561 | Lamp Socket | |
|||
| 62 | WR17X11653 | Door Recess Asm | |
|||
| 63 | WR02X10585 | Spring Recess Door | |
|||
| 67 | WR17X10706 | Crank Door Recess | |
|||
| 69 | WR17X11267 | Funnel Ice Disp Bk | |
|||
| 70 | WR17X11268 | Extension Funnel Ice Bk | |
|||
| 72 | WR23X10224 | Switch | |
|||
| 74 | WR02X10584 | Spring Funnel | |
|||
| 76 | WR2X8933 | Sleeve Water Line | |
|||
| 80 | WR02X11330 | Union Connector | |
|||
| 93 | WR55X10566 | Combined Hmi Asm Bk | |
|||
| 134 | WR01X10616 | Scr 6-10 Pl Flp 1/2 S | |
|||
| 152 | WR01X10596 | Scr 8-18 Ab Fltr 5/8 S | |
|||
| 153 | WR01X10597 | Scr 6-20 B Fhp 3/8 S | |
|||
| 180 | WR01X10630 | Tornillo 9-19 Hi/lo Trp | |
|||
| WR01X10605 | Scr 6-22 Pl Ihxw 3/8 S | |
||||
| 181 | WR01X10215 | Scr 10-32 Tt Hxw 3/4 S | |
|||
| 900 | WR78X11756 | Door Asm Foam Fz Sa | |
|||
| 914 | WR01X10200 | Thimble Door Top | |
