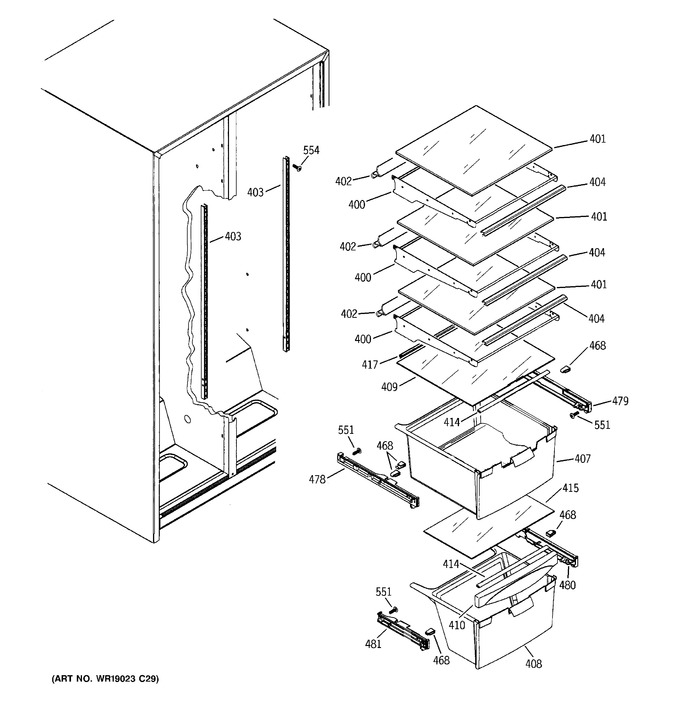

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 400 | WR71X10237 | Shelf Cant |  |
|||
| 401 | WR32X10591 | Shelf Cant Glass | |
|||
| 402 | WR38X10379 | Reflector Glass Shelf | |
|||
| 403 | WR71X2588 | Track Cant Shelf | |
|||
| 404 | WR38X10378 | Trim Glass Shelf | |
|||
| 407 | WR32X10137 | Pan Veg | |
|||
| 408 | WR32X10138 | Pan Meat | |
|||
| 409 | WR32X10592 | Cover Pan Glass | |
|||
| 410 | WR17X12193 | Handle Pan Meat | |
|||
| 415 | WR32X10593 | Cover Pan Glass | |
|||
| 417 | WR14X10056 | Gasket Shield Lower | |
|||
| 468 | WR1X2048 | Bearing Slide | |
|||
| 478 | WR72X239 | Slide Asm Lh | |
|||
| 479 | WR72X240 | Slide Asm Rh | |
|||
| 480 | WR72X242 | Slide Asm Rh | |
|||
| 481 | WR72X241 | Slide Asm Lh | |
|||
| 551 | WZ04X0244 | Scr 8-18 Ab Rndw 5/8 Ss | |
|||
| 554 | WR01X10601 | Scr 10-24 Tt Ihxw 1.000 | |
