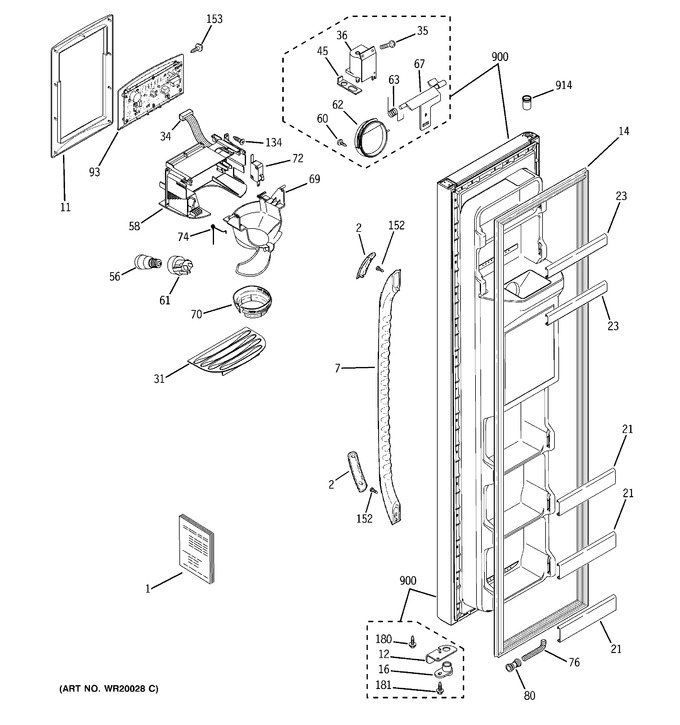

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 49-60514 | Pm Guide Owners |  |
|||
| 31-61716 | Pm Mini Manual Wiring | |
||||
| 2 | WR12X10816 | Cap Handle | |
|||
| WR12X10818 | Cap Handle | |
||||
| WR12X10817 | Cap Handle | |
||||
| 7 | WR12X10814 | Handle Sxs Door Bb | |
|||
| WR12X10813 | Handle Sxs Door Ww | |
||||
| WR12X10815 | Handle Sxs Door Bq | |
||||
| 11 | WR38X10301 | Recess Trim Wh | |
|||
| WR38X10302 | Recess Trim Bk | |
||||
| WR38X10300 | Recess Trim Bq | |
||||
| 12 | WR02X11466 | Plate Door Stop Fz | |
|||
| WR02X11475 | Plate Door Stop Fz | |
||||
| WR02X10576 | Plate Door Stop Fz | |
||||
| 14 | WR24X10135 | Gasket Door Fz | |
|||
| WR24X10131 | Gasket Door Fz | |
||||
| 16 | WR02X11478 | Cam & Thimble Fz | |
|||
| 21 | WR17X12066 | Front Door Shelf Fz | |
|||
| 23 | WR17X12072 | Front Door Shelf Fz | |
|||
| 31 | WR17X10745 | Grill Recess Bk | |
|||
| WR17X10751 | Grill Recess Bq | |
||||
| WR17X10712 | Grill Recess Wh | |
||||
| 34 | WR23X10525 | Harness Recess Disp | |
|||
| 35 | WR01X10649 | Scr 8-10 Pl Pnp 1/2 S | |
|||
| 36 | WR62X10055 | Solenoid Asm | |
|||
| 45 | WR2X8818 | Retainer Recess Door | |
|||
| 56 | WR02X12208 | Light Dispenser | |
|||
| 58 | WR17X12152 | Housing Shield Disp | |
|||
| 60 | WR01X10656 | Scr 4-10 Pl Pnp 5/16 S5h | |
|||
| 61 | WR2X9561 | Lamp Socket | |
|||
| 62 | WR17X11653 | Door Recess Asm | |
|||
| 63 | WR02X10585 | Spring Recess Door | |
|||
| 67 | WR17X10706 | Crank Door Recess | |
|||
| 69 | WR17X11269 | Funnel Ice Disp Bq | |
|||
| WR17X11264 | Funnel Ice Disp Wh | |
||||
| WR17X11267 | Funnel Ice Disp Bk | |
||||
| 72 | WR23X10224 | Switch | |
|||
| 74 | WR02X10584 | Spring Funnel | |
|||
| 76 | WR2X8933 | Sleeve Water Line | |
|||
| 80 | WR02X11330 | Union Connector Reg | |
|||
| 93 | WR55X10562 | Combined Hmi Asm Bk | |
|||
| WR55X10561 | Combined Hmi Asm Wh | |
||||
| WR55X10563 | Combined Hmi Asm Bq | |
||||
| 134 | WR01X10616 | Scr 6-10 Pl Flp 1/2 S | |
|||
| 152 | WR01X10596 | Scr 8-18 Ab Fltr 5/8 S | |
|||
| 153 | WR1X1505 | Screw | |
|||
| 180 | WR01X10742 | Scr 6-22 Pl Ihxw 3/8 S | |
|||
| 181 | WR01X10655 | Scr 10-32 F Hxw 3/4 S | |
|||
| 900 | WR78X11704 | Door Asm Foam Fz Bk | |
|||
| WR78X11705 | Door Asm Foam Fz Wh | |
||||
| WR78X11707 | Door Asm Foam Fz Bq | |
||||
| 914 | WR01X10200 | Thimble Door Top | |
