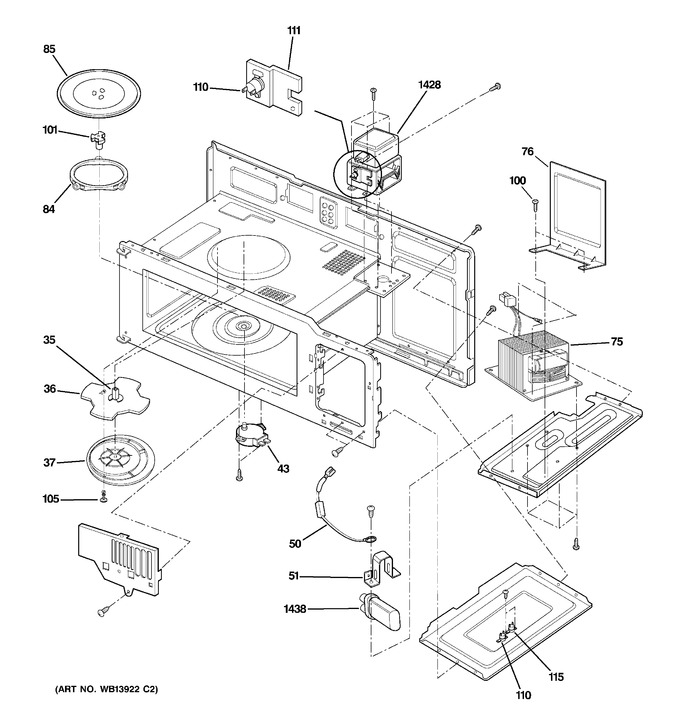

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 35 | WB02X11261 | Holder Stirrer Fan |  |
|||
| 36 | WB06X10706 | Fan | |
|||
| 37 | WB06X10712 | Cover Stirrer Fan | |
|||
| 43 | WB26X10154 | Motor(circ),synchronous | |
|||
| 50 | WB27X10930 | Diode | |
|||
| 51 | WB06X10561 | Bracket,capacitor | |
|||
| 75 | WB27X10929 | Transformer | |
|||
| 76 | WB02X11340 | Hvt Bracket Asm | |
|||
| 84 | WB06X10705 | Rotating Ring Asm | |
|||
| 85 | WB49X10129 | Tray,glass | |
|||
| 100 | WB02X10777 | Wb02x10745 | |
|||
| 101 | WB06X10704 | Shaft Turntable | |
|||
| 105 | WB01X10055 | Rivet Assy All | |
|||
| 110 | WB27X10788 | Thermostat | |
|||
| 111 | WB06X10570 | Bracket,misc | |
|||
| 115 | WB27X10932 | Thermostat, Vent | |
|||
| 1428 | WB27X10927 | Magnetron | |
|||
| 1438 | WB27X10701 | Capacitor, H.v | |
