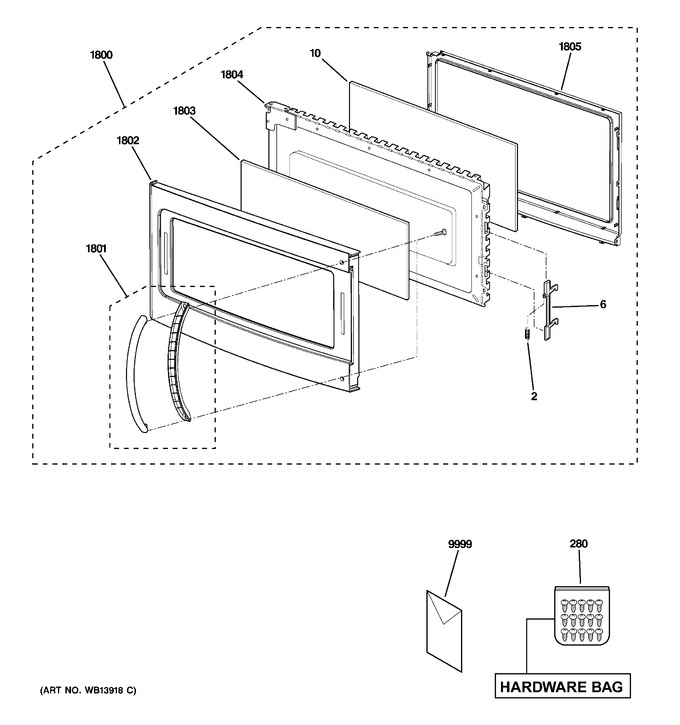

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
2 | WB09X10017 | Spring Latch Door | ||||
6 | WB02X11096 | Latch | ||||
10 | WB36X10318 | Seal Tape | ||||
280 | WB01X10305 | Otr Hardware Asm Bag | ||||
1800 | WB56X10705 | Door Asm | ||||
1801 | WB15X10217 | Handle Asm | ||||
1802 | WB55X10847 | Door Panel | ||||
1803 | WB36X10330 | Window | ||||
1804 | WB55X10815 | Door Frame Asm | ||||
1805 | WB55X10845 | Cover Choke | ||||
9999 | 49-40528 | Use & Care | ||||
31-40458 | Mini Manual | |||||
WB02X10776 | Charcoal Filter | |||||
49-40529 | Instructions Install |
