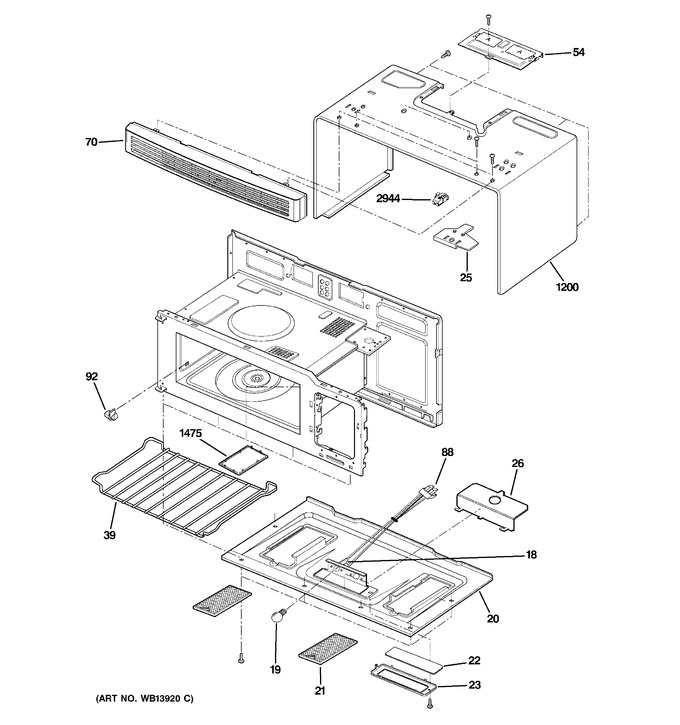

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 18 | WB08X10022 | Socket Lamp |  |
|||
| 19 | WB36X10328 | Lamp Drawing | |
|||
| 20 | WB56X10673 | Base Plate | |
|||
| 21 | WB06X10359 | Filter Grease | |
|||
| 22 | WB36X10293 | Glass | |
|||
| 23 | WB06X10691 | Bracket Lamp | |
|||
| 25 | WB06X10709 | Bracket Asm | |
|||
| 26 | WB06X10681 | Cover Lamp | |
|||
| 39 | WB48X10054 | Shelf | |
|||
| 54 | WB06X10562 | Mount | |
|||
| 70 | WB07X11011 | Grille Vent | |
|||
| 88 | WB18X10339 | Harness | |
|||
| 92 | WB02X11262 | Holder Cook Auxiliary | |
|||
| 1200 | WB56X10815 | Case,flat | |
|||
| 1475 | WB06X10601 | Canopy Resin | |
|||
| 2944 | WB01X10124 | Nut Assy | |
