1 - Gas & Burner Parts


2 - Control Panel & Cooktop


3 - Body Parts


4 - Door & Drawer Parts

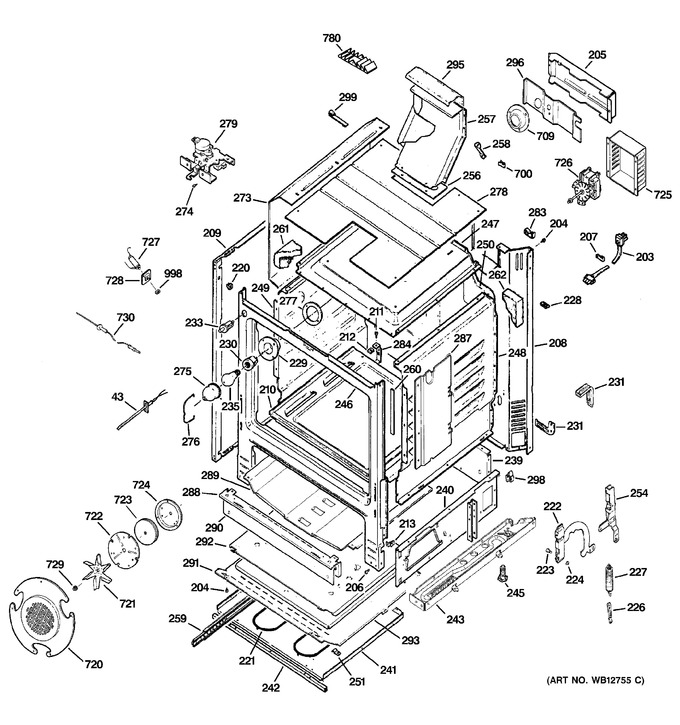

Diagram #	Part Number		Description	Series	Find a Video
43	WB20K4		Sensor
203	WB18K10022		Line Cord
204	WB1K42		Screw (blk)
	WZ04X0345		Screw 8-18x5/8 Hxw
205	WB34K6		Cover Back Panel
206	WB1K21		Screw
207	WB2K36		Clamp Cable
208	WB63K10020		Range Back
	WB35K10039		Insulation Motor
209	WB63K52		Panel Side (bk)
210	WB35K10035		Bottom Oven
211	WB1K5		Screw-mtg Oven Bottom
212	WB1K2		Speednut
213	WB1K3		Nut Speed
220	WB2K8		Grommet
221	WB44K10006		Heating Element
222	WB10K12		Hinge Asm Guide
223	WB2X6195		Pin Hinge Door
224	WB2X1082		Ring Retaining
226	WB2K11		Hook Door Spring
227	WB9K5		Spring Door
228	WB2X7066		Clip Wire
229	WB8K1		Housing Receptacle
230	WB08T10004		Receptacle Push In
231	WB2K12		Arm Anti Tip
	WB2K20		Bracket Asm Anti-tip
233	WB24K10020		Oven Light Switch
	WB24X5316		Oven Light Switch
235	STD372401		Oven Lamp
239	WB63K25		Panel Rear Broil
240	WB63K2		Panel Side Broil Rt
	WB63K3		Panel Side Broil Lft
241	WB63K4		Bottom Range
242	WB63K5		Brace Bottom
243	WB63K10027		Base Support Left
	WB63K10028		Base Support Right
245	WB02X10521		Leg Leveler
246	WB63K10018		Front Frame Asm
247	WB53K10015		Oven Top
248	WB53K2		Oven Side Right
249	WB53K10008		Oven Side Left
250	WB53K10009		Oven Back
251	WB02K10023		Clamp-heat Element
254	WB1K53		Screw Mtg Hinge (torx)
	WB10K14		Support Rivet Lft
	WB10K13		Support Rivet Rt
256	WB32K1		Gasket Vent
257	WB38K10008		Vent Asm
258	WB38K2		Brace Vent
259	WB39K10020		Slide & Bearing Assembly
	WB39K10021		Slide & Bearing Assembly
260	WB32K2		Gasket Oven Seal Lg
261	WB35K7		Insulation Oven Wrap
262	WB35K10012		Insulation Oven Back
273	WB53K11		Guard Insul. Oven Right
	WB53K12		Guard Insulation Left
274	WB1K44		Screw Latch
275	WB8K5		Glass Oven Lamp
276	WB2K27		Bail
277	WB32K5		Gasket Oven Light
278	NOT-STOCKED		Guardtop Insulation
279	WB02K10010		Latch
	WB02K10011		Bracket-latch
283	WB2K31		Clip Cable
284	WB2K32		Bracket Support
287	WB34K30		Guard Radiation Rt
	WB34K31		Guard Radiation Lft
288	WB63K15		Brace
289	WB34K11		Shield Heat Lower
290	WB34K12		Shield Radiation
291	WB63K16		Guard Bottom
292	WB63K17		Guard Bottom Inner
293	WB63K18		Guard Bottom Middle
295	WB35K10036		Insulation Vent
296	WB34K13		Shield Heat Inner
298	WB2K37		Clip Spacer
299	WB2K38		Clip Wire
700	WB2K30		Retainer-insulation
709	WB8K4		Retainer Insulation Lamp
720	WB34K10037		Fan Cover Front
721	WB2X8351		Fan Blade
722	WB34K10038		Fan Cover Back
723	WB35K10038		Fan Insulator
724	WB02K10034		Fan Support
725	WB34K10065		Cover Motor
726	WB26K10001		Fan Motor
727	WB34K5140		Probe Cover
	WB18K10006		Harness-meat Probe
728	WB2X8309		Probe Cover
729	WB01K10022		Nut
730	WB20X5064		Thermistor Probe
780	WB38K10009		Diffuser Vent
998	WB1X5572		Nut
