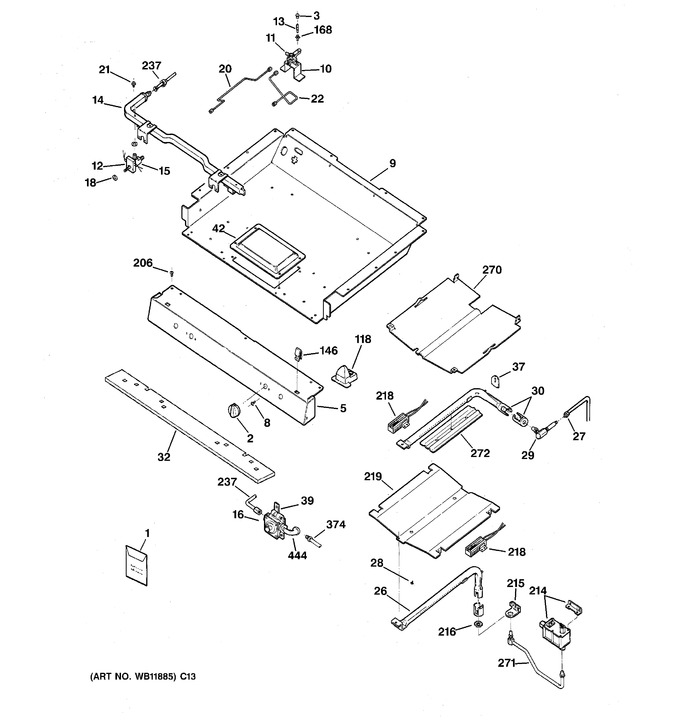

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 49-85038 | Manual Use & Care |  |
|||
| WB28K10144 | Conversion Kit Lp | |
||||
| WB64X93 | Glass Cleaner | |
||||
| 31-21066 | Pm Mini Manual/elec | |
||||
| 2 | WB03K10138 | Knob -top Burners (blk) | |
|||
| 3 | WB28K10151 | Orifice Spud Lp 1.02 Mm | |
|||
| WB28K10152 | Orifice Spud Lp 0.74 Mm | |
||||
| WB28K10146 | Orifice Spud Ng 1.61 Mm | |
||||
| WB28K10148 | Orifice Spud Ng 1.12 Mm | |
||||
| WB28K10147 | Orifice Spud Ng 1.93 Mm | |
||||
| WB28K10145 | Orifice Spud Ng 1.50 Mm | |
||||
| WB28K10150 | Orifice Spud Lp 0.90 Mm | |
||||
| 5 | WB36K10312 | Panel Manifold (ss) | |
|||
| 8 | WB01K10002 | Screw 8-32 | |
|||
| 9 | WB63K10037 | Box Burner Sp | |
|||
| 10 | WB02K10035 | Bracket Burner Box | |
|||
| 11 | WB28K10142 | Orifice Holder Bkt Med | |
|||
| WB28K10141 | Orifice Holder Bkt Small | |
||||
| WB28K10149 | Orifice Holder Bkt X-lg | |
||||
| WB28K10143 | Orifice Holder Bkt Large | |
||||
| 12 | WB24K10002 | Switch-valve Service | |
|||
| 13 | WB13K10011 | Igniter-top Burners | |
|||
| 14 | WB28K10243 | Manifold Pipe | |
|||
| WB28K10132 | Tube - Manifold | |
||||
| 15 | WB21K10012 | Valve Burner 270 Hi-cap | |
|||
| WB28K10098 | Valve Front Lft & Rt | |
||||
| WB28K10096 | Valve Burner Rt Rr | |
||||
| WB28K10097 | Valve Burner Lft Rr | |
||||
| 16 | WB19K10001 | Regulator Pressure | |
|||
| 18 | WB2K24 | Cover Valve | |
|||
| 20 | WB28K10139 | Tube Burner Lf Rear | |
|||
| WB28K10140 | Tube Burner Rg Rear | |
||||
| 21 | WB1K83 | Screw-mtg Valve Burner | |
|||
| 22 | WB28K10137 | Tube Burner Left Front | |
|||
| WB28K10138 | Tube Burner Rg Front | |
||||
| 26 | WB16K10035 | Burner Bake | |
|||
| 27 | WB28K55 | Tube Burner Supply | |
|||
| 28 | WB1K50 | Screw Mtg Igniter | |
|||
| 29 | WB28K10019 | Orifice-broil | |
|||
| WB28K10018 | Elbow Hi-broil | |
||||
| 30 | WB16K10004 | Burner Broil | |
|||
| 32 | WB35K10026 | Insulation Burner Box | |
|||
| 37 | WB34K14 | Cover Igniter | |
|||
| 39 | WB2K88 | Bracket Regulator | |
|||
| 42 | WB63K22 | Cover Burner Box | |
|||
| 118 | WB14K10005 | Pin Locator | |
|||
| 146 | WB2K52 | Clip Rangetop | |
|||
| 168 | WB01K10007 | Clip-electrode | |
|||
| 206 | WB1K21 | Screw | |
|||
| 214 | WB19K36 | Valve Safety | |
|||
| 215 | WB2K65 | Bracket Safety Valve | |
|||
| 216 | WB1K6 | Nut Lock | |
|||
| 218 | WB13K21 | Igniter-oven Bake/broil | |
|||
| 219 | WB49K44 | Flame Spreader | |
|||
| 237 | WB28K10021 | Tube Manifold Supply | |
|||
| 270 | WB49K10003 | Deflector | |
|||
| 271 | WB28K60 | Tube Burner Supply | |
|||
| WB28K202 | Orifice Spud Burner Bake | |
||||
| 272 | WB34K10 | Shield Broil | |
|||
| 374 | WB28K150 | Tube Valve Supply | |
|||
| 444 | WB28K61 | Elbow 90 Degrees | |
