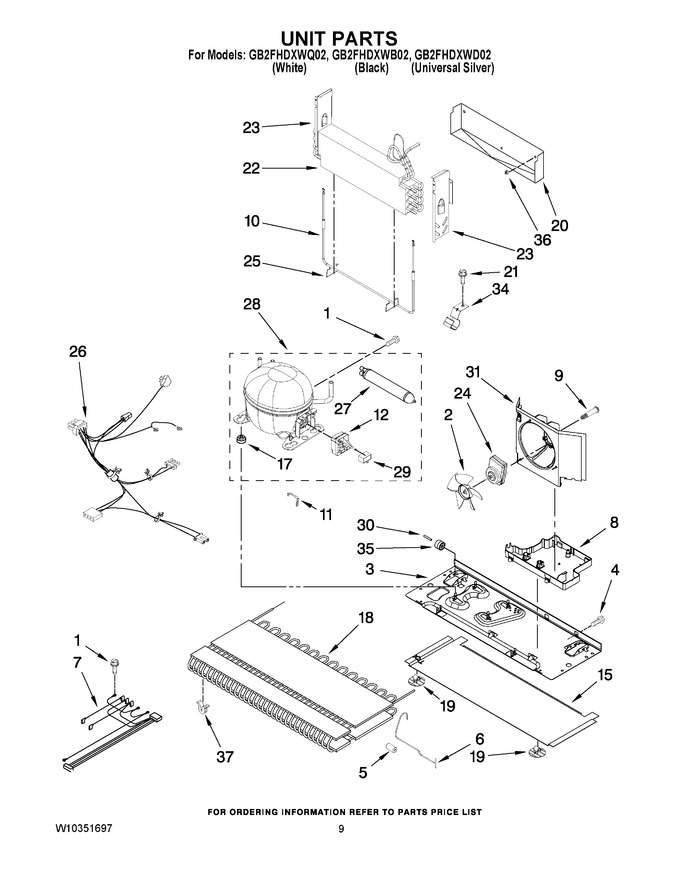

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |  |
|||
| 2 | WP12825803 | Blade, Fan | |
|||
| 3 | W10480110 | Basepan (Replaces:W10210983) | |
|||
| 4 | 67006425 | Screw (Replaces:12990511) | |
|||
| 5 | W10852725 | Grommet-condenser (Replaces:2319835) | |
|||
| 6 | W10296294 | Tube, Discharge | |
|||
| 7 | WPW10290745 | Harness, Evap (incl.heater) | |
|||
| 8 | WPW10655367 | Pan, Drain (Replaces:W10296784) | |
|||
| 9 | W10216919 | Screw, Shoulder | |
|||
| 10 | WP12729128 | Evaporator Heater | |
|||
| 11 | W11092534 | Strap, Bale (Replaces:W10216075) | |
|||
| 12 | W10293291 | Start Protect, Combo (production) | |
|||
| WPW10194431 | Start Protect, Combo (service) | |
||||
| 15 | W10367415 | Extension, Basepan (Replaces:W10206337) | |
|||
| 17 | WPW10169124 | Grommet (4) (Replaces:10835903SP) | |
|||
| 18 | WPW10346420 | Condenser (Replaces:W10135027) | |
|||
| 19 | W10206339 | Fastener, Basepan Extension | |
|||
| 20 | WPW10292802 | Tray, Drip | |
|||
| 21 | WP33001882 | Screw (Replaces:12990701) | |
|||
| 22 | W11459354 | Evaporator (Replaces:W10317013) | |
|||
| 23 | 12225602 | Dam (left Side) | |
|||
| 12225702 | Dam (right Side) | |
||||
| 24 | W11613295 | Motor, Fan (Replaces:W10239053) | |
|||
| 25 | 10428101 | Clip, Heater | |
|||
| 26 | WPW10234024 | Harness, Unit | |
|||
| 27 | WPW10143759 | Drier | |
|||
| 28 | W10233960 | Compressor Kit (contains Items 12, 17, 27, & 29) (Replaces:W10187125) | |
|||
| 29 | WPW10662129 | Capacitor (Replaces:2264017) | |
|||
| 30 | 67006434 | Axle, Roller (Replaces:12477202) | |
|||
| 31 | W11556315 | Shroud (Replaces:W10189184) | |
|||
| 34 | W10281329 | Clip, Drier | |
|||
| 35 | WP67005149 | Roller (2) (Replaces:12477102) | |
|||
| 36 | 10623002 | Clip, Evap (2) | |
|||
| 37 | WPW10137529 | Grommet (4) | |
|||
| NI | WP978025 | Valve, Access (1/4``) | |
|||
| 978026 | Valve, Access (5/16``) | |
||||
| 978027 | Valve, Access (3/8``) | |
||||
| 978028 | Valve, Access (1/2) | |
||||
| 978029 | Valve Access (5/8``) | |
||||
| 978030 | Valve, Access (3/4``) | |
||||
| 876764 | Valve, Access(3/16``) | |
||||
| N/P | Refrigerant Charge (5.25 Ozs.(r-134a)) | |
