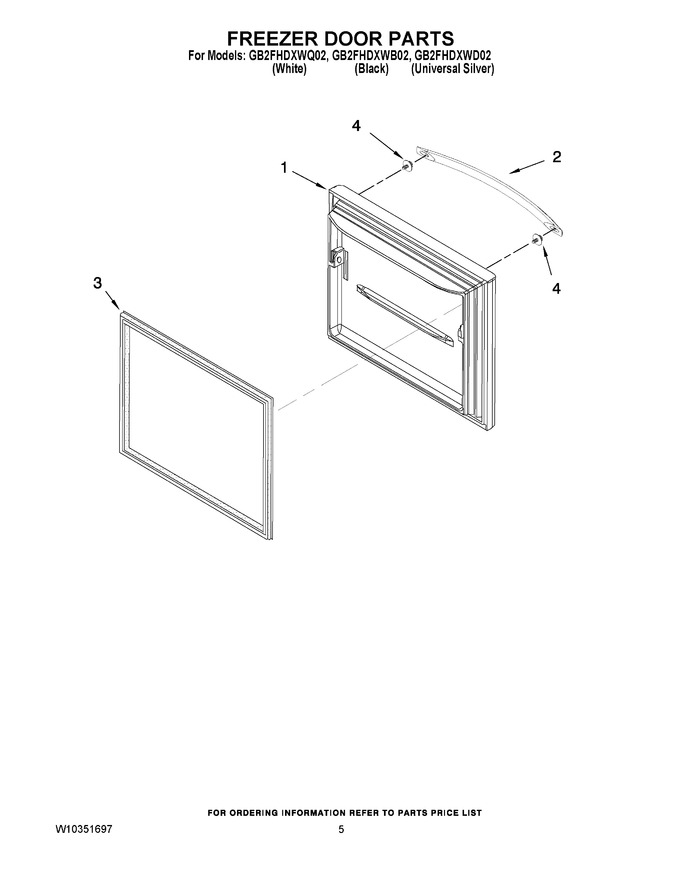

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 13092230W | Door, Freezer (white) | ||||
13092230B | Door, Freezer (black) | |||||
13092249DQ | Door, Freezer (universal Silver) (Replaces:13092249D) | |||||
2 | WPW10222984K | Handle, Door (white) (Replaces:W10222984N) | ||||
W11351146 | Handle, Door (black) (Replaces:W10222985N) | |||||
W11351147 | Handle, Door (stainless Steel) (Replaces:W10223019N) | |||||
3 | W10443315 | Gasket, Door (white) (Replaces:W10164036) | ||||
WPW10436250 | Gasket, Door (black) (Replaces:W10164037) | |||||
4 | WP12992902 | Screw, Handle |
