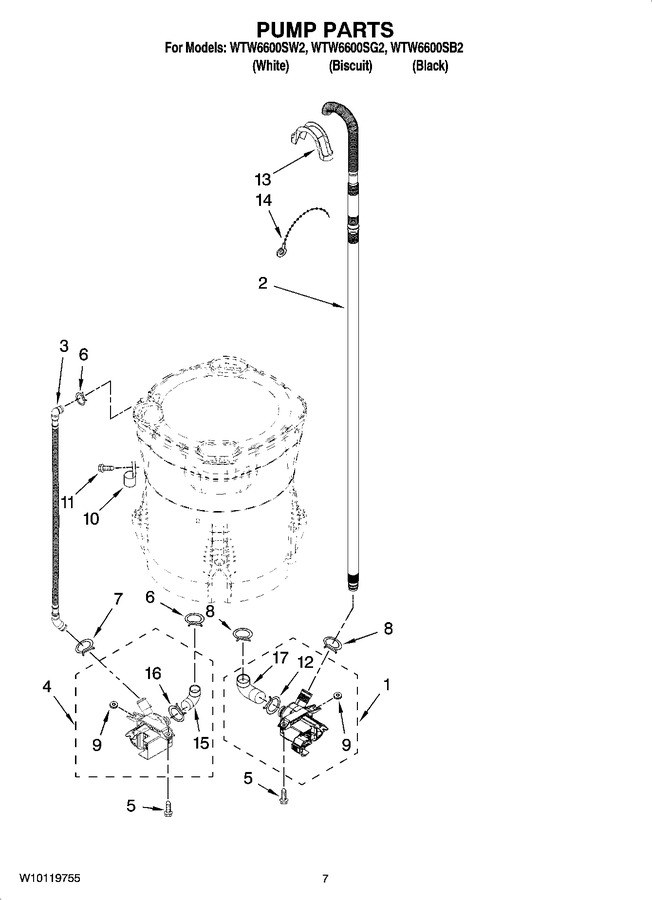

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10536347 | Pump Assembly, Drain (Replaces:W10049390) | ||||
2 | 280190 | Hose, Drain (Replaces:8571715) | ||||
3 | WP8543774 | Hose, Recirc | ||||
4 | WPW10233462 | Pump Assembly, Recirc (Replaces:W10049400) | ||||
5 | WPW10004910 | Screw, 10-14 X 1.000 (Replaces:8534063) | ||||
6 | WP285655 | Clamp, Hose (Replaces:370449) | ||||
7 | WP8269146 | Clamp, Hose | ||||
8 | WP285655 | Clamp, Hose (Replaces:8317496) | ||||
9 | 280155 | Grommet, Pump Mounting (4) (Replaces:8182771) | ||||
10 | 8534021 | Clamp, Recirc Hose Retainer | ||||
11 | WPW10109200 | Screw, 10-16 X 3/4 (Replaces:8533943) | ||||
12 | WP285655 | Clamp, Drain Pump Hose (Replaces:8182768) | ||||
13 | WP8576642 | Retainer, Drain Hose | ||||
14 | WPW10339879 | Cable Tie (Replaces:3347868) | ||||
15 | WP8182769 | Hose, Recirc Pump | ||||
16 | WP3367052 | Clamp, Recirc Pump Hose (Replaces:8182770) | ||||
17 | WP8182767 | Hose, Drain Pump | ||||
WP285195 | Sealer, Gasket (20 Fl. Oz.) (6 Ml) | |||||
WP384496 | Coupling, Hose | |||||
4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) | |||||
786032 | Paint, Bulk (1 Qt.) (black (uncut)) | |||||
285442 | Connector Kit, Plastic Drain Hose | |||||
285321 | Sleeve Kit, (contains 2 Sleeves) | |||||
285320 | Siphon Break Kit | |||||
367031 | Drain Protector | |||||
4392901 | Paint, Pressurized Spray (12oz.) (biscuit) | |||||
72017 | Paint, Touch-up 1/2 Oz. (white) | |||||
72032 | Paint, Touch-up 1/2 Oz. (black) | |||||
4392899 | Paint, Touch-up (1/2oz.) (biscuit) | |||||
350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) | |||||
350930 | Paint, Pressurized Spray (12 Oz.) White | |||||
786020 | Paint, Pressurized Spray (12 Oz.) (black) | |||||
799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
