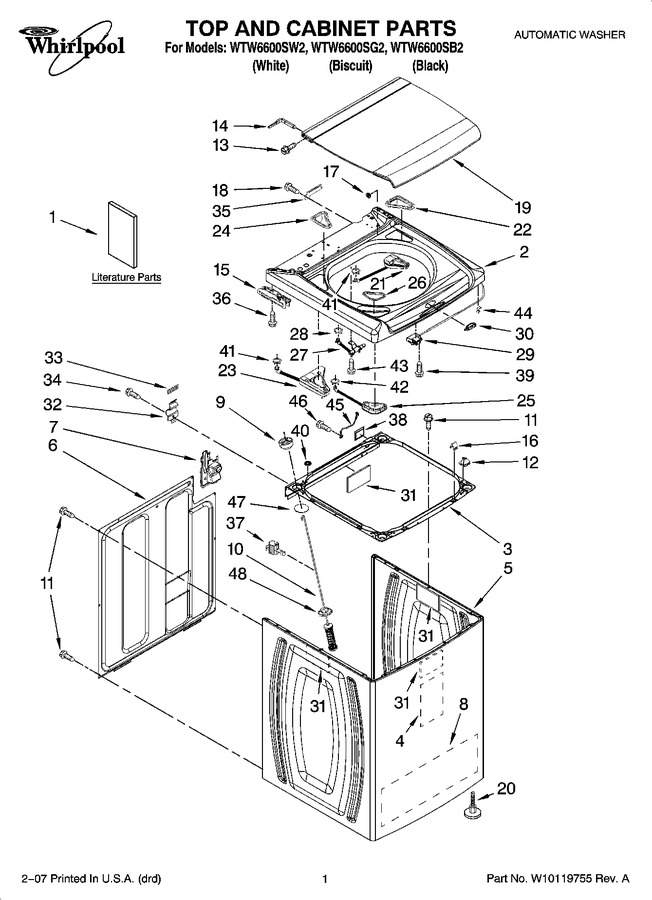

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10107030 | Energy Guide |  |
|||
| W10106470 | Use & Care Guide | |
||||
| W10026571 | Tech Sheet | |
||||
| W10106480 | Quick Start Guide | |
||||
| 8577781 | Wiring Diagram | |
||||
| 2 | 8565312 | Top (biscuit) | |
|||
| W10211838 | Top (black) (Replaces:W10053420) | |
||||
| WP8565314 | Top (white) (Replaces:8565311) | |
||||
| 3 | W10180912 | Frame Assembly, Cabinet Top (includes Items 31 & 38) (Replaces:W10114656) | |
|||
| 4 | 8576784 | Sound Absorber, Cabinet | |
|||
| 5 | 8566156 | Cabinet (white) | |
|||
| 8566157 | Cabinet (biscuit) | |
||||
| W10070000 | Cabinet (black) (Replaces:W10050330) | |
||||
| 6 | WP8566090 | Panel, Rear | |
|||
| 7 | WPW10160572 | Retainer, Drain Hose Storage (Replaces:8543781) | |
|||
| 8 | 8578225 | Sound Absorber, Cabinet | |
|||
| 9 | W10198919 | Ball, Suspension (4) (Replaces:W10111536) | |
|||
| 10 | W10820048 | Damper Assembly, Tub Suspension (set Of 4-includes Items 47 & 48) (Replaces:8564009) | |
|||
| 11 | WP489069 | Screw, 8-18 X 3/8 (Replaces:1157158) | |
|||
| 12 | W10042120 | Locator, Top (2) | |
|||
| 13 | W11404293 | Screw, Lid Hinge Mounting (4) (Replaces:W10078270) | |
|||
| 14 | WP8563965 | Hinge Wire (2) (l.h.) | |
|||
| WP8572974 | Hinge Wire (2) (r.h.) | |
||||
| 15 | WP8563962 | Hinge, Spring Assembly (glass Lid) (left) | |
|||
| WP8563963 | Hinge, Spring Assembly (glass Lid) (right) | |
||||
| 16 | WP8563785 | Lock, Top- Front (2) | |
|||
| 17 | WPW10052730 | Bearing, Lid Hinge (2) | |
|||
| 18 | 3390647 | Screw, 8-18 X 1/2 | |
|||
| 19 | WPW10183521 | Lid, Glass Assembly (black) (Replaces:W10071520) | |
|||
| 20 | W10739673 | Foot Assembly, Leveling (4) (Replaces:8578826) | |
|||
| 21 | WPW10172146 | Dispenser, Fabric Softener (Replaces:W10059150) | |
|||
| 22 | 8580017 | Bezel, Fabric Softener Dispenser (elephant) | |
|||
| 8580016 | Bezel, Fabric Softener Dispenser (biscuit) | |
||||
| 8566210 | Bezel, Fabric Softener Dispenser (white) | |
||||
| 23 | WPW10642278 | Dispenser, Bleach (Replaces:W10059160) | |
|||
| 24 | 8566211 | Bezel, Bleach Dispenser (white) | |
|||
| 8580019 | Bezel, Bleach Dispenser (elephant) | |
||||
| 8580018 | Bezel, Bleach Dispenser (biscuit) | |
||||
| 25 | W10131104 | Dispenser, Detergent (elephant) (Replaces:W10059180) | |
|||
| WP8564976 | Dispenser, Detergent (white) | |
||||
| W10059170 | Dispenser, Detergent (biscuit) | |
||||
| 26 | W10045190 | Bezel, Detergent Dispenser (biscuit) | |
|||
| 8564979 | Bezel, Detergent Dispenser (white) | |
||||
| W10045210 | Bezel, Detergent Dispenser (elephant) | |
||||
| 27 | WPW10106990 | Nozzle Assembly, Fresh Water | |
|||
| 28 | 371503 | Clamp, Hose | |
|||
| 29 | WPW10619844 | Lock Assembly, Lid (Replaces:W10059230) | |
|||
| 30 | WP8572019 | Bezel, Lid Lock (white) | |
|||
| 8563939 | Bezel, Lid Lock (biscuit) | |
||||
| W10052520 | Bezel, Lid Lock (black) | |
||||
| 31 | WP8564458 | Absorber, Impact | |
|||
| 32 | WP8564456 | Hinge, Top (2) | |
|||
| 33 | 18849 | Pad, Top Hinge (2) | |
|||
| 34 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces:343641) | |
|||
| 35 | 8563941 | Cover, Harness | |
|||
| 36 | WP693995 | Screw 8-18 X 3/8 | |
|||
| 37 | 8543784 | Bracket, Drain Hose | |
|||
| 38 | 8578386 | Shield, Wire Harness | |
|||
| 39 | WP8281136 | Screw, 10-16 X 3/4 | |
|||
| 40 | 8576476 | Spacer, Rear (cabinet/top) | |
|||
| 41 | 370451 | Clamp, Hose | |
|||
| 42 | 371503 | Clamp, Hose | |
|||
| 43 | 3400061 | Screw, 10-16 X 9/16 | |
|||
| 44 | WP90016 | Clip, Harness (4) | |
|||
| 45 | 3184020 | Wire, Ground Jumper (Replaces:8281736) | |
|||
| 46 | W10846509 | Screw, 10-32 X 5/8 (Replaces:3400076) | |
|||
| 47 | WP8577896 | Washer, Suspension Umbrella (4) | |
|||
| 48 | WP8564017 | Cup, Suspension (4) | |
