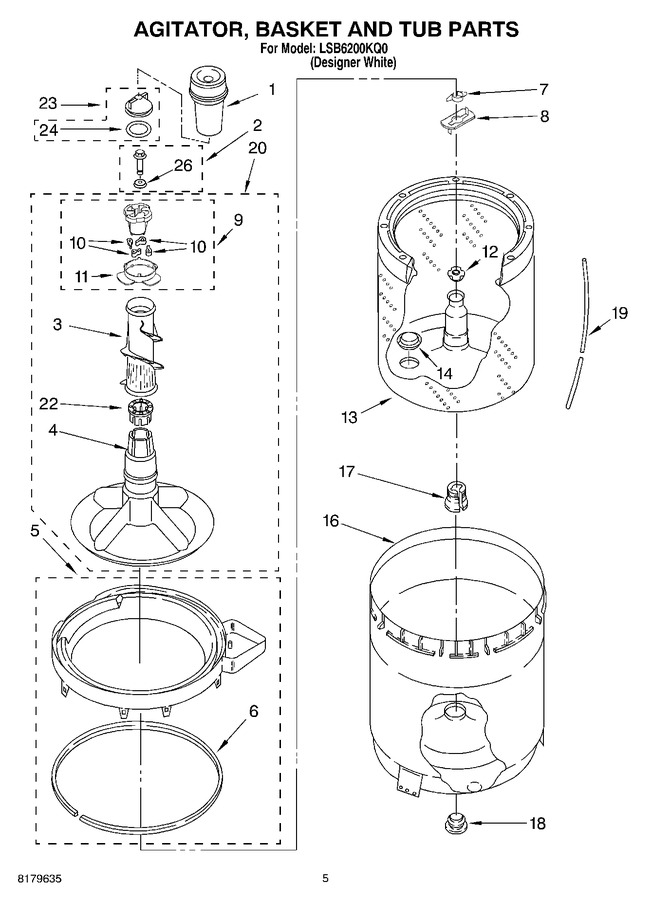

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 63580 | Dispenser | ||||
2 | WP358237 | Screw & Washer (5-16-24 X 1) | ||||
3 | WP3363003 | Clothes Mover | ||||
4 | WP3951632 | Agitator | ||||
5 | W10880720 | Tub Ring & Gasket (Replaces:63851) | ||||
6 | WP3976308 | Gasket, Tub Ring (Replaces:3359585) | ||||
7 | WP3354845 | Clip, Agitator | ||||
8 | WP8543666 | Washer, Agitator (Replaces:3355921) | ||||
9 | 285809 | Cam Driven (Replaces:3951682) | ||||
10 | 80040 | Dog, Agitator Clutch (Replaces:3366877) | ||||
11 | WP3952374 | Bearing, Driven Cam | ||||
12 | WP21366 | Nut, Spanner | ||||
13 | W10389329 | Basket & Balance Ring (also Order No.14) (Replaces:3951989) | ||||
14 | 285868 | Filter Plug (4) (Replaces:8522271) | ||||
16 | 63849 | Tub | ||||
17 | WP389140 | Block, Basket Drive | ||||
18 | W10814296 | Gasket, Center Post (Replaces:383727) | ||||
19 | WP353244 | Hose, Pressure Switch (Replaces:3347780) | ||||
20 | WP3951744 | Agitator Assembly (complete) | ||||
22 | WP3951608 | Spacer, Thrust | ||||
23 | WPW10074580 | Cap, Barrier (Replaces:3354733) | ||||
24 | WPW10072840 | Seal-inner Cap (Replaces:3348855) | ||||
26 | WP3949550 | Washer |
