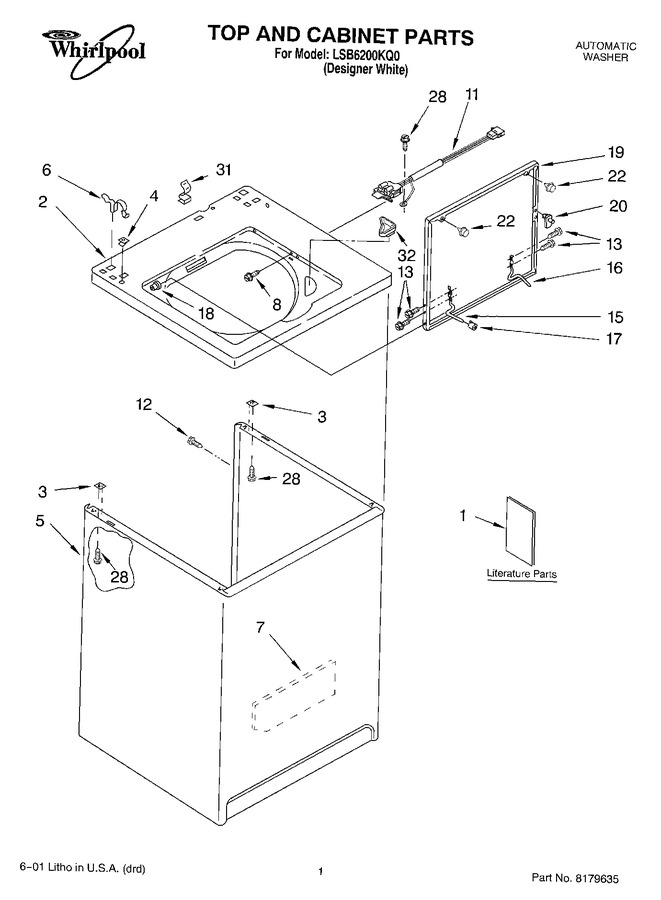

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | LIT3954821 | Literature Parts Installation Instructions (use & Care Guide) (french) | ||||
LIT3955499 | Literature Parts Installation Instructions (use & Care Guide) (wiring Diagram) | |||||
LIT3952817 | Literature Parts (installation Instructions) (english) | |||||
LIT3951578 | Literature Parts (installation Instructions) (french) | |||||
LIT3955155 | Literature Parts Installation Instructions (use & Care Guide) (english) | |||||
LIT3954539 | Literature Parts Installation Instructions (use & Care Guide) (energy Guide) | |||||
2 | 8271378 | Top | ||||
3 | WP62750 | Spacer, Cabinet To Top (4) | ||||
4 | WP357213 | Nut, Push-in (2) | ||||
5 | 63424 | Cabinet | ||||
6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) | ||||
7 | WP3976348 | Cabinet-sound Damper (Replaces:3349654) | ||||
8 | WP3356311 | Screw & Washer, Lid Switch (2) | ||||
11 | 3949247V | Switch, Lid (Replaces:3949237) | ||||
12 | WP308685 | Screw,10-16 X 1/2 (Replaces:3357011) | ||||
13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces:3351355) | ||||
15 | WP54584 | Hinge, Lid (l.h.) | ||||
16 | WP91770 | Hinge, Lid (r.h.) | ||||
17 | WP19119 | Bumper, Lid Hinge | ||||
18 | WP21258 | Bearing, Lid Hinge (2) | ||||
19 | WPW10193874 | Lid (Replaces:3954489) | ||||
20 | WP358684 | Strike, Lid Switch | ||||
22 | WP9724509 | Bumper, Lid (2) | ||||
28 | WP3390631 | Screw, 10-16 X 3/8 (5) | ||||
31 | WP90016 | Clip, Harness | ||||
32 | WP3362952 | Dispenser, Bleach | ||||
4313896 | Manual, (washer) Do-it-yourself (Replaces:LIT4313896) |
