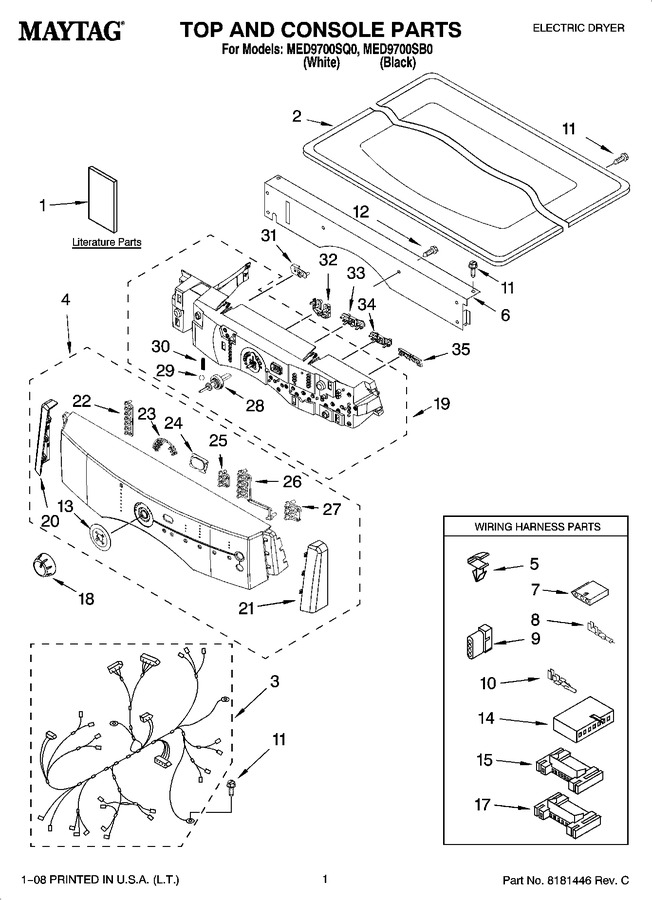

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts, Optional Parts (not Included)
| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10150616 | Use & Care Guide |  |
|||
| 8563816 | Tech Sheet | |
||||
| W10099080 | Guide, Quick Start | |
||||
| 2 | WPW10117263 | Top (white) (Replaces:8519251) | |
|||
| W10192490 | Top (black) (Replaces:8579997) | |
||||
| 3 | WP8576530 | Harness, Main | |
|||
| 4 | W10098940 | Panel, Console (includes Bezel, Light Indicators & Endcaps) (white) | |
|||
| W10098960 | Panel, Console (includes Bezel, Light Indicators & Endcaps) (black) | |
||||
| 5 | WP3394427 | Clip-harness | |
|||
| 6 | 8519271 | Bracket, Console | |
|||
| 7 | 353424 | Connector Sensor | |
|||
| 8 | WP94614 | Terminal | |
|||
| 9 | 3936144 | Plug, Terminal | |
|||
| 10 | WP596797 | Terminal (Replaces:94613) | |
|||
| 11 | 3390647 | Screw, 8-18 X 1/2 | |
|||
| 12 | WP488787 | Screw, 8-18 X 1/2 (Replaces:488886) | |
|||
| 13 | 8542690 | Bezel, Cycle | |
|||
| 14 | 3936150 | Connector, 7-circuit | |
|||
| 15 | 3395683 | Connector, Motor | |
|||
| 17 | 2203186 | Connector, 5-circuit | |
|||
| 18 | W10133964 | Knob, Assembly (white) | |
|||
| 8580138 | Knob Assembly (black) | |
||||
| 19 | WP8558455 | User Interface (includes Illus. 28, 29 & 30) | |
|||
| 20 | 8562598 | Endcap(lh) (white) | |
|||
| 8580135 | Endcap (lh) (black) | |
||||
| 21 | 8580134 | Endcap (rh) (black) | |
|||
| 8562597 | Endcap (rh) (white) | |
||||
| 22 | 8542682 | Light Indicator (status) | |
|||
| 23 | 8542683 | Light Indicator (cycle) | |
|||
| 24 | 8542691 | Lens, Display | |
|||
| 25 | 8542684 | Light Indicator (dryness Level) | |
|||
| 26 | 8542685 | Light Indicator (temperature) | |
|||
| 27 | 8542686 | Light Indicator (xcare/eoc) | |
|||
| 28 | 8542717 | Shaft, Cycle Selector | |
|||
| 29 | WP8542716 | Bearing, Knob | |
|||
| 30 | WP8542715 | Spring, Knob | |
|||
| 31 | W10133970 | Pushbutton, (control) (silver) | |
|||
| 8580140 | Pushbutton, (control) (silver (for Black Model)) | |
||||
| 32 | 8579989 | Pushbutton, (drytime) (silver) | |
|||
| W10100390 | Pushbutton, (drytime) (white) | |
||||
| 33 | 8562604 | Pushbutton, (dryness/temp) (white) | |
|||
| 8579991 | Pushbutton, (dryness/temp) (silver) | |
||||
| 34 | 8562605 | Pushbutton, (xcare/eoc) (white) | |
|||
| 8579993 | Pushbutton, (xcare/eoc) (silver) | |
||||
| 35 | W10133971 | Pushbutton (start/cancel) (silver) | |
|||
| 8579994 | Pushbutton (start/cancel) (silver (for Black Model)) | |
