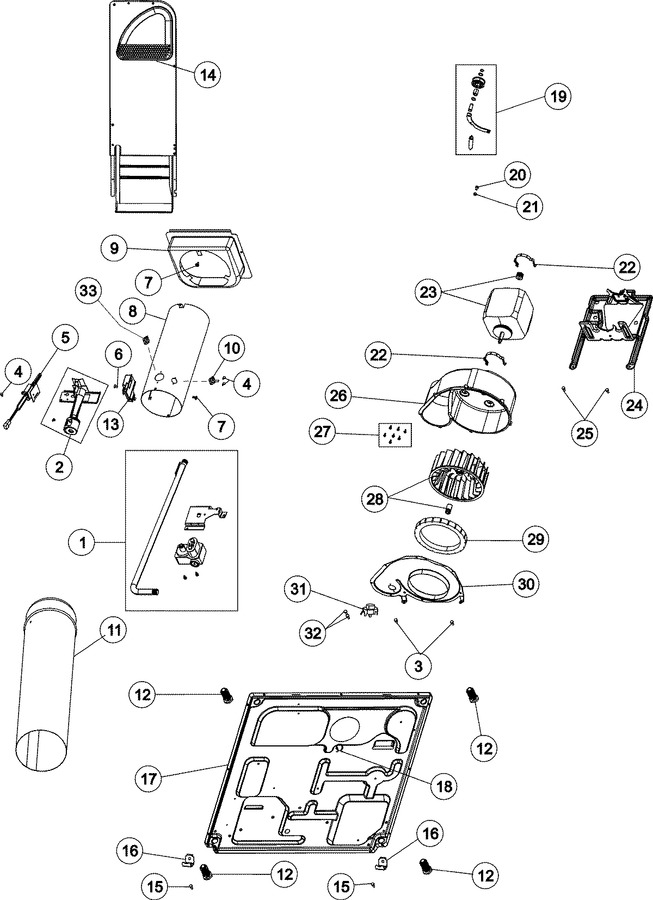

Diagram #	Part Number		Description	Series	Find a Video
1	WP37001127		Valve & Pipe Assy	10
2	649P3		Natural To Lp Conversion Kit	10
	WP650P3		Lp To Natural Conversion Kit	10
	Y56234		Assembly, Burner	10
3	WP3390631		Screw   (Replaces:503688)	10
4	WP8281196		Screw,indent Hex Head-   (Replaces:56692)	10
5	WP37001308		Igniter & Bracket Assembly   (Replaces:40069801)	10
6	23222		Screw, 8b-18 X 1/4 He	10
7	WP3390631		Screw   (Replaces:503688)	10
8	37001041		Duct, Combustion	10
9	500122		Shroud, Heat Duct	10
10	489P3		Thermostat, Limit   (Replaces:Y61886)	10
11	505518		Duct, Exhaust	10
12	Y500101		Leg, Leveling (plastic)	10
13	WP338906		Sensor, Flame   (Replaces:Y56231)	10
14	503605		Assembly, Heater Duct	10
15	WP27001200		Screw (12-14x1/2 Type B	10
16	37001145		Clip, Front Panel	10
17	37001156		Dryer Base	10
18	504034		Clip, Wire	10
19	WP37001287		Assy, Idler Lever/shaft/pulley	10
20	500824		Screw, 1/4-20 Unc Hex	10
21	WPW10139757		Nut, Jam Mid Lock 1/4-20   (Replaces:27001225)	10
22	WP660658		Clamp, Motor Mount   (Replaces:Y58047)	10
23	WP2200376		Motor, Pully   (Replaces:40048501)	10
24	503613		Mount, Motor	10
25	WP27001200		Screw (12-14x1/2 Type B	10
26	D511969WP		Housing, Blower   (Replaces:56020)	10
27	31260		Screw, No.8 X 3/8 Ind H	10
28	56000		Assembly, Blower Fan	10
29	37001119		Seal, Blower Housing	10
30	500078		Cover, Blower Housing	10
31	WP37001136		Thermostat, Cycling 146f	10
32	WP90767		Screw, 8b-18x3/8 Slt   (Replaces:501086)	10
33	WP40113801		Fuse, Thermal	10
