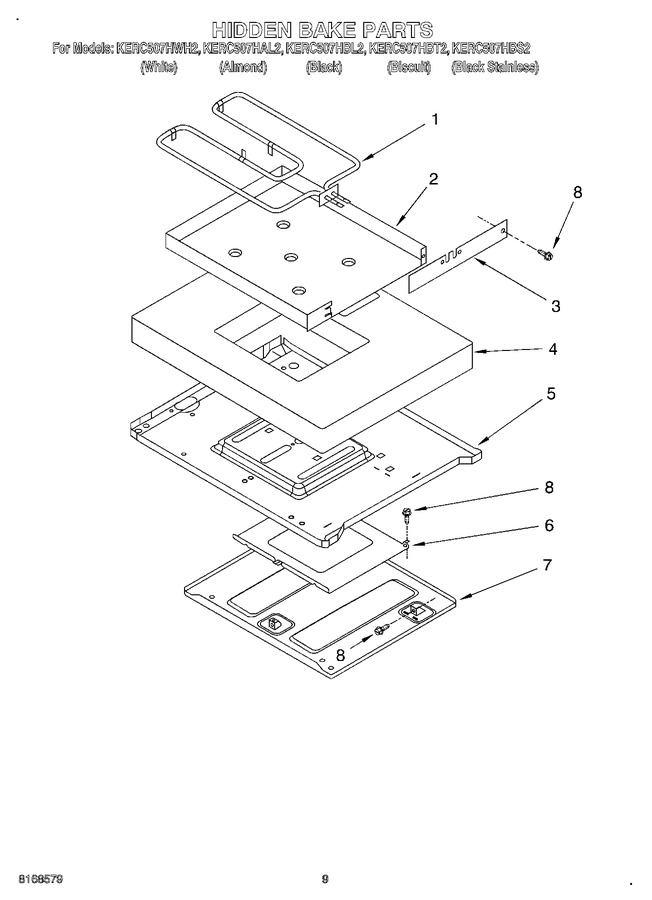

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP9752294 | Element, Bake |  |
|||
| 2 | 9752228 | Pan, Hidden Bake | |
|||
| 3 | 9752250 | Cover, Hidden Bake | |
|||
| 4 | 9754005 | Insulation | |
|||
| 5 | 9752735 | Retainer, Insulation | |
|||
| 6 | 9751641 | Plate, Reflector | |
|||
| 7 | 9781025 | Shield | |
|||
| 8 | 242821 | Wire (14 Ga. 150 C Blue) | |
|||
| 242823 | Wire (14 Ga. 150 C Green) | |
||||
| 242824 | Wire (14 Ga. 150 C Orange) | |
||||
| 242829 | Wire, Red 12 Ga. 150~c | |
||||
| 242825 | Wire (14 Ga. 150 C Red) | |
||||
| 242831 | Wire (14 Ga. 200 C Red) | |
||||
| 242826 | Wire, White 14 Ga. 150~c | |
||||
| 242827 | Wire (14 Ga. 150 C Yellow) | |
||||
| 242832 | Wire, Yellow 14 Ga. 200~c | |
||||
| 72109 | Paint, Touch-up 1/2 Oz. (avocado) | |
||||
| 72108 | Paint, Touch-up 1/2 Oz. (coffee) | |
||||
| 72110 | Paint, Touch-up 1/2 Oz. (harvest Gold) | |
||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) | |
||||
| 4392899 | Biscuit | |
||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White | |
||||
| 261888 | New Avocado | |
||||
| 261886 | Coffee | |
||||
| 261890 | Harvest Gold | |
||||
| 285006 | Paint, Spray 13 Oz. (black) | |
||||
| 350942 | Primer (white) (Replaces:206922) | |
||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) | |
||||
| 978883 | Almond (uncut) | |
||||
| 261891 | Harvest Gold (uncut) | |
||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) | |
||||
| 799832 | Kit. Porcelain Repair (white) | |
||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces:242756) | |
||||
| 261582 | Grease | |
||||
| W10355051 | Cleaning Creme (Replaces:9780196) | |
||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces:240132) | |
||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) | |
||||
| 9753683 | Harness, Wire (hidden Bake) | |
||||
| 9752771 | Harness, Wire (cooktop Control) | |
||||
| 9753682 | Harness, Wire (dual Ceran) | |
||||
| 9781930 | Harness, Wire (single Ceran) | |
||||
| 9753680 | Harness, Wire (kwz) | |
||||
| 9750376 | Harness, Wire (oven Door) | |
||||
| 9753686 | Harness, Wire (edc/jabil) | |
||||
| 9753921 | Harness, Wire (transformer) | |
||||
| 9751139 | Harness, Wire (meat Probe) | |
||||
| 9752365 | Jumper, 5 Terminal | |
||||
| WPW10339879 | Wire Tie (Replaces:20082084) | |
||||
| 9753687 | Harness, Wire (simmer) | |
||||
| 9752772 | Harness, Wire (top Light) | |
||||
| 313660 | Clip, Ground | |
||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) | |
||||
| WP9751745 | Anti-tip Kit | |
||||
| 350956 | Paint, Spray 13 Oz. (almond) | |
||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) | |
||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) | |
||||
| 242820 | Wire (14 Ga. 150 C Black) | |
||||
| WP4159387 | Screw, 10-16 X 3/8 (Replaces:9780265) | |
||||
| 242828 | Wire (12 Ga. 150 C Black) | |
||||
| 242822 | Wire (14 Ga. 150 C Brown) | |
||||
| 8316784 | Wire (14 Ga. 200 C Brown) (Replaces:242830) | |
