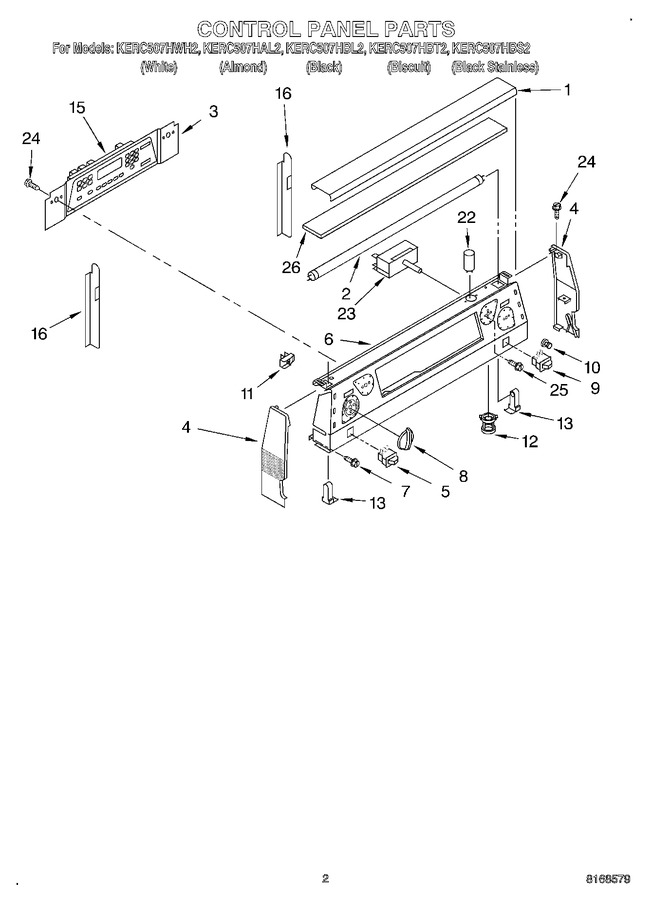

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 9753156PC | Lamp Cover (biscuit) |  |
|||
| 9753156PW | Lamp Cover (white) | |
||||
| 9753156PT | Lamp Cover (almond) | |
||||
| 9753156PB | Lamp Cover (black) | |
||||
| 2 | WP95292 | Light, Fluorescent (Replaces:422581) | |
|||
| 3 | 9780655 | Bracket, Timer | |
|||
| 4 | 9750366FC | End Cap (left Hand) (biscuit) | |
|||
| 9750366FG | End Cap (left Hand) (black) | |
||||
| 9750366FT | End Cap (left Hand) (almond) | |
||||
| 9750366FW | End Cap (left Hand) (white) | |
||||
| 9750367FC | End Cap (right Hand) (biscuit) | |
||||
| 9750367FG | End Cap (right Hand) (black) | |
||||
| 9750367FT | End Cap (right Hand) (almond) | |
||||
| 9750367FW | End Cap (right Hand) (white) | |
||||
| 5 | 9753692FW | Switch, Rocker (warm Zone) (white) | |
|||
| 9753692FC | Switch, Rocker (warm Zone) (biscuit) | |
||||
| 9753692FB | Switch, Rocker (warm Zone) (black) | |
||||
| 9753692FT | Switch, Rocker (warm Zone) (almond) | |
||||
| 6 | 9753726PB | Panel, Control (black) | |
|||
| 9753726PW | Panel, Control (white) | |
||||
| 9753726PC | Panel, Control (biscuit) | |
||||
| 9753726PS | Panel, Control (black Stainless) | |
||||
| 9753726PT | Panel, Control (almond) | |
||||
| 7 | W11169708 | Screw, 8-18 X 3/8 (Replaces:9780852) | |
|||
| 8 | WP9750372FW | Knobs, Control (4) (white) | |
|||
| 4211913 | Knobs, Control (4) (almond) (Replaces:9750372FT) | |
||||
| WP9750372FC | Knobs, Control (4) (biscuit) | |
||||
| WP9750372FF | Knobs, Control (4) (black) | |
||||
| 9 | W10163901 | Switch, Rocker (white) (Replaces:9753261FW) | |
|||
| WPW10163899 | Switch, Rocker (almond) (Replaces:9753261FT) | |
||||
| 10 | WP9750343 | Indicator Lens (Replaces:9752589) | |
|||
| 11 | 9753422 | Light, Indicator | |
|||
| 12 | 9750866 | Starter, Holder | |
|||
| 13 | 9752760 | Receptacle, Light | |
|||
| 15 | 9753667CC | Oven Control Assembly (biscuit) | |
|||
| 9753667CT | Oven Control Assembly (almond) | |
||||
| 9753667CW | Oven Control Assembly (white) | |
||||
| 9753667CB | Oven Control Assembly (black) | |
||||
| 16 | 9780655 | Brace, Control Pnl | |
|||
| 22 | 9781118 | Starter, Light | |
|||
| 23 | 8203538 | Switch, Infinite (1000/2400w - Lf) (Replaces:9753499) | |
|||
| WP9750638 | Switch, Infinite (1500w - Rr) | |
||||
| WP9750639 | Switch, Infinite (1800w - Rf-lr) | |
||||
| 24 | WP4159387 | Screw, 10-16 X 3/8 (Replaces:9780265) | |
|||
| 25 | WP3400882 | Screw, 8-32 X 7/32 (Replaces:3400816) | |
|||
| 26 | 9754008 | Insulation, Control | |
