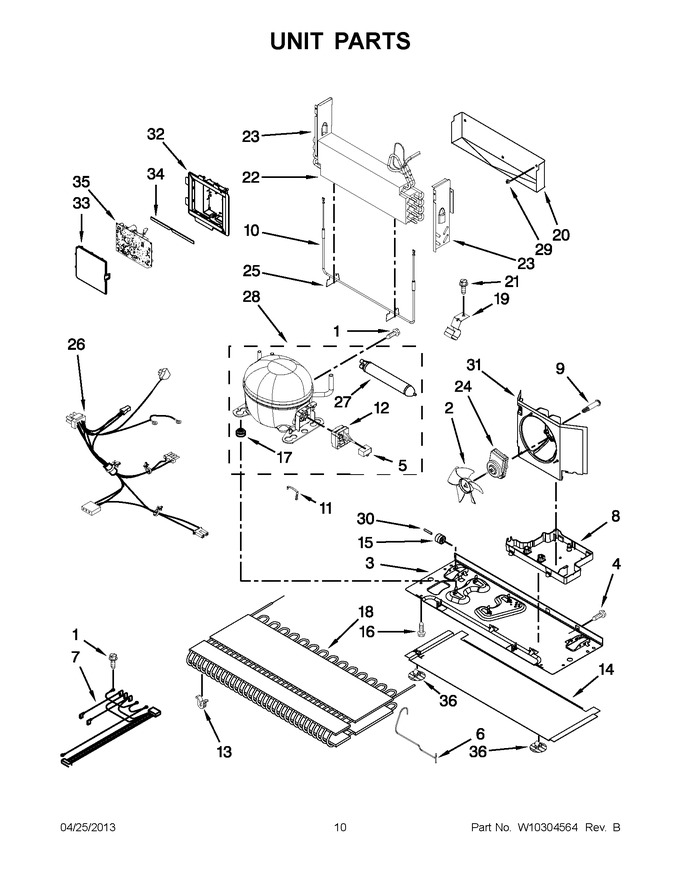

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |  |
|||
| 2 | WP12825803 | Blade, Fan | |
|||
| 3 | W10480110 | Basepan (Replaces:W10210983) | |
|||
| 4 | 67006425 | Screw (Replaces:12990511) | |
|||
| 5 | WPW10662129 | Capacitor (Replaces:2264017) | |
|||
| 6 | WPW10217748 | Tube, Discharge | |
|||
| 7 | W10911102 | Harness, Evaporator Heater (Replaces:W10292239) | |
|||
| 8 | WPW10655367 | Pan, Drain (Replaces:W10296784) | |
|||
| 9 | W10216919 | Screw, Shoulder | |
|||
| 10 | WP12729128 | Heater, Defrost | |
|||
| 11 | W10204187 | Strap, Bale | |
|||
| 12 | WPW10197428 | Start Device, Combination (start Relay And Overload) | |
|||
| 13 | WPW10137529 | Grommet, Condenser | |
|||
| 14 | W10367415 | Extension, Basepan (Replaces:W10206337) | |
|||
| 15 | WP67005149 | Roller (Replaces:12477102) | |
|||
| 16 | W10709798 | Screw (Replaces:12992101) | |
|||
| 17 | WPW10169124 | Grommet, Compressor (Replaces:10835903SP) | |
|||
| 18 | WPW10346420 | Condenser (Replaces:W10135027) | |
|||
| 19 | W10281329 | Clip, Drier | |
|||
| 20 | WPW10292802 | Tray, Drip | |
|||
| 21 | WP33001882 | Screw (Replaces:12990701) | |
|||
| 22 | 12001919 | Evaporator Kit (Replaces:12726402) | |
|||
| 23 | 12225602 | Dam (left Hand) | |
|||
| 12225702 | Dam (right Hand) | |
||||
| 24 | W11613295 | Motor, Fan (Replaces:W10239053) | |
|||
| 25 | 10428101 | Clip, Heater | |
|||
| 26 | W10837673 | Harness, Unit (Replaces:W10234025) | |
|||
| 27 | WPW10143759 | Drier | |
|||
| 28 | W10160407 | Compressor (Replaces:W10134623) | |
|||
| 29 | 10623002 | Clip, Evaporator | |
|||
| 30 | 67006434 | Axle, Roller (Replaces:12477202) | |
|||
| 31 | W11556315 | Shroud (Replaces:W10189184) | |
|||
| 32 | W10257665 | Box, Hv Control | |
|||
| 33 | W11226688 | Lid, Hv Box (Replaces:12957702) | |
|||
| 34 | 67006429 | Gasket, Hv Control Box (Replaces:12957801) | |
|||
| 35 | WPW10317076 | Board, Hv Control | |
|||
| 36 | W10206339 | Fastener, Basepan | |
|||
| NI | 978026 | Valve, Access | |
|||
| 978027 | Valve, Access | |
||||
| 978028 | Valve, Access | |
||||
| 978029 | Valve, Access | |
||||
| 978030 | Valve, Access | |
||||
| 876764 | Valve, Access | |
||||
| N/P | Refrigerant Charge 5.50 Oz. (r-134a) | |
||||
| WP978025 | Valve, Access | |
