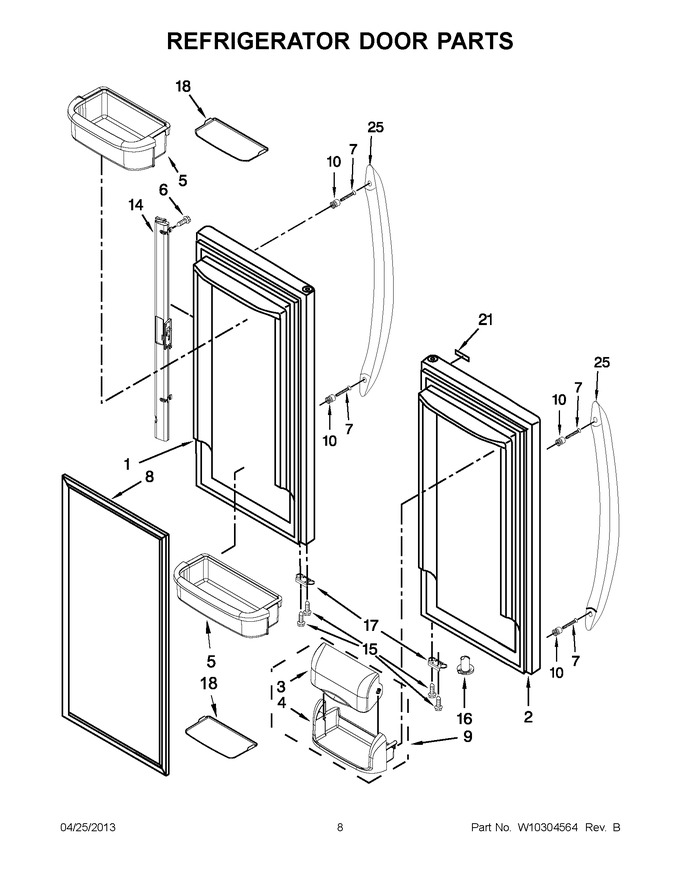

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 13107822SQ | Door, Left (stainless) |  |
|||
| 12978044WQ | Door, Left (white) | |
||||
| 12978073BQ | Door, Left (black) | |
||||
| 2 | 12978076BQ | Door, Right (black) | |
|||
| 12978043WQ | Door, Right (white) | |
||||
| 13107803SQ | Door, Right (stainless) | |
||||
| 3 | WP67003637 | Door, Dairy (Replaces:12804701SP) | |
|||
| 4 | WP67001279 | Tray, Dairy (Replaces:12369502SP) | |
|||
| 5 | WPW10371193 | Bucket, Medium (Replaces:12849104SP) | |
|||
| WP12918702SP | Bucket, Large | |
||||
| WPW10289489 | Bucket, Gallon (Replaces:12918402SP) | |
||||
| WPW10351079 | Bucket, Small (Replaces:12849101SP) | |
||||
| 6 | W11311945 | Screw (Replaces:12990204) | |
|||
| 7 | WPW10290759 | Screw | |
|||
| 8 | W10830189 | Gasket, Door (white (right Hand)) (Replaces:W10163894N) | |
|||
| W11368721 | Gasket, Door (black (right Hand)) (Replaces:W10163895N) | |
||||
| W10830289 | Gasket, Door (black (left Hand)) (Replaces:W10218679) | |
||||
| W10830287 | Gasket, Door (white (left Hand)) (Replaces:W10218678) | |
||||
| W10830162 | Gasket, Door (grey (right Hand)) (Replaces:W10179332N) | |
||||
| W10830283 | Gasket, Door (grey (left Hand)) (Replaces:W10218680) | |
||||
| 9 | WP12744905 | Door, Dairy (Replaces:12744905V) | |
|||
| 10 | WP67006113 | Mount, Handle (Replaces:13001201) | |
|||
| 14 | WP12722803B | Mullion, Door (black) | |
|||
| WP12722803AP | Mullion, Door (grey) | |
||||
| WP12722803W | Mullion, Door (white) | |
||||
| 15 | WP98165 | Screw (Replaces:12990504) | |
|||
| 16 | WP67003638 | Closure, Door (white) (Replaces:12028505W) | |
|||
| WP12028505AP | Closure, Door (grey) | |
||||
| WP67003639 | Closure, Door (black) (Replaces:12028505B) | |
||||
| 17 | 12968202W | Stop, Door (white) | |
|||
| W11703060 | Stop, Door (grey) (Replaces:12968202AP) | |
||||
| WP67007011 | Stop, Door (black) (Replaces:12968202B) | |
||||
| 18 | W10450004 | Gripper, Gallon (Replaces:12567325) | |
|||
| W11408990 | Gripper, Small (Replaces:12567323) | |
||||
| W10450029 | Gripper, Large (Replaces:12567324) | |
||||
| WPW10450021 | Gripper, Medium (Replaces:12567321SP) | |
||||
| 21 | W10046640 | Nameplate (black) | |
|||
| WPW10046610 | Nameplate (grey) | |
||||
| W10046670 | Nameplate (white) | |
||||
| 25 | WPW10314517K | Handle, Door (stainless) (Replaces:W10314517N) | |
|||
| WPW10314515 | Handle, Door (white) (Replaces:W10314515N) | |
||||
| WPW10314516K | Handle, Door (black) (Replaces:W10314516N) | |
