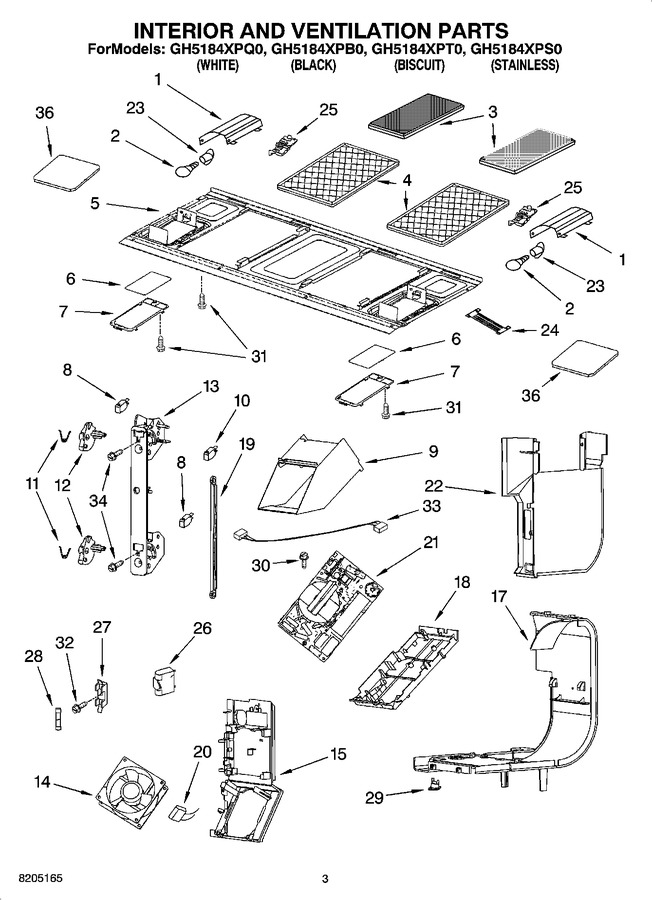

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 8205096 | Reflector, Lamp | ||||
2 | 8206232A | Lamp (Replaces:8183993) | ||||
3 | W10112514A | Filter, Charcoal (Replaces:8184002) | ||||
4 | W10113040A | Filter, Grease (Replaces:8184003) | ||||
5 | 8205412 | Plate, Bottom | ||||
6 | 8184141 | Glass, Lamp | ||||
7 | 8184889 | Holder, Glass | ||||
8 | W10211974 | Switch, Micro Primary/secondary (Replaces:4393599) | ||||
9 | W10110596 | Cover, Inverter (Replaces:8184124) | ||||
10 | W10211972 | Switch, Micro (Replaces:4393697) | ||||
11 | 8169438 | Spring, Interlock | ||||
12 | 8205211 | Plate, Cam | ||||
13 | 8185189 | Support, Interlock | ||||
14 | 8184875 | Fan, Dc 12 Volt | ||||
15 | 8184894 | Housing, Fan | ||||
17 | 8206565 | Bracket, Holder (Replaces:8185032) | ||||
18 | 8184670 | Holder, Inverter | ||||
19 | 8185190 | Rod-locking Link | ||||
20 | W10217709 | Capacitor, 125 V (Replaces:8184093) | ||||
21 | W10217710 | Inverter 1100 W (Replaces:8205093) | ||||
22 | 8185031 | Plate, Side | ||||
23 | 8184926 | Holder, Lamp | ||||
24 | 8184887 | Cable | ||||
25 | 8184202 | Cover, Terminal | ||||
26 | W10325860 | Capacitor (Replaces:8184204) | ||||
27 | W10117908 | Holder, Fuse (Replaces:8184312) | ||||
28 | W11707984 | Fuse (Replaces:4393308) | ||||
29 | 8183998 | Thermostat | ||||
30 | 8184199 | Screw | ||||
31 | W11380570 | Screw (Replaces:4393835) | ||||
32 | 8184200 | Screw | ||||
33 | W10615910 | Ribbon Cable (p2 To Cn701 On 1100 W Inverter) (Replaces:8205014) | ||||
34 | 8169479 | Screw (Replaces:8169477) | ||||
36 | 8184203 | Foil, Lamp |
