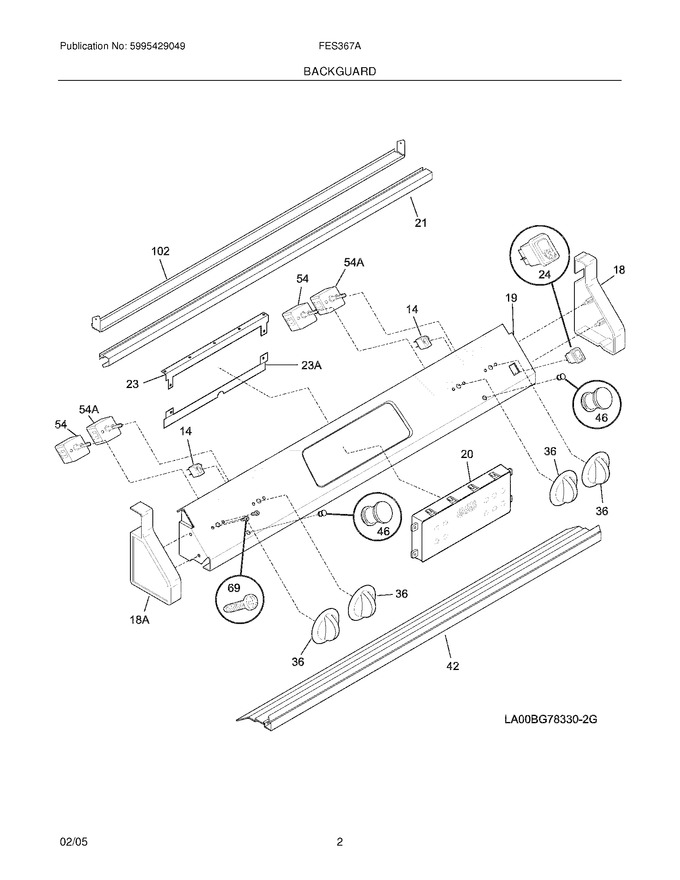

Diagram #	Part Number		Description	Series	Find a Video
F14	5303051533		Light,indicator ,125v   (Replaces:318076700)
18	318254698		End Cap,white ,rh   (Replaces:318039310)
19	318182990		Panel,control Mtg. ,white
F20	318185446		Clock/timer,electronic ,white ,es300
21	318027804		Trim-backguard,white ,top
23	318015042		Bracket,clock Mtg ,upper
F24	5304527842		Switch-rocker, White   (Replaces:316005607)
36	318196633		Knob,control ,white
42	318106924		Trim,backguard ,white ,bottom
46	318250801		Lens,indicator Light   (Replaces:5303297274)
F54	318293820		Switch,surface Unit ,small   (Replaces:318220066)
69	5303323134		Screw,8-32 X 0.188
102	318055601		Bracket-mounting
18A	318254698		End Cap,white ,lh   (Replaces:318039311)
23A	318015043		Bracket,clock Mtg ,lower
F54A	318293827		Switch,surface Unit ,large   (Replaces:318220067)
NI	316220804		Overlay,clock ,white ,es300
	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box
	131243700		Screw,truss Head,8-18 X 0.375   (Replaces:08016432)
	5303211311		Screw,8 X 0.500
