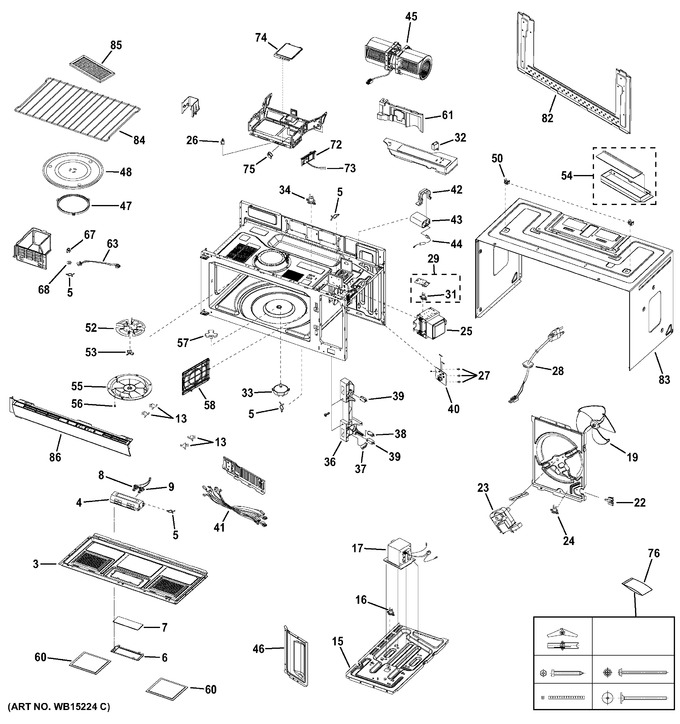

3 - Oven Cavity Parts


Diagram #	Part Number		Description	Series	Find a Video
3	WB63X10072		Base, Bottom
4	WB06X10450		Bracket-bottom Lamp
5	WB01X20406		Cable Clamp
6	WB36X10216		Cover-glass
7	WB36X10071		Glass Cooktop Lamp
8	WB36X10213		Bulb Halogen (120v 20w)
9	WB08X10066		Socket, Halogen Lamp
13	WB06X10521		Holder-rack
15	WB63X20708		Plate, Base
16	WB20X10059		Thermostat
17	WB27X10910		Trans H.v
19	WB02X20626		Blade, Fan
22	WB06X10819		Holder-wire
23	WB26X10262		Motor, Fan
24	WB27X709		Thermo Swtch
25	WB27X11079		Magnetron Asm
26	WB01X10408		Wire-saddle
27	WB4X175		Pcb Support
28	WB18X10491		Power Cord Asm
29	WB20X10061		Thermostat W/brkt
31	WB27X11095		Tco - Magnetron
32	WB27X10170		Capacitor- Motor
33	WB26X10233		Turntable, Motor
34	WB20X10060		Thermostat
36	WB06X10676		Latch-body
37	WB06X10128		Lever-s/w
38	WB24X10075		Switch-micro
39	WB24X10038		Switch
40	WB02X20624		Noise Filter, Asm
41	WB18X20625		Wire Harness, Asm
42	WB06X10713		Bracket-hvc
43	WB27X10011		Capacitor 2100v/0.91 Mic
44	WB27X1160		Diode Assy
45	WB26X10261		Motor, Ventilation
46	WB39X10037		Duct, Rear
47	WB02X10839		Guide, Roller Asm
48	WB39X10038		Tray, Cooking
50	WB01X10071		Nut Top Mounting
52	WB06X10888		Blade, Stirrer
53	WB06X10813		Holder-stirrer
54	WB06X10920		Asm Hood Damper
55	WB34X20709		Cover, Stirrer
56	WB06X10126		Button-lock
57	WB06X10815		Coupler
58	WB34X20706		Cover, Mgt
60	WB02X11534		Filter, Air
61	WB39X10036		Guide, Vent Air
63	WB18X10494		Harness Wire
67	WB6X549		Holder-sensr
68	WB24X799		Gas Sensor
72	WB06X10882		Holder, Halogen Lamp
73	WB08X10067		Socket, Lamp
74	WB06X10884		Cover, Lamp
75	WB25X10026		Lamp, Halogen(50w)
76	WB06X10889		Hardware Asm
82	WB56X10446		Plate Mounting Asm
83	WB55X10968		Case Outer, Es
84	WB48X10072		Rack, Wire
85	WB02X11544		Charcoal Filter
86	WB07X20623		Grille, Vent
