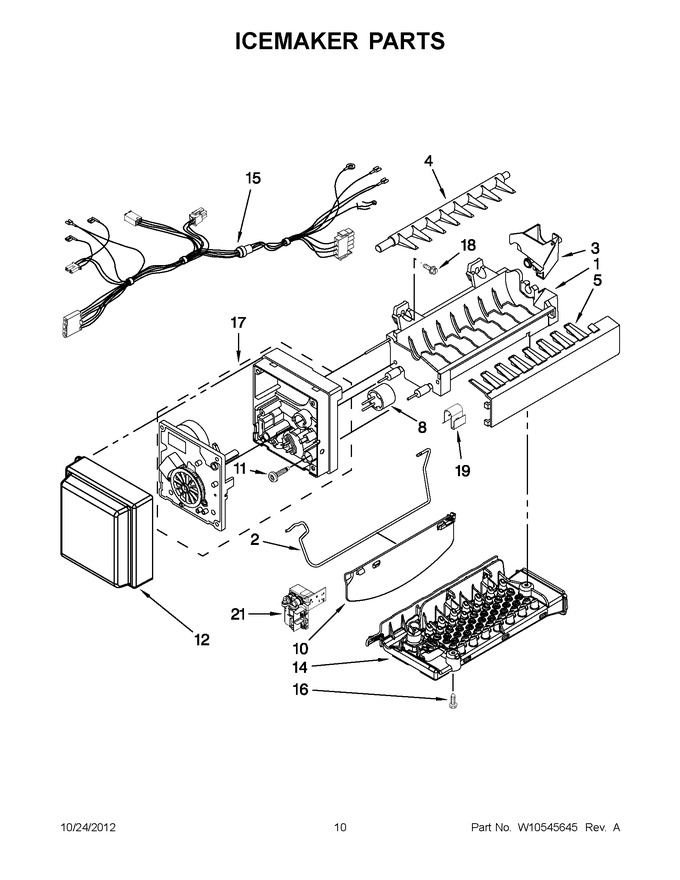

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10300025 | Assembly, Mold & Heater |  |
|||
| 2 | WPW10378254 | Arm, Shutoff | |
|||
| 3 | W10377998 | Cup, Fill | |
|||
| 4 | W10318914 | Ejector, Arm | |
|||
| 5 | WPW10122563 | Stripper, Ice | |
|||
| 8 | WP627985 | Thermostat (Replaces:W10290336) | |
|||
| 10 | WPW10351019 | Extension, Shutoff Arm | |
|||
| 11 | 8533917 | Screw | |
|||
| 12 | W10460383 | Cover, Front | |
|||
| 14 | WPW10312691 | Assembly, Impinger | |
|||
| 15 | W11029433 | Harness, Icemaker (Replaces:W10404016) | |
|||
| 16 | 67006425 | Screw (Replaces:12990511) | |
|||
| 17 | W10377147 | Assembly, Module | |
|||
| 18 | WPW10068250 | Screw | |
|||
| 19 | WP628379 | Clip, Thermal Fuse | |
|||
| 21 | WPW10498990 | Valve, Solenoid (Replaces:W10342318) | |
|||
| 100 | W10882923 | Assembly, Icemaker (Replaces:W10377151) | |
