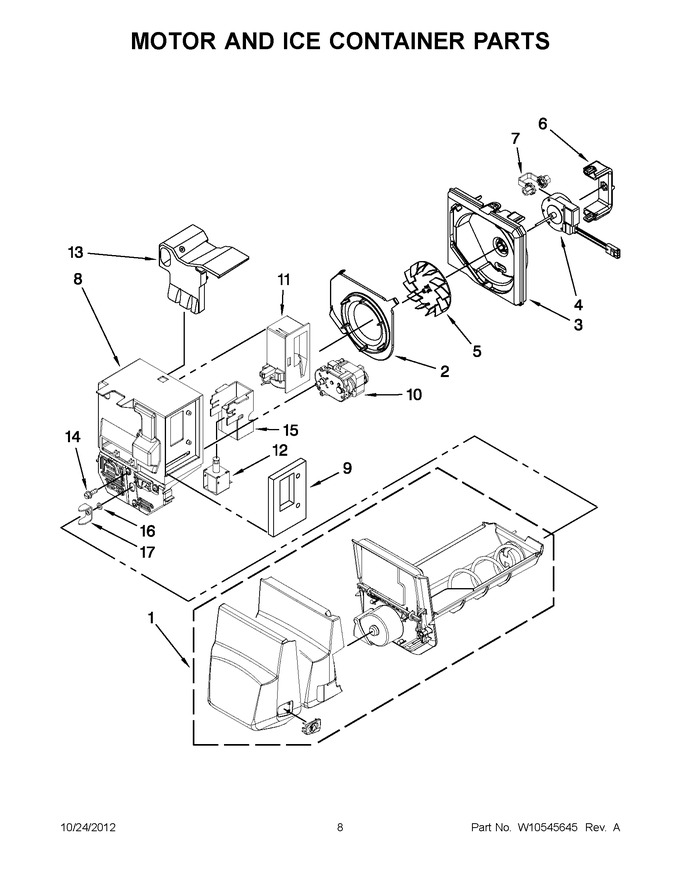

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11185686 | Assembly, Ice Bin (Replaces:W10536669) |  |
|||
| 2 | W10121282 | Inlet, Blower | |
|||
| 3 | W10309863 | Scroll, Blower | |
|||
| 4 | W11529245 | Motor, Fan (Replaces:W10308033) | |
|||
| 5 | WPW10123444K | Wheel, Blower (Replaces:W10123444) | |
|||
| 6 | W10165970 | Clip, Fan Motor (Replaces:12956603) | |
|||
| 7 | W10151687 | Grommet, Fan Motor | |
|||
| 8 | WPW10309864 | Divider, Ice Box | |
|||
| 9 | WP67006341 | Gasket, Damper (Replaces:12920001) | |
|||
| 10 | W11671282 | Motor, Auger (Replaces:W10309868) | |
|||
| 11 | WPW10196393 | Damper, Control | |
|||
| 12 | WPW10309866 | Assembly, Solenoid | |
|||
| 13 | W11676504 | Liner, Divider (Replaces:W10118612) | |
|||
| 14 | 67006425 | Screw (Replaces:12990511) | |
|||
| 15 | W10346971 | Bracket, Solenoid | |
|||
| 16 | W11378860 | Washer (Replaces:W10465946) | |
|||
| 17 | WP63052-2 | Yoke, Ice (dispenser) (Replaces:63052A001) | |
