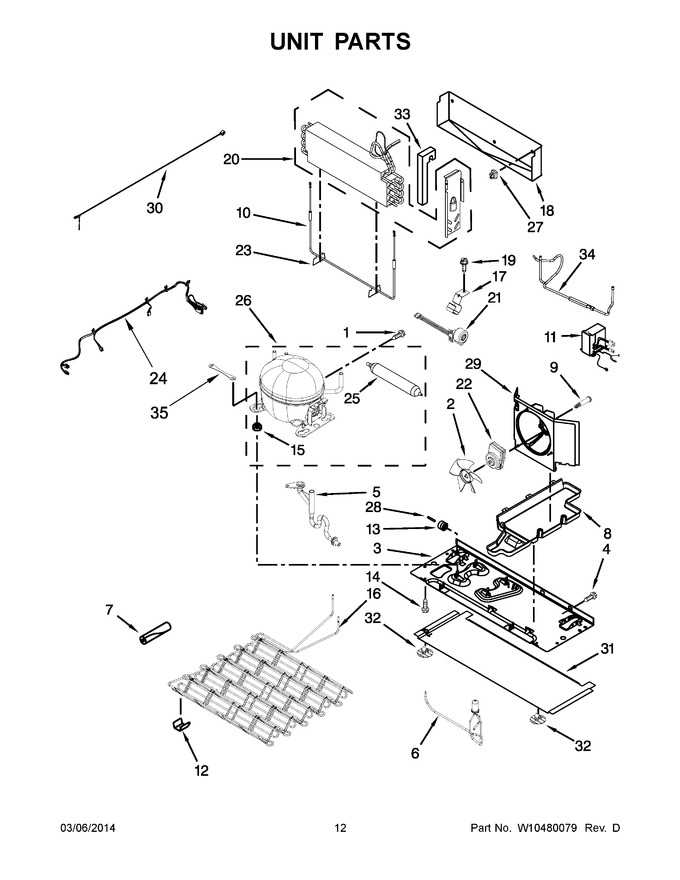

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10141625 | Screw |  |
|||
| 2 | W10156818 | Blade, Fan (Replaces:12825802) | |
|||
| 3 | W10570074 | Baseplate | |
|||
| 4 | 67006425 | Screw (Replaces:12990511) | |
|||
| 5 | W11661573 | Extension, Drain (Replaces:W10547687) | |
|||
| 6 | W11580434 | Assembly, Valve Body (Replaces:W10391081) | |
|||
| 7 | 2162499 | Sleeve (Replaces:W10303521) | |
|||
| 8 | W10703218 | Tray, Evaporator (Replaces:W10238584) | |
|||
| 9 | W10829281 | Screw (Replaces:W10622701) | |
|||
| 10 | WP12729128 | Heater, Defrost | |
|||
| 11 | W10893917 | Assembly, Inverter Box (Replaces:W10186719) | |
|||
| 12 | W10683556 | Clip, Condenser (Replaces:W10248621) | |
|||
| 13 | WP67005149 | Roller (Replaces:12477102) | |
|||
| 14 | W10709798 | Screw (Replaces:12992101) | |
|||
| 15 | WPW10169124 | Grommet, Compressor (Replaces:10835903SP) | |
|||
| 16 | W10559262 | Assembly, Condenser (Replaces:W10627646) | |
|||
| 17 | W10391376 | Bracket, Valve | |
|||
| 18 | W11408656 | Tray, Drip (Replaces:W10342573) | |
|||
| 19 | WPW10141645 | Screw | |
|||
| 20 | WPW10608485 | Evaporator (Replaces:W10248589) | |
|||
| 21 | WPW10364560 | Coil, 3 Way Valve | |
|||
| 22 | WP2188874 | Motor, Condenser | |
|||
| 23 | 10428101 | Clip, Heater | |
|||
| 24 | W10494224 | Harness, Unit | |
|||
| 25 | WPW10143759 | Drier (Replaces:W10286069) | |
|||
| 26 | W10276644 | Compressor (Replaces:W10168473) | |
|||
| 27 | W10651374 | Screw (Replaces:W10142294) | |
|||
| 28 | 67006434 | Axle, Roller (Replaces:12477202) | |
|||
| 29 | WPW10406719 | Shroud | |
|||
| 30 | WPW10494227 | Cord, Power | |
|||
| 31 | W10278140 | Cover, Bottom Unit | |
|||
| 32 | W10296661 | Clip, Bottom Cover | |
|||
| 33 | W10491355 | Gasket, Airdam | |
|||
| 34 | WPW10626970 | Assembly, Suction Tube | |
|||
| 35 | W10236396 | Strap, Compressor | |
|||
| NI | WP978025 | Valve, Access (Œ``) | |
|||
| 978026 | Valve, Access | |
||||
| 978027 | Valve, Access | |
||||
| 978028 | Valve, Access | |
||||
| 978029 | Valve, Access | |
||||
| 978030 | Valve, Access Ÿ``) | |
||||
| 876764 | Valve, Access | |
||||
| N/P | Refrigerant Charge 5.50 Oz. (r-134a) | |
