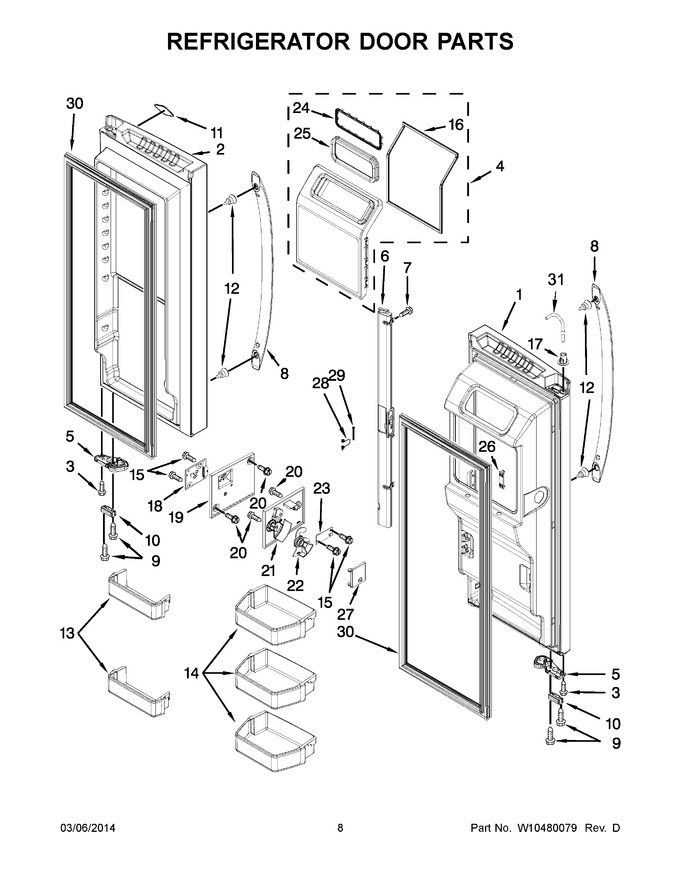

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | LW10417771 | Door, Left (white) (Replaces:W10417771) |  |
|||
| LW10417773 | Door, Left (stainless) (Replaces:W10417773) | |
||||
| LW10417772 | Door, Left (black) (Replaces:W10417772) | |
||||
| 2 | LW10341282 | Door, Right (black) (Replaces:W10341282) | |
|||
| LW10340316 | Door, Right (white) (Replaces:W10340316) | |
||||
| LW10341284 | Door, Right (stainless) (Replaces:W10341284) | |
||||
| 3 | WPW10464016 | Screw | |
|||
| 4 | WPW10549589 | Door, Ice | |
|||
| 5 | WPW10372267 | Latch, Door (right Hand) | |
|||
| W10857643 | Latch, Door (left Hand) (Replaces:W10355634) | |
||||
| 6 | W10846151 | Mullion, Door (white) (Replaces:W10407252) | |
|||
| W10698196 | Mullion, Door (black) (Replaces:W10407253) | |
||||
| W10806457 | Mullion, Door (grey) (Replaces:W10654762) | |
||||
| 7 | W11311945 | Screw (Replaces:12990204) | |
|||
| 8 | W10899551 | Handle, Door (brushed Aluminum) (Replaces:W10557410) | |
|||
| W10848410 | Handle, Door (white) (Replaces:W10357236) | |
||||
| WPW10398788 | Handle, Door (black) | |
||||
| 9 | WP98165 | Screw (Replaces:12990504) | |
|||
| 10 | W11687672 | Bumper, Door (white) (Replaces:W10407175) | |
|||
| W11573367 | Bumper, Door (grey) (Replaces:W10407188) | |
||||
| W10407187 | Bumper, Door (black) | |
||||
| 11 | WPW10393265 | Nameplate (grey) | |
|||
| WPW10391355 | Nameplate (white) | |
||||
| 12 | WPW10661886 | Screw (Replaces:W10460893) | |
|||
| 13 | WPW10539117 | Trivet, 2 Liter | |
|||
| 14 | WPW10705290 | Bucket, Gallon (Replaces:W10607728) | |
|||
| 15 | 2006254 | Screw (Replaces:489214) | |
|||
| 16 | W10347085 | Gasket, Ice Door | |
|||
| 17 | W10562834 | Clip-tube (Replaces:W10245516) | |
|||
| 18 | W10898445 | Board, Receiver Circuit (Replaces:W10518658) | |
|||
| 19 | W10258510 | Cover, Receiver | |
|||
| 20 | WP3400065 | Screw (stainless) | |
|||
| 21 | W10258502 | Cover, Emitter | |
|||
| 22 | W10258540 | Slide, Icemaker Shut Off | |
|||
| 23 | W10870822 | Board, Emitter Circuit (Replaces:W10518659) | |
|||
| 24 | WPW10400825 | Retainer,ice Chute | |
|||
| 25 | WPW10347087 | Gasket, Ice Chute | |
|||
| 26 | W11684620 | Vent, Thermistor (Replaces:W10646855) | |
|||
| 27 | WPW10258520 | Door, Emitter | |
|||
| 28 | WP2198635 | Spring, Door | |
|||
| 29 | WP2198634 | Pin, Door | |
|||
| 30 | W10407212 | Gasket, Door (grey) (Replaces:W10407146) | |
|||
| W10861004 | Gasket, Door (black) (Replaces:W10407145) | |
||||
| W11678967 | Gasket, Door (white) (Replaces:W10249089) | |
||||
| 31 | WPW10515777 | Tube, Water | |
