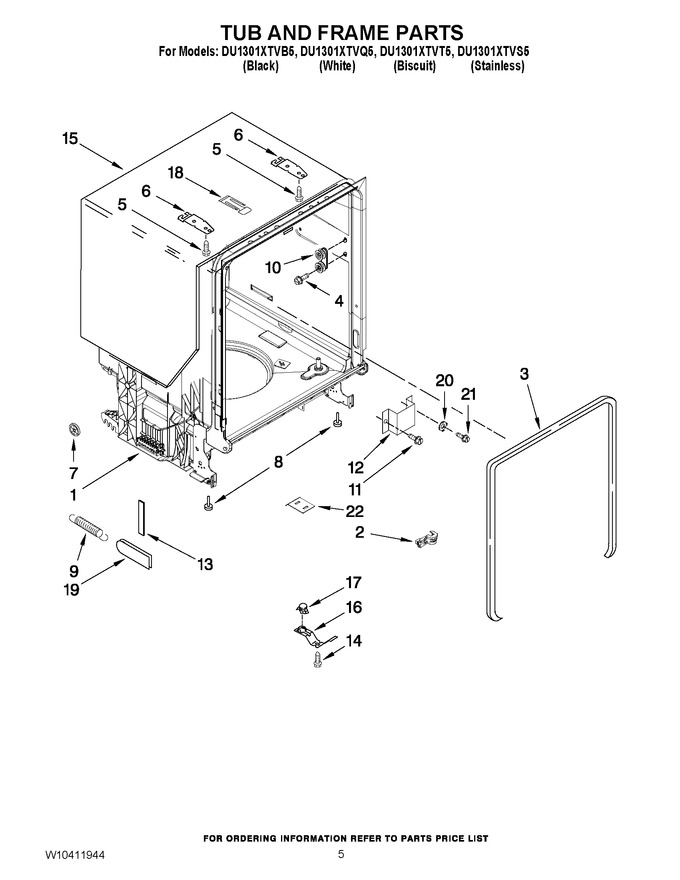

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10413848 | Tub Assembly (includes Heater Assembly) (Replaces:W10350148) |  |
|||
| 2 | W11384788 | Strain Relief (Replaces:8573061) | |
|||
| 3 | W10542314 | Door Seal (Replaces:W10284090) | |
|||
| 4 | W10348406 | Screw | |
|||
| 5 | W10165274 | Screw | |
|||
| 6 | WP8269145 | Bracket, Undercounter | |
|||
| 7 | WP8269831 | Wheel Leg | |
|||
| 8 | 8193716 | Leveler, Leg (Replaces:8524584) | |
|||
| 9 | WPW10337934 | Spring, Door Balance (Replaces:8524473) | |
|||
| 10 | WP8270016 | Wheel & Mount Assembly | |
|||
| 11 | WP3400892 | Screw | |
|||
| 12 | WP8268991 | Cover, Terminal Box | |
|||
| 13 | WP8268961 | Pad, Friction | |
|||
| 14 | WP304231 | Screw, | |
|||
| 15 | W11086533 | Shield, Sound Tub (Replaces:8573240) | |
|||
| 16 | W10539489 | Bracket, Thermostat (Replaces:3378595) | |
|||
| 17 | WP661566 | Thermostat | |
|||
| 18 | WP8580309 | Strike, Plate | |
|||
| 19 | WP8268990 | Bushing, Door Spring | |
|||
| 20 | WP3378128 | Washer | |
|||
| 21 | WP3400014 | Screw | |
|||
| 22 | W10321574 | Shield, Thermostat (Replaces:W10339699) | |
