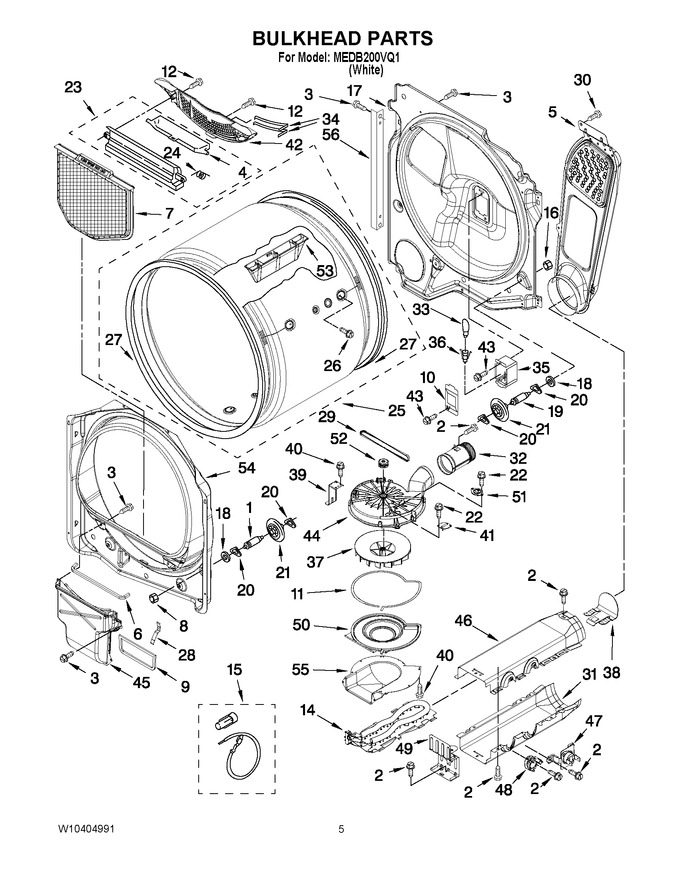

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WPW10359271 | Shaft, R.h. Thread | ||||
2 | WP90767 | Screw, 8-18 X 3/8 | ||||
3 | WP3390631 | Screw, 10-16 X 3/8 | ||||
4 | W11222846 | Door, Lint Screen (Replaces:3394984) | ||||
5 | 8544730 | Air Duct Assembly | ||||
6 | WP697813 | Seal, Outlet Housing | ||||
7 | W10120998 | Lint Screen (Replaces:W10049370) | ||||
8 | WPW10080210 | Nut, 3/8 X 16 (r.h.) (Replaces:3934666) | ||||
9 | WP8544721 | Seal, Lint Duct | ||||
10 | W11226088 | Lens, Drum Light (Replaces:3402841) | ||||
11 | WP8573068 | Seal, Blower Cover | ||||
12 | WP3387230 | Screw, 10-16 X 13/16 | ||||
14 | WP8544771 | Heater Element | ||||
15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) | ||||
16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces:W10001120) | ||||
17 | 8557236 | Bulkhead, Rear | ||||
18 | W11236646 | Washer, Support (Replaces:3387459) | ||||
19 | WPW10359272 | Shaft, L.h. Thread | ||||
20 | WPW10512946 | Ring, Tri (Replaces:690997) | ||||
21 | WPW10314173 | Roller, Support (Replaces:W10314171) | ||||
22 | 3350424 | Screw | ||||
23 | W11129408 | Outlet Housing Assembly (Replaces:3394985) | ||||
24 | WP3394986 | Spring, Lint Screen Door | ||||
25 | W10549615 | Complete Drum Assembly (Replaces:8557270) | ||||
26 | W10853898 | Screw, 8-16x 1/2 (Replaces:W10219342) | ||||
27 | 280140 | Seal, Drum (Replaces:W10116344) | ||||
28 | 8573070 | Clip, Lint Duct | ||||
29 | WP8544742 | Belt-blower | ||||
30 | WP693995 | Screw | ||||
31 | WP8544770 | Housing Tab Heater Box | ||||
32 | 8544760 | Exhaust Pipe | ||||
33 | WP22002263 | Bulb, Light (Replaces:3406124) | ||||
34 | WP3387223 | Electrode, Sensor | ||||
35 | 3977373 | Bracket, Drum Light | ||||
36 | W11222979 | Socket Assembly (Replaces:W10168632) | ||||
37 | WP8544737 | Wheel, Blower | ||||
38 | 8544776 | Flange, Heater Box | ||||
39 | 8544741 | Bracket, Housing Blower | ||||
40 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces:97787) | ||||
41 | WP3390719 | Thermal Fuse | ||||
42 | W11117302 | Grille, Outlet (Replaces:8544723) | ||||
43 | 3390647 | Screw, 8-18 X 1/2 | ||||
44 | WPW10256512 | Housing, Blower | ||||
45 | WP8544786 | Lint Duct Assembly | ||||
46 | WP8544769 | Housing Slot Heater Box | ||||
47 | 280148 | Thermal Cut-off (includes Illus. 48) | ||||
48 | WP8557403 | Thermister-hc Stat | ||||
49 | 8544729 | Bracket, Heater Box | ||||
50 | WP8544719 | Blower, Cover (includes No.11) | ||||
51 | WP8577274 | Thermistor | ||||
52 | WP8544739 | Pulley, Blower | ||||
53 | 8565688 | Baffle, Drum | ||||
54 | WP8557244 | Bulkhead Front | ||||
55 | WP8544718 | Duct, Inlet Blower | ||||
56 | 8558163 | Channel, Rear Bulkhead |
